Composite fireproof glass for curtain walls and fire doors

PRODUCT DETAILS

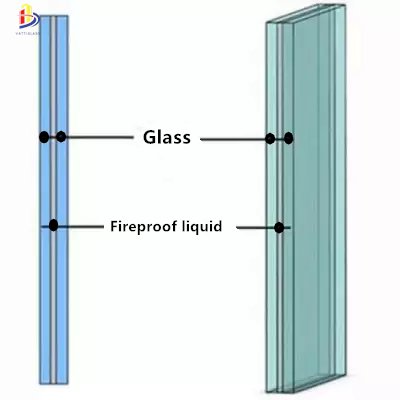

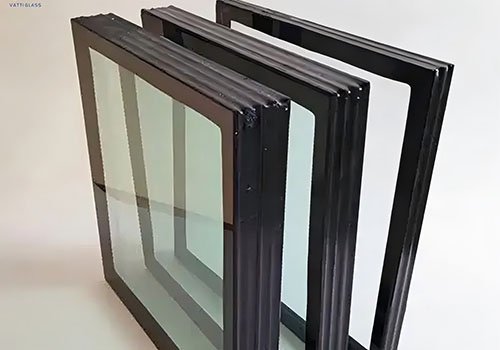

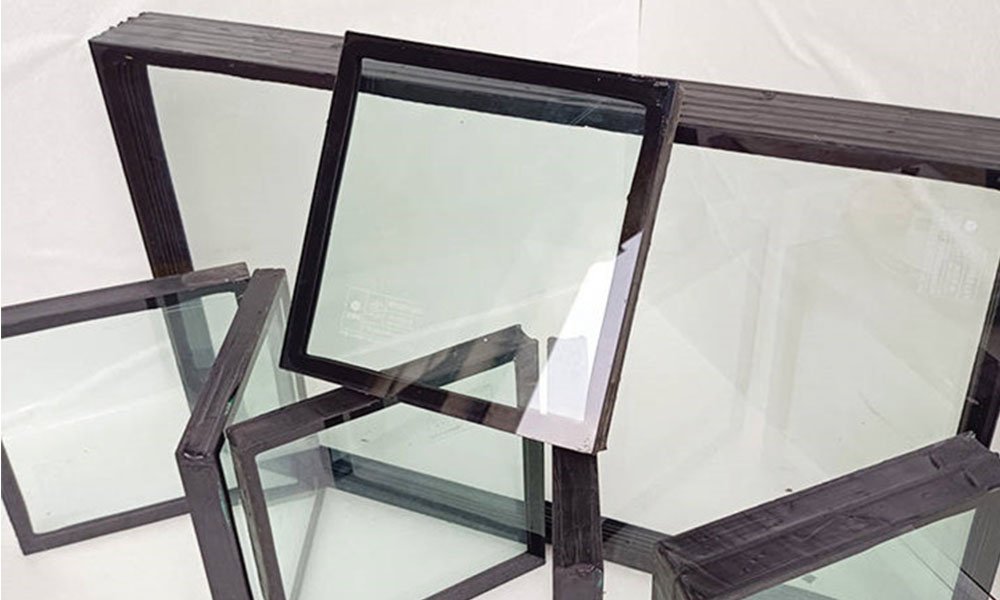

Composite fireproof glass is a type of fire-resistant material used to control the spread of fire or isolate smoke. It belongs to the insulation type fire-resistant glass and can simultaneously meet the requirements of fire integrity and fire insulation. Its structure can be divided into two or more layers of glass composite, or a combination of glass and organic materials. Common products include sandwich composite, hollow fireproof glass, etc. Compared to single piece fire-resistant glass, composite fire-resistant glass has better insulation and sound insulation effects.

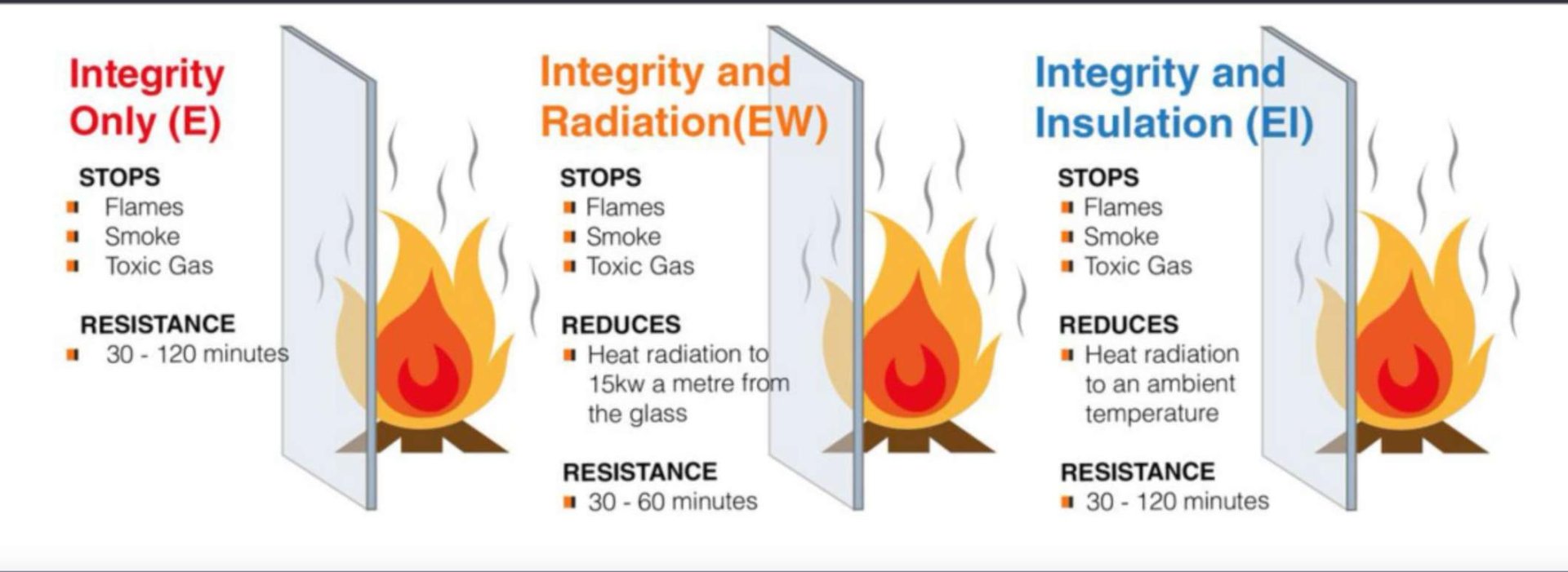

Performance and Functionality


E-class fireproof glass

5G+2F+5G=12mm thick

6G+2F+6G=14mm thick

6G+3F+6G=15mm thick

8G+3F+8G=19mm thick

Other structure and thickness is possible

EW-class fireproof glass

6G+2F+6G=14mm thick

6G+3F+6G=15mm thick



Other structure and thickness is possible

EI-class fireproof glass

5G+5F+5G=15mm

5G+2F+5G+3F+5G=20mm

5G+5F+5G+5F+5G=25mm

6G+5F+6G+5F+6G=28mm 6G+6F+6G+6F+6G=30mm 5G+5F+5G+5F+5G+5F+5G=35mm 5G+6F+5G+6F+5G+6F+5G=38mm 8G+5F+8G+5F+8G=34mm

5G+5F+5G+5F+5G+5F+5G+5F+5G=45mm 5G+5F+5G+5F+5G+5F+5G+5F+5G+5F+5G=55mm

30+5AR+30=65mm 35mm+5AR+35mm=75mm

Other structure and thickness is possible

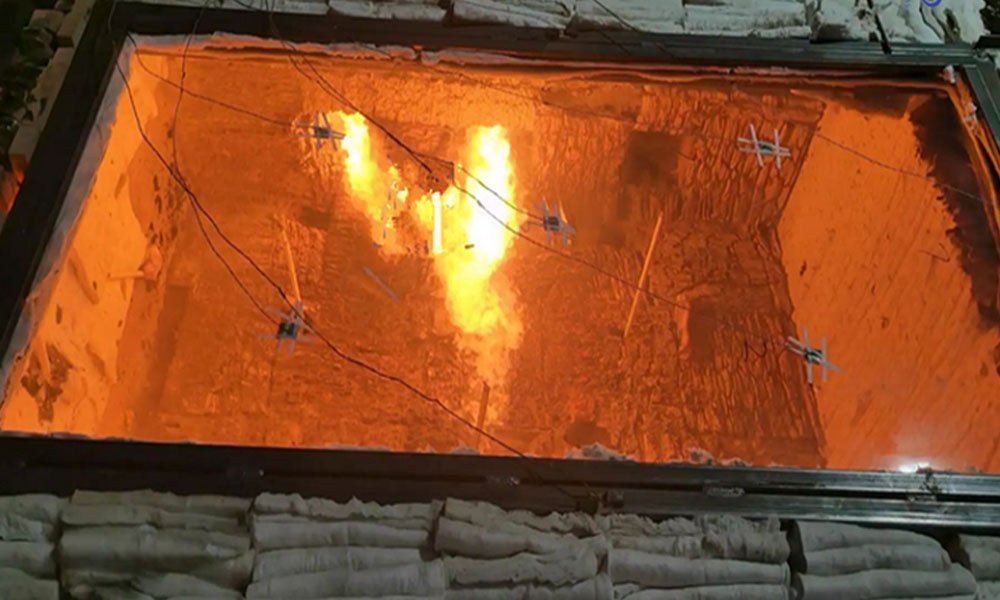

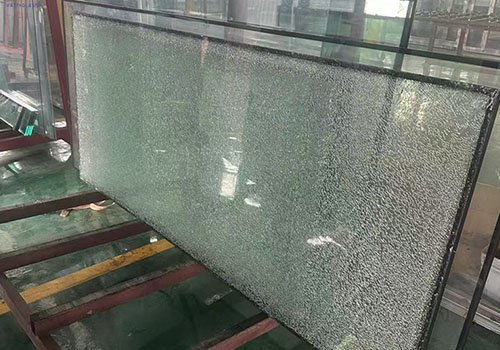

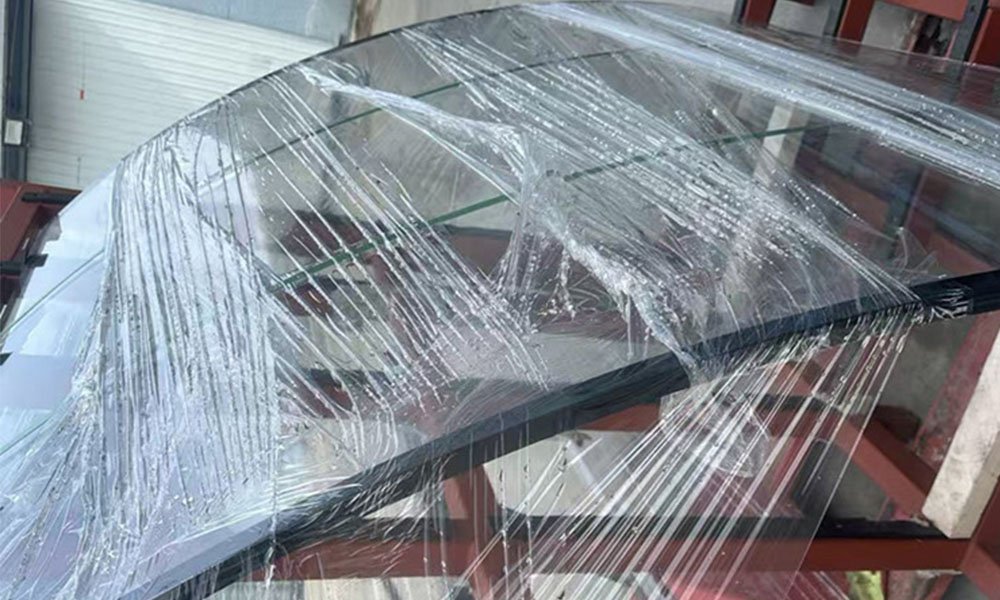

In addition to its high-quality fire resistance performance,even if fireproof glass breaks, glass fragments will not fall off and hurt people,very safe!

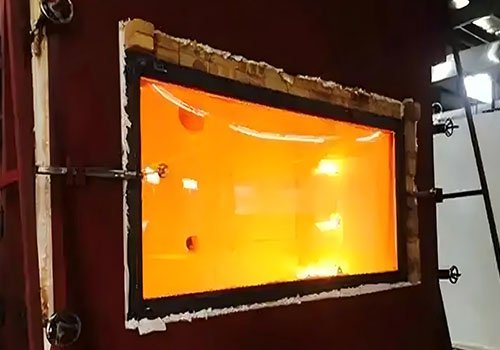

Changes in Nano Silicon Fireproof Liquid

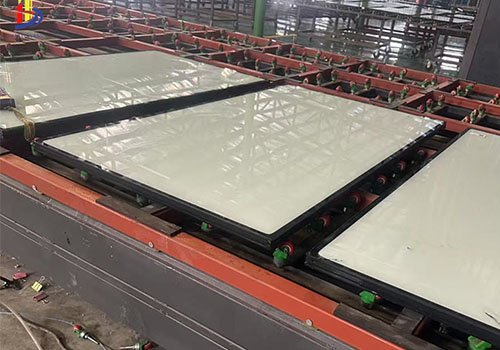

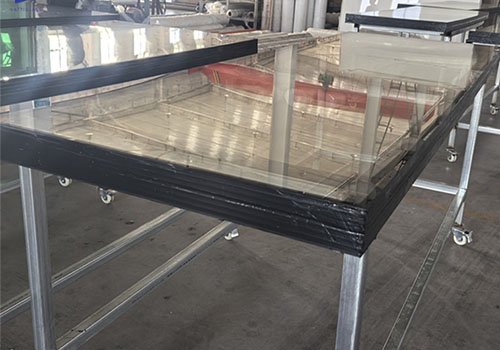

Before and after constant temperature curing of nano silicon fireproof liquid

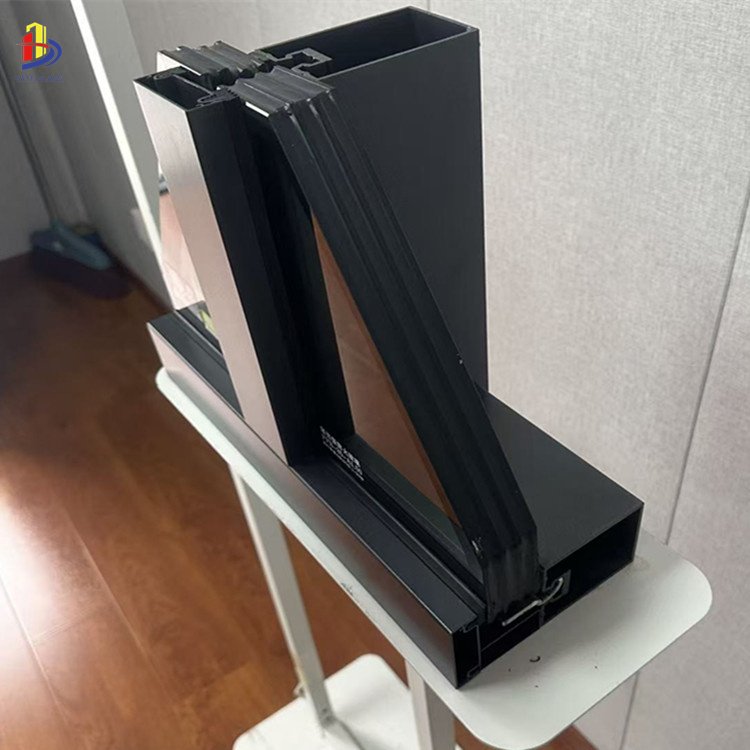

If project need,we can also provide framework

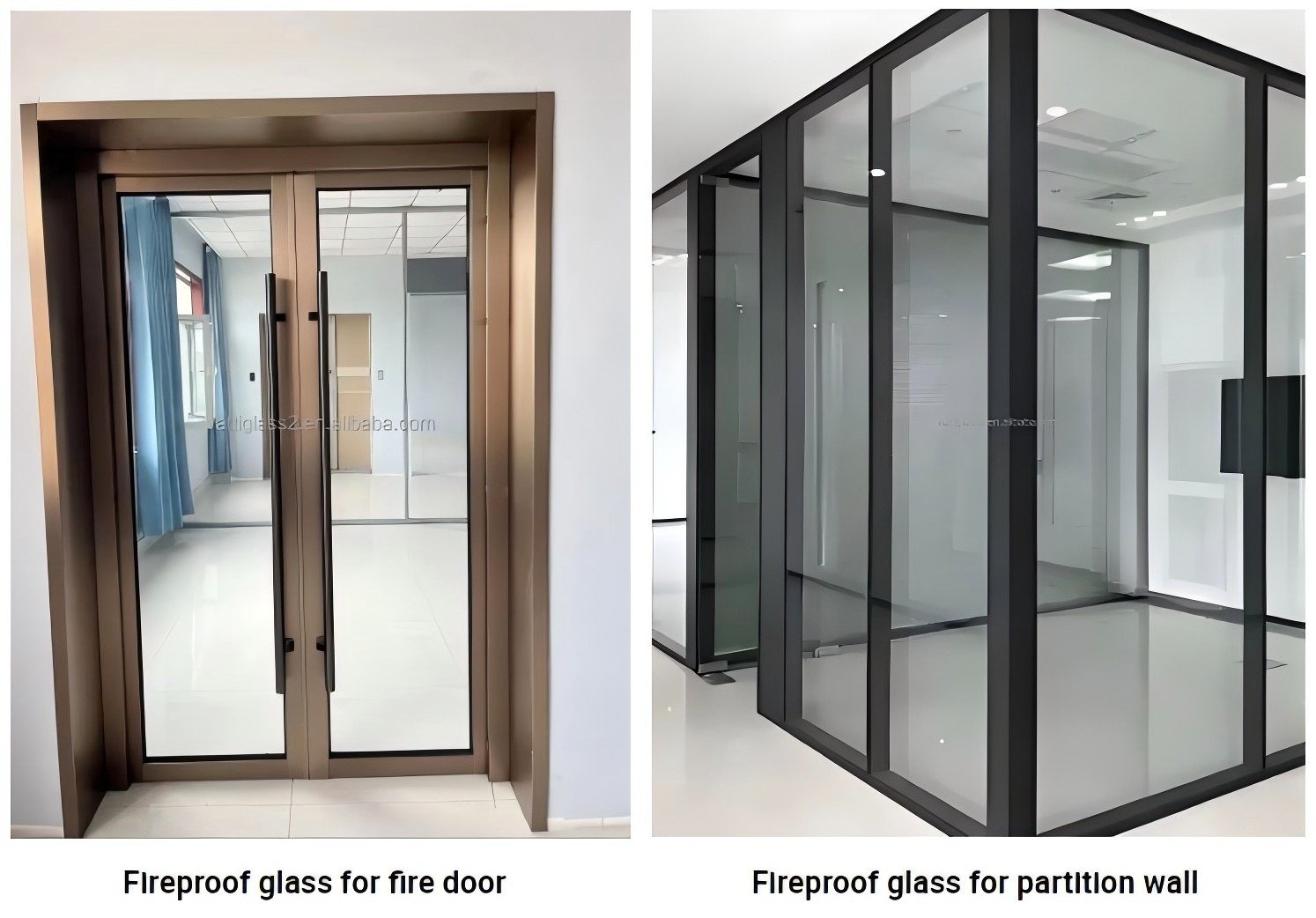

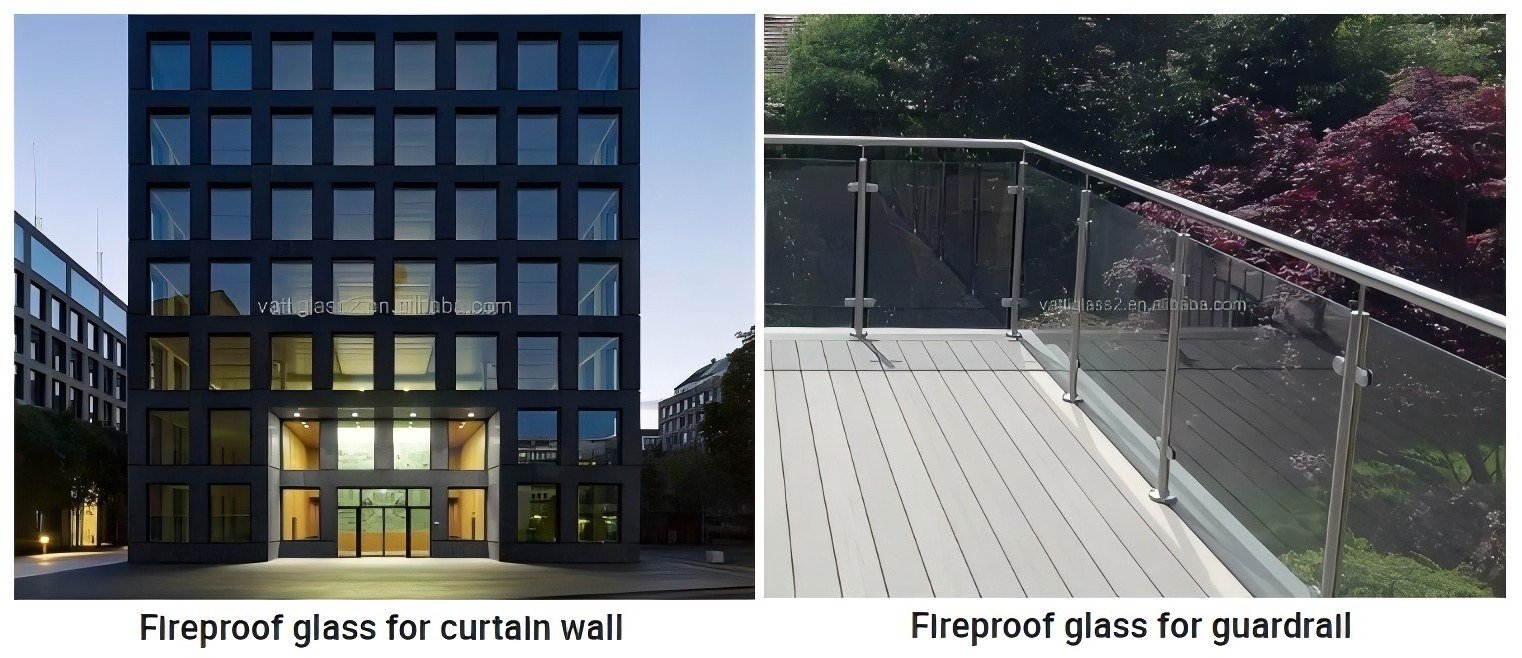

Application scenarios

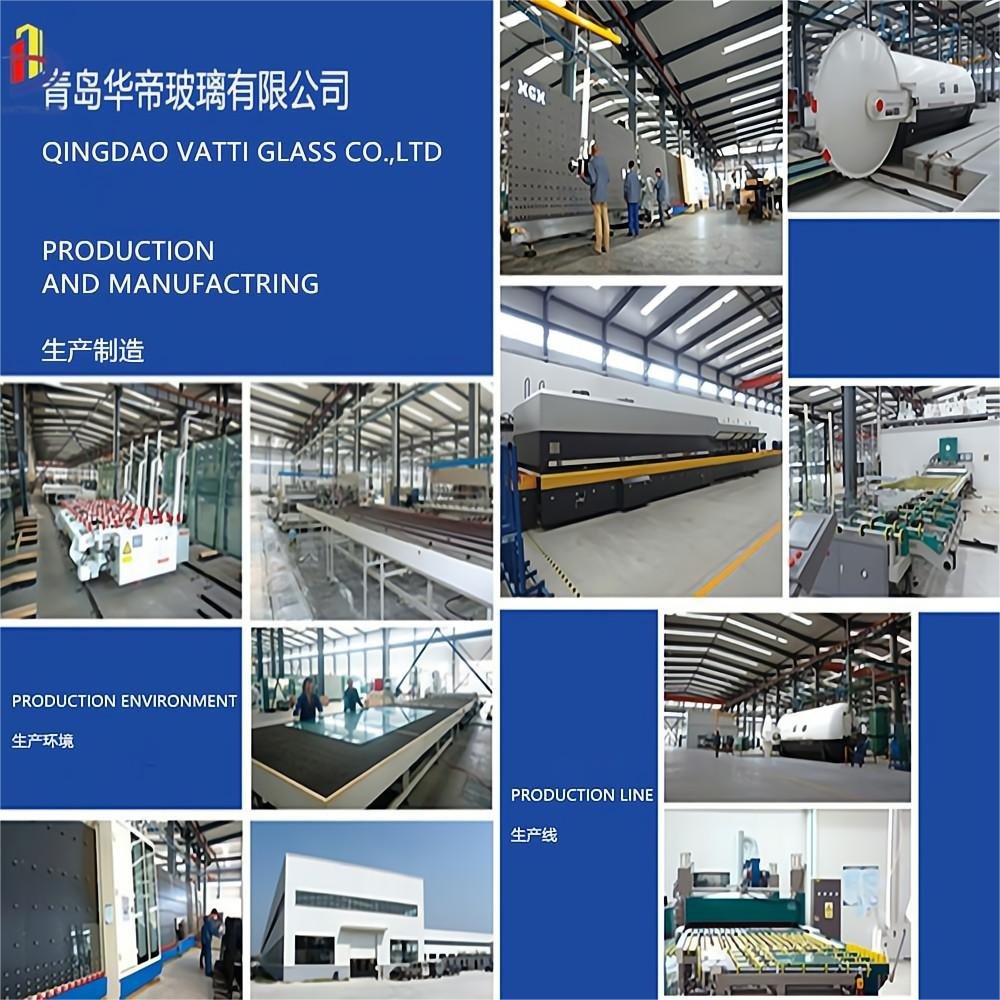

Company customization capability

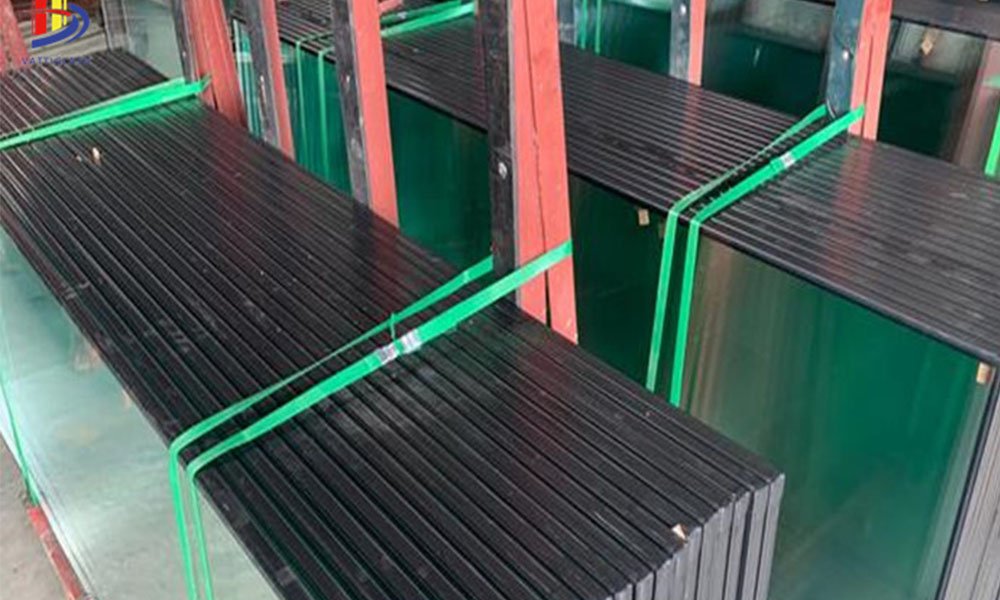

The tempered glass used for fire-resistant glass has passed ISO9001 and CE certification.

Packaging and shipping

Glass is separated from glass by wooden pads or pearl cotton, and all glass is packed into specially customized safety exit wooden boxes,ensure that every customer receives glass in good condition.

We maintain good cooperation with internationally renowned courier companies and reputable freight forwarders all time, ensuring timely and safe delivery for every customer.

FAQs

1.What materials are used for this product?

Tempered glass,structural adhesive, butyl rubber strip, nano silicon fireproof liquid,etc.


2.What is the MOQ for this product?

1 sqms,small orders also enjoy our high-quality service.


3.What sizes are available for this product?

Custom sizes are supported.


4.What payment methods are accepted?

Payment terms include T/T, L/C, Paypal, and Western Union,etc.


5.Can you support OEM/ODM services?

Yes,we can.


6.What quality certifications does this product have?

ISO-9001,CE Certification
