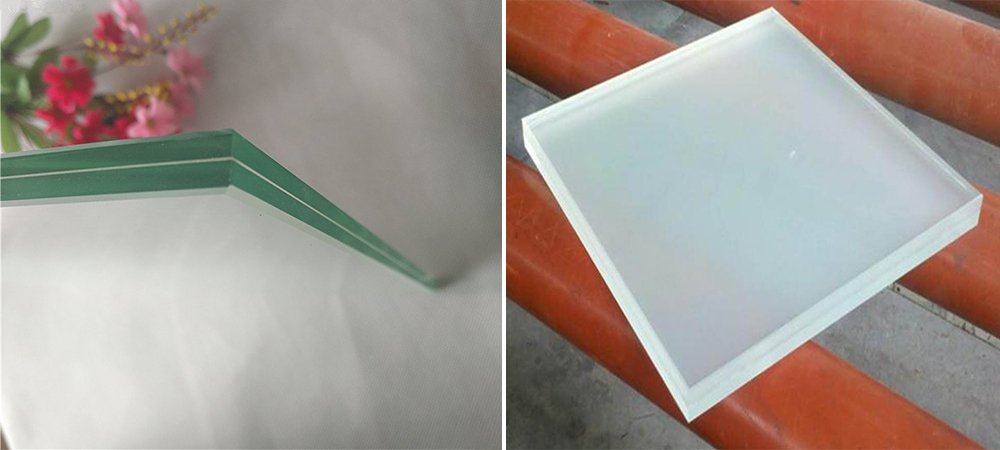

Acid Etched Laminated Glass is a safety glazing product manufactured by laminating two or more glass panes with a PVB or SGP interlayer. The glass surface is treated by acid etching to produce a uniform matte finish, and the glass can be tempered before lamination according to the required product specification.
Acid Etched Laminated Glass is not simply a frosted glass product with an additional safety layer. Its performance comes from combining three different glass technologies, each addressing a specific requirement.

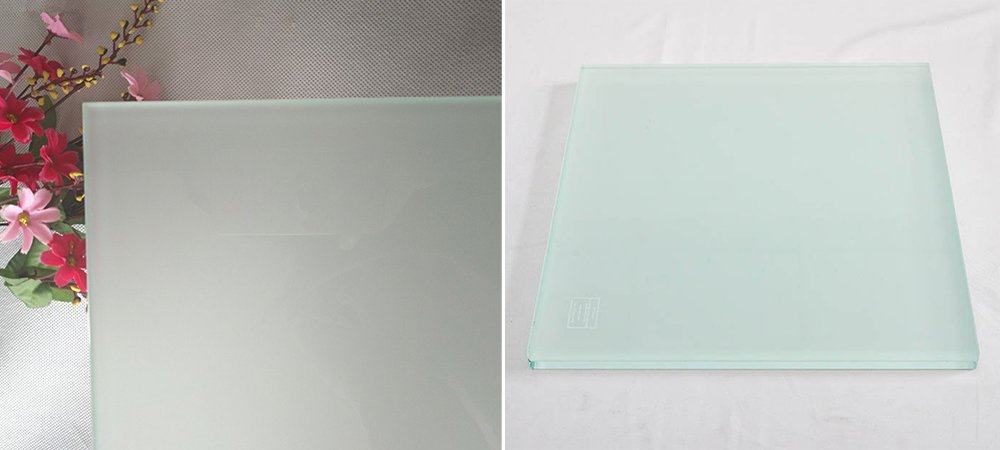

Acid etching chemically modifies the glass surface to create a uniform matte finish. Unlike transparent glass, the etched surface diffuses light and reduces direct visual transmission. This provides visual privacy, soft light diffusion, reduced direct glare and a refined surface suitable for decorative architectural applications and contemporary interior design. The degree and pattern of etching can be selected according to the required appearance and privacy level.
Tempering thermally strengthens the glass and improves its resistance to mechanical stress and temperature changes compared with annealed glass of the same thickness. This makes tempered glass suitable for glazing exposed to frequent contact, mechanical loads, temperature variation and demanding architectural conditions. The glass must generally undergo cutting, drilling and other dimensional processing before tempering because conventional cutting or drilling is not normally possible after the glass has been tempered.
During lamination, an interlayer such as PVB or SGP is placed between glass panes and bonded under controlled heat and pressure. If the glass breaks, the interlayer helps retain the fractured glass fragments rather than allowing them to fall freely. This makes laminated construction an important safety feature for many architectural glazing applications.
Together, acid etching, tempering and lamination create a glazing configuration that addresses privacy, light diffusion, mechanical strength, enhanced post-breakage safety and design flexibility at the same time.
Privacy does not always require an opaque surface.
Acid Etched Laminated Glass provides an intermediate solution between fully transparent glazing and completely opaque materials. Its matte surface scatters incoming light, reducing direct visibility while allowing a degree of natural light transmission.
This makes it particularly useful in spaces where daylight and visual separation need to coexist.
The etched surface obscures direct views and creates a softer visual boundary between spaces. Depending on the etching treatment, the glass can provide different levels of visual obscurity.
Instead of completely blocking daylight, the acid-etched surface distributes transmitted light more softly. This can help create brighter, more visually comfortable interior environments.
The uniform matte appearance works well with minimalist and contemporary architecture. It can also be combined with clear or ultra-clear glass to create different visual effects.
The value of acid-etched glass extends beyond privacy. Its matte surface can become part of the architectural design itself.
A consistent etched finish provides a clean and understated appearance for doors, partitions and interior glazing.
Selected areas of the glass can be etched while other areas remain transparent. This can create visual zoning without completely separating the spaces.
Geometric patterns, decorative elements and other surface designs can be incorporated according to project requirements, subject to manufacturing feasibility.
Custom graphics or branding elements can be integrated into suitable glass designs for commercial interiors, hotels, retail environments and corporate spaces.
Clear glass, ultra-clear glass and compatible tinted glass can be considered to achieve different levels of transparency, color and visual contrast.
The result is a glass surface that can function simultaneously as a privacy element, decorative feature and architectural material.
Acid Etched Laminated Glass is a strong option when a project needs more than simple transparency or basic frosting.
Privacy with daylight
Suitable when users need visual separation without completely eliminating natural light.
A refined matte appearance
The etched surface provides a smooth, contemporary architectural aesthetic.
Enhanced safety
Tempered and laminated construction can provide additional safety characteristics compared with conventional annealed glass, subject to the selected configuration.
Design flexibility
Different glass types, interlayers, dimensions, shapes and surface treatments can be combined.
Custom architectural glazing
Suitable for projects requiring non-standard dimensions, holes, cut-outs or shaped glass.
A project requires completely opaque privacy, maximum transparency, specialized structural performance or other properties outside the intended performance range of acid-etched laminated glass.
For safety-critical, overhead or load-bearing applications, the glass structure should be selected and verified based on the project’s engineering requirements rather than by appearance alone.
Acid Etched Laminated Glass can be configured according to the required appearance, safety performance, dimensions and installation system.
· Clear glass
· Ultra-clear / low-iron glass
· Frosted or compatible specialty glass
· Selected tinted glass options
· Customized glass thickness
· PVB interlayer
· SGP interlayer
· Clear interlayer
· Milky white or translucent interlayer
· Other compatible interlayer solutions according to project requirements
· Full-surface acid etching
· Partial acid etching
· Customized surface effects
· Decorative patterns
· Graphic or logo elements
· Standard rectangular panels
· Customized dimensions
· Irregular and shaped glass
· Project-specific panel sizes
VATTI can provide additional processing according to the final glazing design, including:
· Precision cutting
· Edge grinding and polishing
· CNC shaping
· Drilling
· Cut-outs
· Tempering
· Lamination
· Other customized processing requirements
All dimensions and processing requirements should be confirmed before production to ensure compatibility with the selected tempered laminated glass configuration.
For acid-etched laminated glass, appearance quality is closely related to both the surface treatment and the final laminated structure. Quality control therefore needs to cover more than basic dimensional inspection.
The etched surface can be checked for:
· Surface uniformity
· Consistency of the matte appearance
· Visible surface defects
· Pattern accuracy where applicable
· Edge condition
· Overall visual quality
Before final assembly, processed glass can be inspected for:
· Dimensions and tolerances
· Edge quality
· Hole position
· Cut-out accuracy
· Flatness
· Shape conformity
Tempered glass can be evaluated according to the applicable requirements for:
· Breakage characteristics
· Mechanical performance
· Thermal shock resistance
· Surface and edge condition
The laminated assembly is inspected for potential issues such as:
· Air bubbles
· Foreign particles
· Edge defects
· Interlayer alignment
· Delamination
· Overall bonding appearance
Quality requirements can be established according to the destination market, project specifications and applicable standards.
Item | Available Options / Reference |
Product Type | Acid Etched Tempered Laminated Glass |
Glass Type | Clear, Ultra-Clear / Low-Iron, Frosted and selected specialty glass |
Glass Structure | Single or multiple laminated glass configurations |
Interlayer | PVB, SGP and other compatible options |
Interlayer Color | Clear, Milky White or customized options |
Etched Surface | Full surface, partial surface or customized patterns |
Typical PVB Structures | 3+0.38PVB+3mm, 4+0.38PVB+3mm, 5+0.38PVB+5mm, 6+0.38PVB+6mm |
Other PVB Structures | 3+0.76PVB+4mm, 4+0.76PVB+4mm, 5+0.76PVB+5mm, 6+0.76PVB+6mm |
Heavy Glass Options | 15+1.52PVB+15mm and other multi-layer configurations |
Size | From small customized panels to large-format architectural glass |
Reference Sizes | 100×100mm, 300×300mm, 500×500mm, 1000×1000mm, 1830×2440mm, 2440×3660mm |
Processing | Cutting, edging, polishing, CNC shaping, drilling, tempering, lamination |
Application | Doors, partitions, architectural glazing, selected floor and interior applications |
The combination of privacy, surface aesthetics and safety characteristics makes this glass suitable for a range of architectural environments.
Used to separate offices, meeting rooms and commercial spaces while maintaining a degree of daylight transmission.
Suitable for interior and selected architectural doors where privacy and a refined matte appearance are required.
Can be incorporated into bathrooms, room dividers, reception areas and decorative glazing where privacy is an important design consideration.
Useful for storefront interiors, display areas, consultation rooms and architectural features requiring a combination of visual separation and contemporary aesthetics.
Acid-etched laminated panels can be used as decorative or privacy-oriented elements in large interior glazing systems, subject to the required structural design.
Specially engineered tempered laminated glass configurations can be considered for walkable or elevated glazing applications. These applications require appropriate structural calculations, load verification, glass build-up selection and compliance with applicable safety standards.

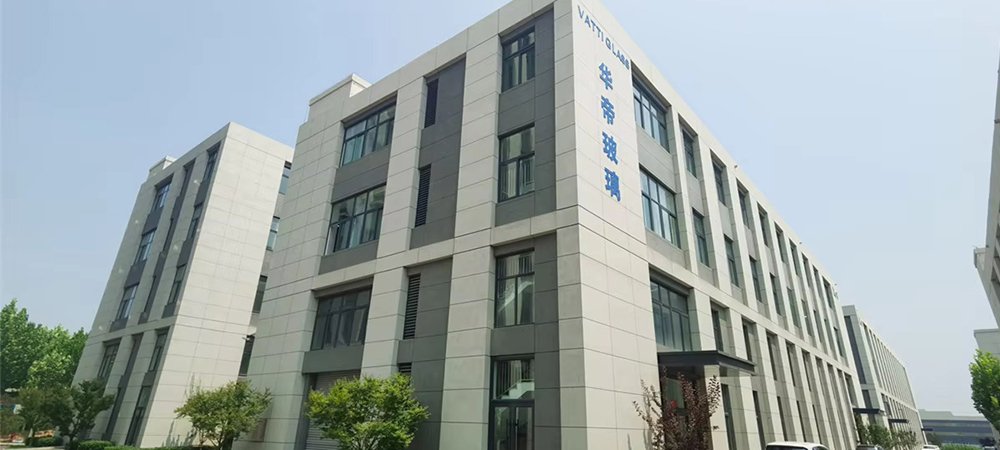

VATTI combines glass processing, tempering and lamination capabilities to support customized architectural glass requirements from a single manufacturing source.
Our production capabilities include precision cutting, edging, CNC processing, drilling, tempering and lamination, allowing different processing requirements to be coordinated within one project.
With extensive experience in glass manufacturing and international export, VATTI supplies glass products to customers in more than 80 countries.
Our equipment includes glass cutting machines, edging equipment, tempering furnaces, autoclaves, CNC machines, waterjet equipment and drilling machines.
We support project-specific requirements for dimensions, shapes, glass structures, interlayers, surface effects, holes, cut-outs and other processing specifications.
Glass can be inspected for appearance, dimensions, flatness, processing accuracy, tempering quality and lamination performance before shipment.
Customized strong wooden cases and protective packaging are used to reduce the risk of damage during handling and transportation.
Our professional sales and technical teams can assist with product selection, drawings, processing requirements and customized glass solutions.
Our location near Qingdao’s major container ports supports convenient loading and international shipment coordination.
They can be visible, especially on frequently touched areas or in locations exposed to water and cleaning products. The matte surface may require more careful cleaning than smooth clear glass. Use a soft cloth and a mild, non-abrasive cleaner; avoid harsh chemicals, metal scrapers and abrasive pads that may damage the surface.
Yes, but the glass must be designed for the selected hinges, clamps, patch fittings or sliding hardware. Hole locations, edge distances, glass thickness, total weight and hardware load limits need to be confirmed before tempering and lamination. Not every laminated glass build-up is suitable for every frameless door system.
No. Cutting, drilling, notching and most edge modifications must be completed before tempering and final lamination. If the site dimensions are not confirmed, the glass should not be released for production until the opening size, hardware positions and installation tolerances have been checked.
PVB is commonly selected for interior laminated glass and applications where standard safety performance and cost efficiency are important. SGP may be considered when the project requires higher stiffness, better edge stability or reduced deflection. The choice should be based on panel size, support conditions, exposure, loading and applicable standards rather than appearance alone.
The panels can be produced to achieve a consistent overall appearance, but slight visual variation may occur due to glass batch, lighting, viewing angle, surface treatment and production conditions. For projects with strict appearance requirements, a sample or approved reference panel should be confirmed before mass production.
Not necessarily. Acid etching reduces direct visibility, but the privacy level depends on the etching density, lighting on both sides, viewing distance and whether shadows or silhouettes are acceptable. If the project requires complete visual blocking, an opaque interlayer, printed design or another privacy solution may be more appropriate.
Please provide the glass dimensions and quantity, glass thickness or required build-up, PVB or SGP preference, etched pattern or finish, edge processing, holes or cut-outs, application, delivery destination and any applicable standards. Drawings or hardware details are also helpful for doors, partitions, balustrades and custom-shaped panels.
The typical sequence is glass cutting, edge processing and drilling, surface etching, inspection, tempering, lamination, final quality inspection and protective packing. The exact sequence may vary according to the selected glass structure and surface treatment. All processing details should be finalized before tempering because later dimensional changes are generally not possible.
