Anti-Skid Floor Glass is our laminated glass solution for walkable architectural surfaces, combining reliable slip resistance, structural safety, and refined visual appeal. It is manufactured with multiple glass plies and polymer interlayers, with at least one glass surface treated with an anti-skid finish to provide enhanced traction under pedestrian traffic.
Anti-Skid Floor Glass is a laminated safety-glass system specifically engineered for walkable architectural surfaces. It combines a slip-resistant glass surface with a multi-layer laminated structure to provide controlled traction and enhanced safety.
Unlike conventional glass flooring with a smooth exposed surface, Anti-Skid Floor Glass uses a processed glass ply with a defined texture or anti-skid treatment. The glass plies are then laminated with PVB, SGP, or another specified interlayer under controlled heat and pressure to form a firmly bonded glazing unit.
The product consists of three clearly defined functional elements:
· Anti-skid surface: provides increased traction for pedestrian traffic.
· Laminated structure: helps retain glass fragments within the interlayer if breakage occurs and supports the safety performance of the glazing assembly.
· Glass configuration: determines the structural capacity and must be designed according to the project requirements.
The final glass structure must be specified based on panel dimensions, support conditions, design loads, fixing method, installation details, and applicable building requirements. A standard thickness cannot be applied universally to every glass flooring project.
Glass naturally has a smooth, relatively hard surface, which is visually attractive but does not inherently provide the same surface texture as conventional flooring materials.
This becomes more important when glass is used as a walkable surface.
An anti-skid surface introduces controlled texture or surface characteristics that can provide better interaction between footwear and the glass.
Water can alter the friction conditions between a shoe and a smooth surface. For areas exposed to rain, splashing, condensation, or routine washing, an appropriately designed anti-skid surface can help address this concern.
Walking on transparent glass can create a different user experience from walking on conventional flooring. A defined surface texture can provide a more intentional walking surface while maintaining the architectural character of glass.
Glass floors in public buildings, tourist attractions, commercial spaces, and circulation areas may experience repeated pedestrian traffic. Surface design therefore needs to be considered alongside the structural glass specification.
The challenge in architectural glass flooring is not simply to create the roughest possible surface. The surface needs to provide appropriate traction while maintaining the visual qualities expected from glass.

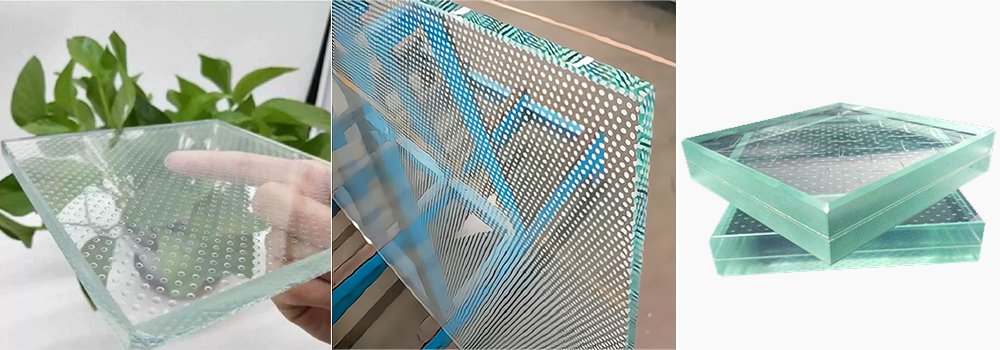

Depending on the project, Anti-Skid Floor Glass can incorporate different surface effects, textures, or patterns.
A relatively fine surface texture can provide additional grip while maintaining a cleaner architectural appearance.
Patterns can combine functional surface treatment with decorative requirements, making the flooring part of the overall interior or architectural design.
Ceramic frit or suitable printed treatments can be incorporated where a project requires both visual differentiation and a defined walking surface.
Anti-skid treatment does not necessarily need to cover every visible area in the same way. Pattern, texture, and treated areas can be developed according to the intended design.
For transparent flooring projects, surface texture, light transmission, visual clarity, and maintenance requirements should be evaluated together rather than optimizing one characteristic in isolation.

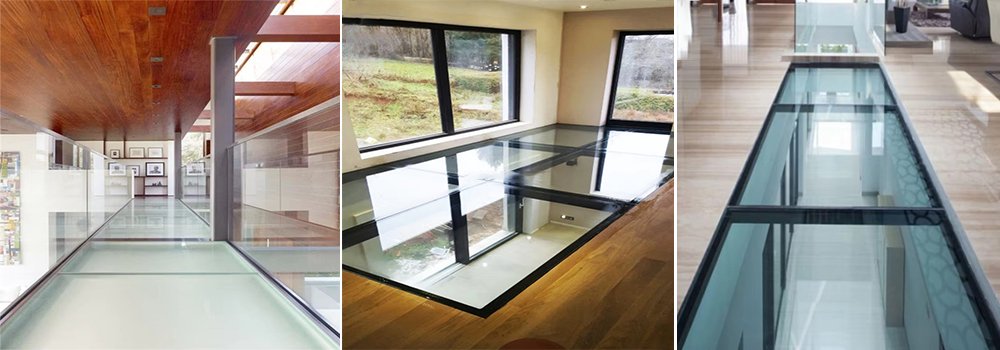

Anti-Skid Floor Glass can be configured for different walking surfaces within residential interiors, with the design emphasis changing according to the application.
Residential glass stair applications require consistent foot placement and a comfortable, controlled walking surface. Anti-skid treatment can be applied to the tread area, while edge processing and laminated construction can be customized to suit the staircase design and interior installation requirements.
For residential glass walkways, regular household movement makes surface traction an important consideration. Laminated construction can be combined with a customized anti-skid surface for transparent circulation areas such as interior corridors, connecting passages, and open-plan living spaces.
Interior platforms, raised floors, and viewing areas in residential spaces can use anti-skid glass to create a more controlled walking surface while retaining the visual openness of transparent flooring. The glass can be designed according to the support structure, room layout, and overall interior style.
Architectural floor glass rarely follows a single standard configuration. VATTI can customize the glass according to project drawings and application requirements.
The surface effect can be customized according to:
· Anti-skid texture
· Pattern
· Decorative treatment
· Surface coverage
· Visual requirements

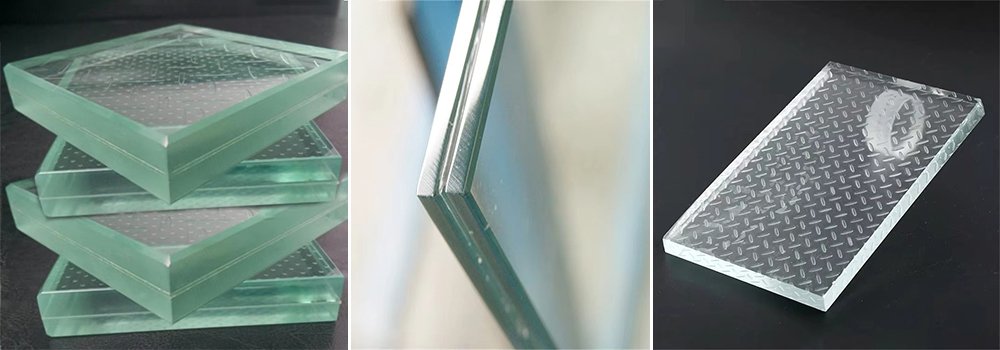

Available configurations can include different combinations of:
· Clear glass
· Ultra-clear glass
· Anti-skid glass
· PVB interlayers
· SGP interlayers
· Multiple glass plies
Custom fabrication can include:
· Precision cutting
· Custom shapes
· Drilled holes
· Edge polishing
· CNC edge processing
· Project-specific dimensions
Typical reference sizes may include 300 × 300 mm, 500 × 500 mm, 1000 × 1000 mm, and 2000 × 1000 mm, while customized dimensions can be produced according to the project design and manufacturing limitations.

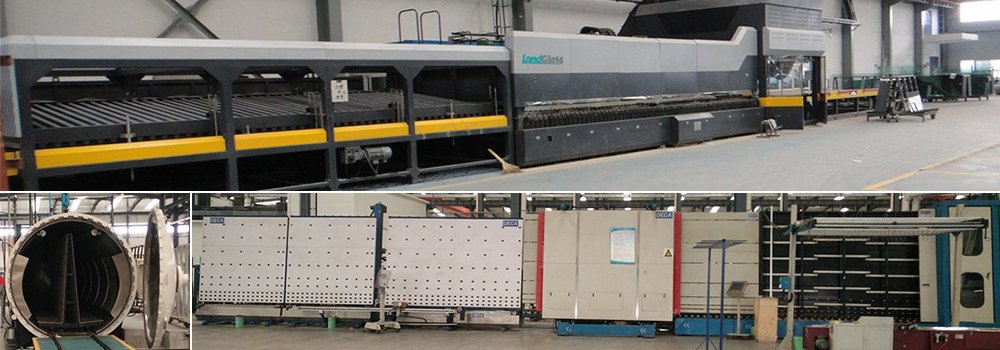

The production of Anti-Skid Floor Glass involves both precision glass processing and controlled lamination.
Glass type, thickness, optical requirements, and surface characteristics are reviewed according to the project specification.
Glass sheets are cut to the required dimensions with controlled dimensional tolerances.
Edges can be polished, shaped, or CNC processed according to the installation requirements.
The selected glass ply receives the specified anti-skid surface treatment or decorative surface effect.
Where required by the glass configuration, the glass is thermally strengthened according to the applicable production specification.
Glass plies are assembled with PVB, SGP, or another specified interlayer.
The laminated assembly undergoes controlled heat and pressure processing to achieve bonding between the glass and interlayers.
The finished panels are inspected for dimensions, appearance, surface quality, edges, and lamination quality before packaging.
For floor glass, inspection should cover both the surface treatment and the laminated glass assembly.
Panel dimensions, thickness, holes, and other fabricated features are checked against the approved specifications.
The anti-skid treatment is examined for consistency, visible defects, and conformity with the approved surface design.
Processed edges are checked for chips, irregularities, and dimensional conformity.
The laminated structure is inspected for bonding quality and visible defects that could affect the finished panel.
Depending on the specified glass configuration, inspection may include glass appearance, flatness, tempering quality, impact-related performance, and other applicable quality checks.
Where a project specifies a particular slip-resistance requirement or testing standard, the finished surface should be evaluated using the applicable test method. Slip-resistance values should be stated only when supported by actual test results and the relevant test standard.
This approach is important because “anti-skid” is not a universal numerical performance rating; the actual result depends on the surface design, test method, environmental conditions, and footwear.
Item | Specification |
Product Name | Anti-Skid Floor Glass |
Glass Type | Anti-Skid Glass / Clear Glass / Ultra-Clear Glass |
Construction | Multi-Layer Laminated Glass |
Interlayer | PVB / SGP |
Interlayer Colors | Milky White, Black, French Green, Light Blue, Bronze, Light Grey, Dark Grey, Ocean Blue, etc. |
Glass Configuration | 3 or more glass plies according to project requirements |
Thickness | 8+1.52PVB+8+1.52PVB+8 mm; 8+1.9PVB+8+1.9PVB+8 mm; 10+1.9PVB+10+1.9PVB+10 mm; 12+1.9PVB+12+1.9PVB+12 mm; 15+2.67SGP+15+2.67SGP+15 mm; customized |
Reference Sizes | 300×300 mm; 500×500 mm; 1000×1000 mm; 2000×1000 mm |
Surface | Anti-Skid / Customized Surface Effect |
Shape | Rectangular / Custom |
Processing | Cutting / Edge Processing / Drilling / CNC |
Applications | Floors / Staircases / Skywalks / Platforms |
The anti-skid surface is only one component of a safe glass flooring system. Proper installation is equally important.
Glass panels should be supported according to the structural design. Support span and fixing conditions affect the required glass configuration.
For outdoor or wet applications, water should not be allowed to accumulate unnecessarily on the walking surface.
Drilled, cut, or shaped areas should be compatible with the specified fixing system to avoid unwanted stress concentrations.
Where the anti-skid treatment is applied to a specific glass ply or surface, the installation orientation should follow the approved drawings.
Drilling, cutting, or other major glass processing should be completed during manufacturing rather than carried out after production.
For project applications, the final installation method should be reviewed against the glass design, support structure, building requirements, and relevant local codes.
Anti-skid glass flooring requires regular cleaning to maintain both appearance and surface performance.
Dust, sand, oil, food residues, and other contaminants can accumulate on a walking surface and affect the user’s interaction with the glass.
Routine cleaning should use methods compatible with the specific anti-skid surface treatment. Avoid abrasive tools or aggressive cleaning procedures unless they have been confirmed suitable for the surface.
Water deposits and cleaning-agent residues should not be allowed to build up unnecessarily in areas such as pool surroundings, bathrooms, and outdoor walkways.
For heavily used floors, periodic inspection can help identify surface wear, damage, edge issues, or changes that may require maintenance.
Proper cleaning is not only about keeping transparent glass visually clean; it also helps preserve the intended condition of the treated walking surface.
Yes. It is designed for pedestrian use with common footwear. However, the actual walking experience depends on the selected surface texture, shoe sole, and whether the surface is clean and dry.
Wet conditions can reduce traction on any flooring surface. Anti-skid treatment helps improve grip, but it does not make the glass slip-proof. For outdoor or wet areas, drainage, regular cleaning, and the specified slip-resistance test method should be considered together.
Minor surface marks may sometimes be assessed by a glass professional, but anti-skid textures and coatings cannot always be restored on site. Deep scratches, damaged patterns, or significant surface wear may require panel replacement.
It should not be placed directly on concrete without a suitable support and fixing system. The installation needs compatible setting blocks, gaskets, frames, or other approved components to distribute loads and protect the glass edges.
Panel size alone is not enough to determine suitability. The supplier or project engineer needs the panel dimensions, support span, fixing method, expected loads, use conditions, and applicable local requirements before confirming the glass build-up.
VATTI can review the project information and propose a suitable product configuration for quotation and technical discussion. Final structural approval should be completed by the responsible project designer or engineer according to local codes and site conditions.
