Black Ceramic Glass Sheet is a premium glass-ceramic material designed for high-temperature applications requiring exceptional thermal stability, mechanical strength, and modern aesthetics. Featuring near-zero thermal expansion, excellent thermal shock resistance up to 760°C, and outstanding chemical durability, it is widely used in induction cooktops, electric ceramic stoves, infrared heaters, and commercial cooking equipment.
Black Ceramic Glass Sheet is a high-performance glass-ceramic material specifically engineered for applications requiring exceptional thermal stability, mechanical strength, and modern aesthetics. Through a controlled crystallization process, this advanced material combines the processing advantages of glass with the superior heat resistance of ceramics.
Featuring near-zero thermal expansion, excellent thermal shock resistance, and outstanding chemical durability, black ceramic glass sheets are widely used in induction cooktops, electric ceramic cookers, infrared heating appliances, and other high-temperature equipment.
Product name | crystal glass for induction cooker/ ceramic glass induction cooktop /ceramic glass top for induction cooker /4mm glass for induction cooker/ceramic glass |
Color | Black,white,clear,etc |
Thickness | 4mm,6mm |
Density | Approx. 2.56 g / cm3 |
Modulus of Elasticity | Approx. 93 x 103 Mpa |
Shape | Round,square,rectangle,etc |
Size | 590×520mm,730×430mm,900×520mm,also can custom other size |
Advantages | Good mechanical properties, chemical corrosion resistance and strong thermal stability,etc |
Characteristics | 1.Great heat resistance performance,stable chemical property; |
Bending Strength | Approx. 36 MPa,The bending strength testing is to be accomplished according to DIN EN 1288 part 5 (R45) |
Thermal Characteristics | Coefficient of Mean Linear Expansion---α(20 - 700oC) (0 ± 0.5) x 10-7 /K |
Resistance to Temperature Differences (RTD) | Resistance of the panel to temperature differences between heated zone and cold panel edge (room temperature). No cracking due to |
Thermal Shock Resistance | Resistance of the panel to thermal shock when the hot panel (760 degree C) is quenched with cold water (20oC temperature). No |
Screen printing | Complies with RoHS standards, normal ink available |
Impact resistance | A steel ball (diameter 60mm, weight 188g) freefall from180mm height, striking the panel 10 times. No scratching or cracking |
No. of Electric Burner | 1,2,3,etc |
No. of Gas Burner | 1,2,3,etc |
Type | Multiple Cooktops (Gas + Electric) |
Installation | Built-in |
Application | Commercial, Household |
Power Source | Electric, Gas |
Black Ceramic Glass Sheet is an advanced glass-ceramic material manufactured through a precisely controlled ceramization process, in which a specially formulated glass undergoes heat treatment to develop a fine and uniform crystalline structure throughout the material. Compared with conventional tempered glass, which achieves improved strength mainly through a thermal tempering process that creates compressive stress on the surface, glass-ceramic exhibits fundamentally different material characteristics. Its performance is derived from a highly engineered microcrystalline structure distributed throughout the entire body of the material. This unique composition provides an extremely low coefficient of thermal expansion, outstanding resistance to thermal shock, superior dimensional stability under rapid temperature fluctuations, and reliable mechanical performance in high-temperature environments. As a result, glass-ceramic is widely recognized as the preferred material for applications that require long-term exposure to intense heat, frequent heating and cooling cycles, and demanding operational conditions.
In addition to its outstanding thermal properties, black ceramic glass offers excellent mechanical strength, chemical resistance, and long-term durability. The smooth black surface can be designed with varying levels of light transmission, allowing it to conceal internal components while maintaining functionality for touch controls, digital displays, and heating indicators. Combining high-performance engineering with a modern, sophisticated appearance, black ceramic glass sheet has become a preferred material for manufacturers seeking both reliable thermal performance and premium product aesthetics.

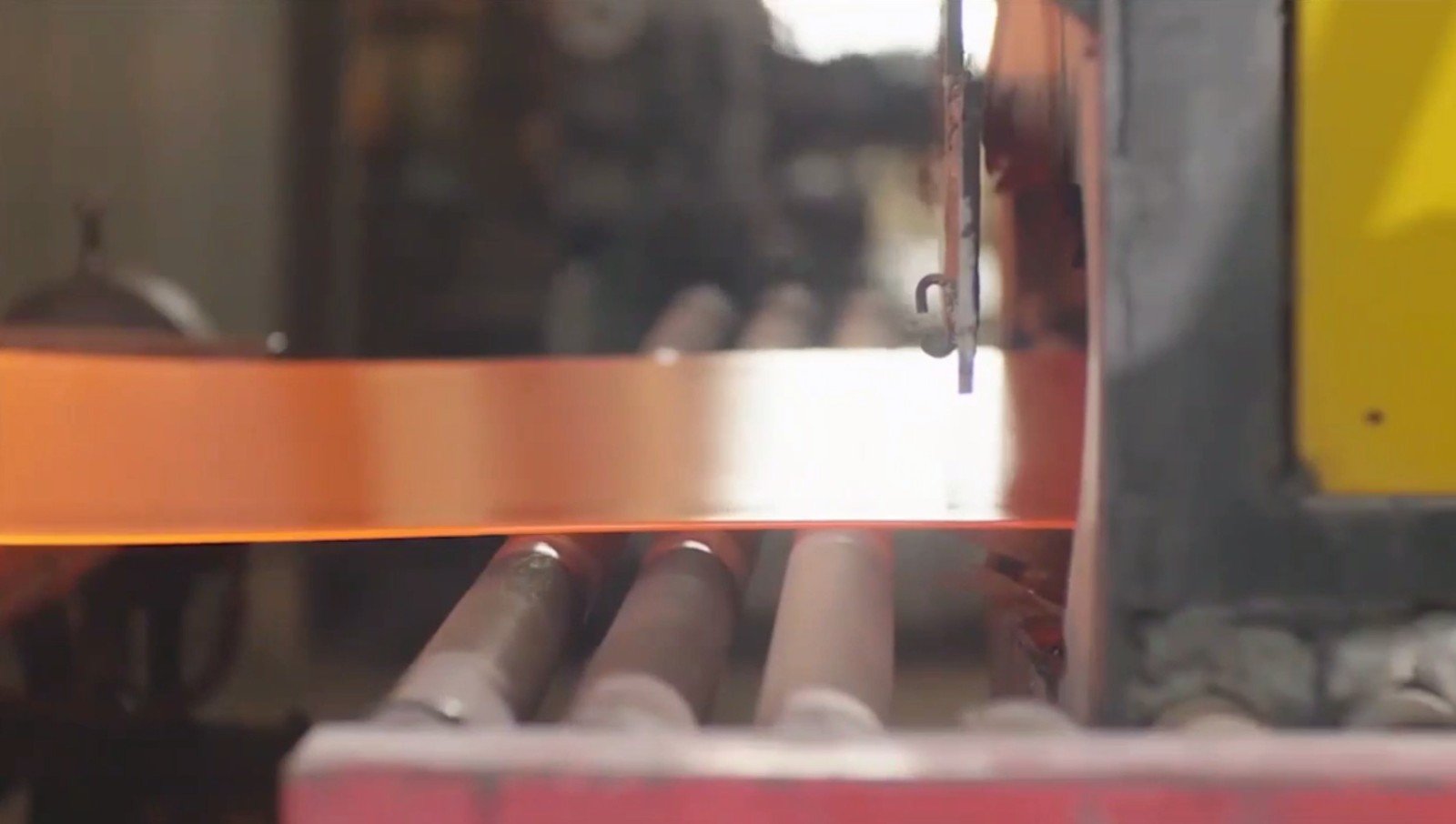

The production of black ceramic glass sheets involves several precision-controlled stages:
High-purity silica, alumina, lithium compounds, and other specialized materials are carefully formulated to achieve the desired thermal and mechanical properties.
The raw materials are melted at high temperatures to create a homogeneous glass composition.
The molten glass is shaped into sheets of specified dimensions and thicknesses.
The formed glass undergoes a precisely controlled heat-treatment process that converts a significant portion of the glass structure into microscopic crystals.
Cutting, drilling, edge finishing, CNC machining, and screen printing are performed according to customer requirements.
Every finished product undergoes comprehensive dimensional, visual, thermal, and mechanical testing before shipment.
Black Ceramic Glass Sheet is specifically designed for high-temperature applications. It can withstand continuous exposure to elevated temperatures without deformation, softening, or loss of structural integrity. This makes it an ideal material for induction cooktops, electric ceramic stoves, infrared heaters, and other heating appliances that operate under demanding thermal conditions.
One of the most important advantages of glass-ceramic materials is their outstanding thermal shock resistance. The panel can tolerate rapid temperature changes of up to 760°C without cracking or breaking. Whether subjected to sudden heating or cooled by accidental contact with cold liquids, the material maintains its stability and reliability, ensuring safe operation in everyday use.
With an extremely low coefficient of thermal expansion, Black Ceramic Glass Sheet experiences minimal dimensional changes when exposed to heat. This unique characteristic prevents warping, distortion, and thermal stress, allowing the panel to maintain excellent flatness and precise fitting throughout its service life.
Engineered for durability, the material offers excellent bending strength and impact resistance. It can withstand the mechanical stresses associated with cooking appliances, transportation, installation, and daily operation. Its robust structure helps reduce the risk of damage and extends product lifespan.
The dense glass-ceramic surface provides excellent resistance to a wide range of chemicals, including household cleaning agents and cooking oils. This chemical stability helps preserve the appearance and performance of the panel even after prolonged use in demanding environments.
Depending on application requirements, the glass can be engineered to provide controlled light transmission. This feature allows indicator lights, digital displays, and touch-control systems beneath the panel to remain clearly visible while maintaining an elegant black appearance on the surface.
The smooth black surface delivers a premium and contemporary aesthetic that complements modern appliance designs. Its sleek appearance is widely favored by manufacturers of induction cooktops, electric ceramic cookers, and high-end heating equipment, helping enhance overall product value and consumer appeal.
Combining thermal stability, mechanical durability, and chemical resistance, Black Ceramic Glass Sheet is designed for long-term performance. Even under repeated heating and cooling cycles, the material maintains its structural integrity and appearance, reducing maintenance costs and replacement frequency.
The non-porous and smooth surface prevents dirt, grease, and food residues from penetrating the material. Daily cleaning can be performed quickly using standard cleaning products, helping users maintain a clean and attractive cooking surface with minimal effort.
Black ceramic glass sheets used for induction cooktops and heating appliances are typically supplied according to the customer’s appliance design, heating zone layout, and assembly requirements. Leveraging advanced glass-ceramic processing capabilities, we provide precision fabrication services that ensure dimensional accuracy, functional performance, and seamless integration into finished products.
· Custom panel dimensions and thicknesses
· CNC profile cutting for complex geometries
· Precision drilling and mounting holes
· Sensor openings and functional cut-outs
· Radius corners and shaped edge processing
· Flat polished, arrised, or beveled edges
· High-temperature ceramic screen printing
· Heating zone markings and control panel graphics
· Customized light transmission windows for display areas
· Decorative black masking and pattern printing
· OEM branding and logo printing
· Prototype development and mass production support
All customized products are manufactured according to customer drawings, technical specifications, or appliance design requirements, with strict dimensional and appearance inspections conducted throughout the production process.

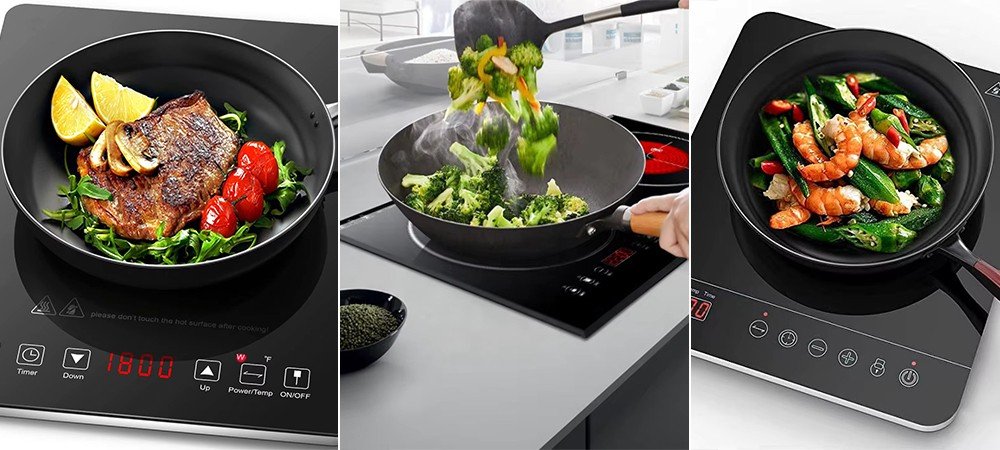

Used as durable cooking surfaces with excellent heat resistance and modern aesthetics.
Provides reliable performance under repeated heating cycles.
Offers high thermal stability for infrared heating systems.
Widely applied in restaurants, hotels, and professional kitchen environments.
Compatible with gas-electric hybrid cooking appliances.
Our manufacturing and quality management systems comply with internationally recognized standards.
· ISO 9001 Quality Management System
· SGS Tested
· CE Compliance
· RoHS Compliance
· Finished Product Inspection
· Raw Material Traceability
· Process Quality Control
· Production Batch Tracking
All products are manufactured under strict quality management procedures to ensure consistent performance and reliability.

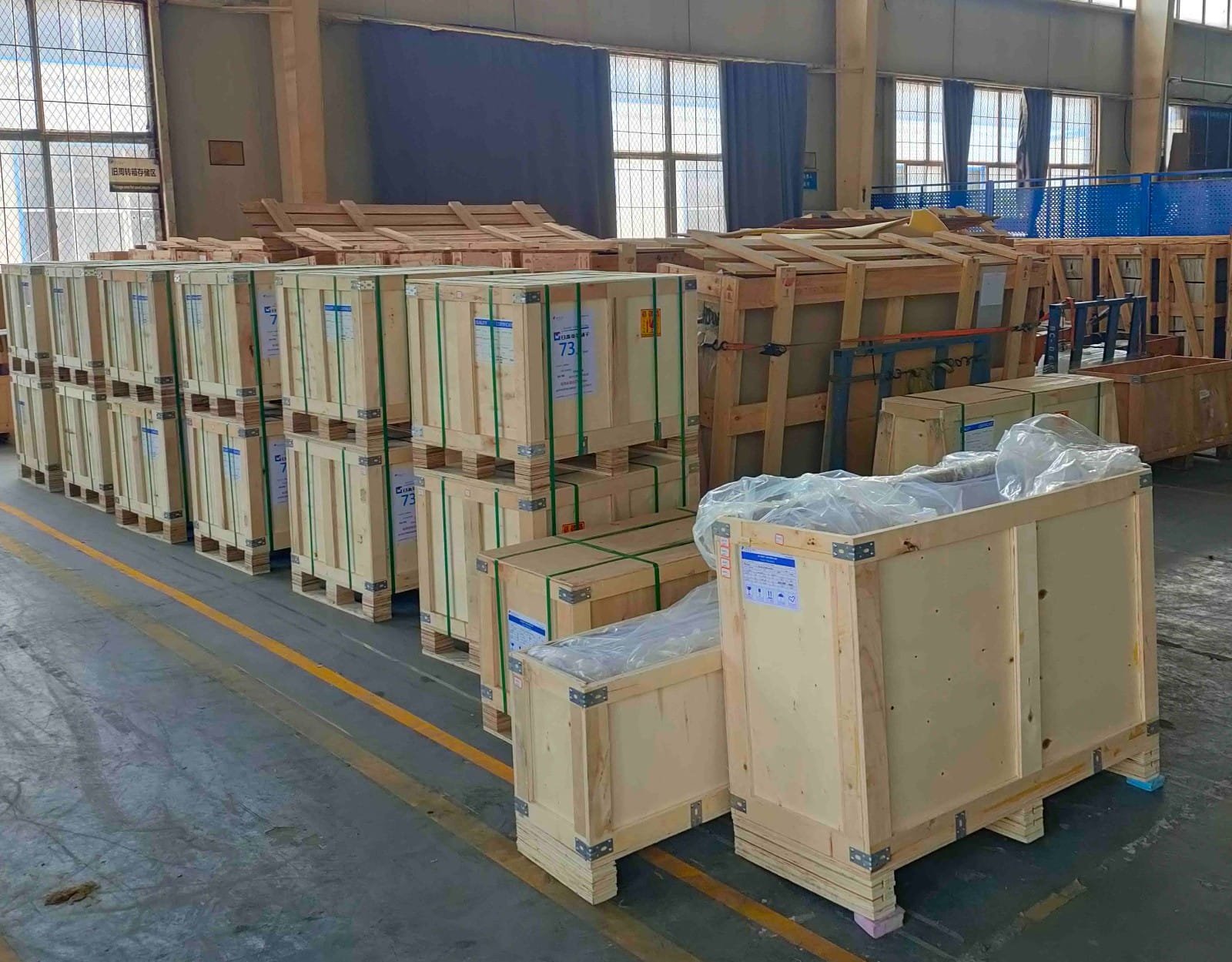

To ensure products arrive safely and intact, we utilize professional export packaging solutions.
Each Black Ceramic Glass Sheet is carefully packaged to ensure maximum protection throughout storage and transportation. A protective surface film is applied to prevent scratches and surface damage during handling. Individual glass panels are packed in cartons with protective foam cushioning, while foam separation layers are used between panels to minimize the risk of contact and breakage. Additional corner protection materials are incorporated to enhance impact resistance during transit. For secure transportation and easier handling, products are placed on sturdy wooden pallets and packed according to reinforced export standards suitable for international shipments. Customized packaging solutions can also be provided to meet specific customer requirements and logistics needs.
We offer flexible transportation solutions to meet different project requirements and delivery schedules. For sample orders, we typically arrange shipment through international express carriers such as DHL, FedEx, UPS, TNT, or EMS, with an estimated delivery time of approximately 7–10 working days after payment confirmation. For bulk orders, sea freight is the most cost-effective option, and customized shipping arrangements can be made based on the customer’s location, order quantity, and specific delivery requirements. Door-to-door logistics solutions are also available upon request to ensure a smooth and efficient delivery process.
Years of expertise in the production and processing of glass-ceramic materials.
Modern production equipment ensures stable quality and high production efficiency.
Comprehensive inspections throughout every stage of manufacturing.
Flexible customization services tailored to customer requirements.
Integrated manufacturing, processing, inspection, and logistics support.
Professional engineering assistance before, during, and after project implementation.
Serving appliance manufacturers and industrial customers worldwide.
Technical consultation, online support, product replacement, and return services when applicable.
Related products include Black Micro Crystalline Glass, Induction Cooktop Glass, Ceramic Cooktop Glass Panels, Infrared Ceramic Glass, Fireplace Ceramic Glass, White Ceramic Glass, Transparent Ceramic Glass, and Heat Resistant Glass-Ceramic Panels. These products are designed for various high-temperature and heating applications, offering excellent thermal stability, durability, and aesthetic appeal to meet the needs of appliance manufacturers and industrial customers.
No. Glass-ceramic offers significantly higher thermal shock resistance and lower thermal expansion than tempered glass.
Depending on the application, it can withstand temperature differences and thermal shock up to approximately 760°C.
Yes. We offer customized sizes, thicknesses, shapes, holes, cut-outs, and printed designs.
Yes. It is widely used as a cooking surface for induction and electric ceramic cooktops.
Yes. Custom silk-screen printing and logo printing services are available.
Products can be supplied with ISO 9001, SGS, CE, and RoHS compliance documentation.
Products are protected with film, foam, and reinforced wooden crates designed for international transportation.
Yes. We support both OEM and ODM projects for appliance manufacturers and distributors.
Looking for a reliable Black Ceramic Glass Sheet supplier?
Our technical team is ready to assist with product selection, customization, sample requests, and project consultation.
Contact us today to discuss your requirements and receive a customized quotation.
