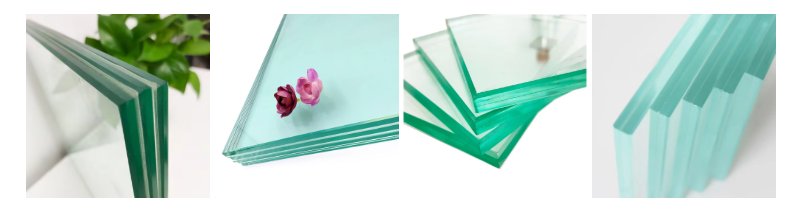

Bullet proof glass is a high-strength laminated security glass designed for ballistic protection in windows, doors, and curtain wall systems. It combines multiple layers of glass with PVB, SGP, or polycarbonate interlayers to resist impact while maintaining clear visibility.

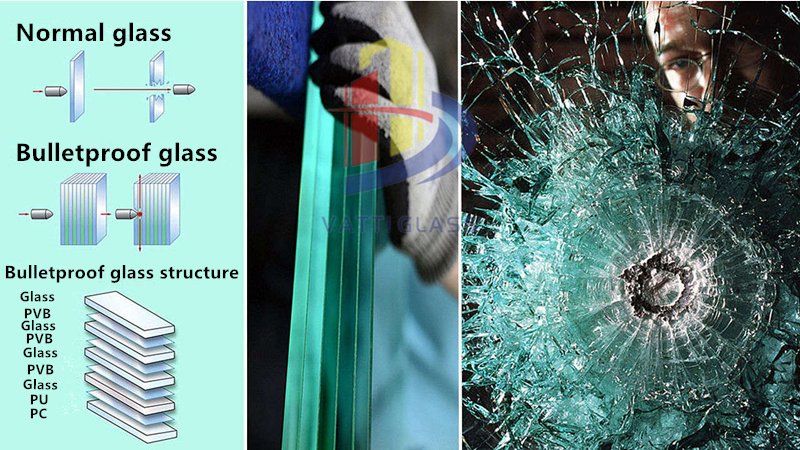

Bullet proof glass is a high-performance laminated safety glass designed to provide ballistic protection while maintaining optical clarity. It is manufactured by bonding multiple layers of glass with interlayers such as PVB, SGP, PU film, and polycarbonate sheets under controlled pressure and temperature.
This structure allows the glass to absorb and disperse the energy from high-velocity impacts, preventing penetration while keeping the glass frame intact. It is widely used in environments where security and safety are critical.
Bullet proof glass is classified into different ballistic protection levels based on its thickness, material composition, and structural design. Each level is engineered to resist specific types of firearm impact under standardized testing conditions.
· B4 level : designed for handgun protection such as .44 Magnum and 9mm firearms
· B5 level : designed for high-power rifle resistance including AK47
· B6 level : designed for advanced rifle protection such as M14 and M16
Higher protection levels can be customized based on project security requirements and threat assessment.
Each level is achieved through optimized combinations of glass layers and interlayer materials, ensuring a balance between transparency, strength, and impact resistance.
| Category | Item | Specification |
| Physical | Thickness | 19mm – 360mm |
| Physical | Structure | Laminated solid structure |
| Physical | Shape | Flat (custom available) |
| Physical | Color | Clear / Ultra clear |
| Material | Glass Type | Float glass / Ultra clear glass |
| Material | Interlayer | PVB / SGP / PU / PC plate |
| Performance | Bullet Resistance | B4 / B5 / B6 (customized) |
| Performance | Application | High-security protection systems |
| Processing | Edge Type | Polished / Ground / Beveled |
| Processing | Drilling | Available |
| Custom | Size | Customizable |
| Custom | Shape | Flat / irregular optional |
| Quality | Certification | ISO 9001 |
| Service | Warranty | 1 Year |
| Service | After-sales | Online Technical Support |
| Logistics | Supply Capacity | 100,000㎡ / Month |
| Logistics | Port | Qingdao / Tianjin / Dalian |
· High ballistic resistance designed for handgun and rifle protection levels
· Multi-layer laminated structure ensures strong impact absorption and penetration resistance
· High optical clarity with minimal distortion and excellent light transmission
· Advanced interlayer bonding technology improves structural stability and safety performance
· Anti-spall design reduces secondary impact damage for enhanced protection
· Smooth, flat surface with no bubbles, waves, or visible defects
· Strict thickness control ensures consistent performance across large-scale production
· Stable durability under long-term use in high-security environments

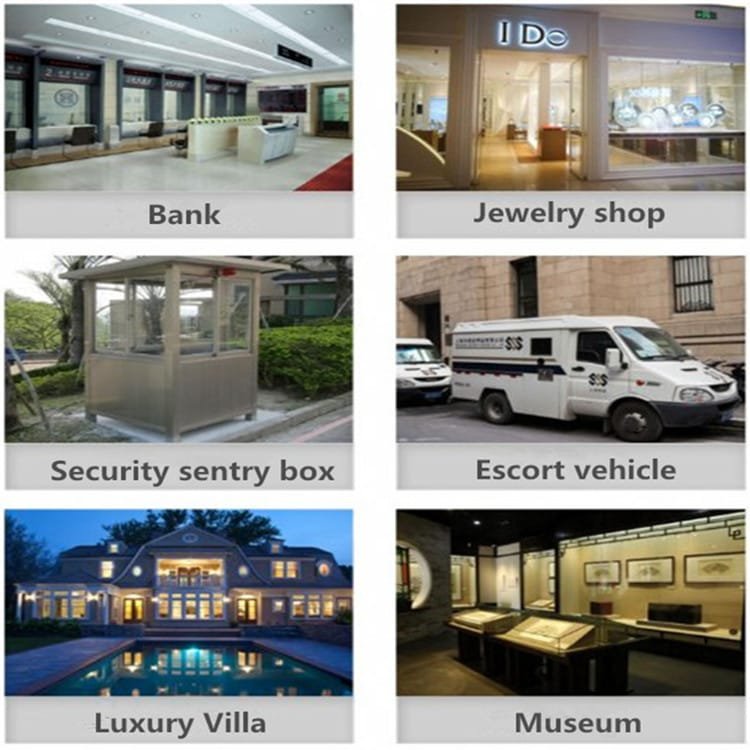

· Bullet proof glass is widely used in residential, commercial, and high-security projects where safety and transparency are required.
· Villas, apartments, and residential buildings
· Office buildings, hotels, and commercial spaces
· Banks, jewelry stores, museums, and government facilities
· Curtain wall systems and building façades
· Industrial facilities and special engineering projects
· Armored vehicles and transportation security systems
Bullet proof glass can be precisely processed according to different architectural and engineering project requirements to ensure accurate installation and stable performance.
Precision cutting with accurate dimensions based on project drawings
Smooth and flat edge finishing for improved safety and installation quality
Custom shapes available including rectangular, square, and irregular designs
Drilling and cut-out processing for mounting and structural installation needs
Surface treatment customization to meet different architectural requirements
Additional processing solutions available based on specific project requirements
We are a professional manufacturer specializing in laminated safety glass and bullet proof glass solutions with strong engineering production capability.
Established production system focused on laminated and ballistic glass manufacturing
Advanced production lines with imported processing equipment for stable output quality
Strict quality control system covering raw materials, lamination process, and final inspection
Experienced engineering team supporting customized security glass projects
Monthly production capacity up to 100,000㎡ to support large-scale orders
Export experience to over 90 countries across global markets
All products are manufactured under controlled processes to ensure consistent ballistic performance, optical clarity, and structural stability for high-security applications.
To ensure safety, consistency, and ballistic performance stability, every piece of bullet proof glass is strictly inspected throughout the full production process.
· Strict raw material inspection to ensure glass quality and interlayer stability
· Controlled lamination process with monitored temperature and pressure
· Interlayer bonding strength testing to ensure structural integrity
· Optical clarity and distortion testing for high transparency performance

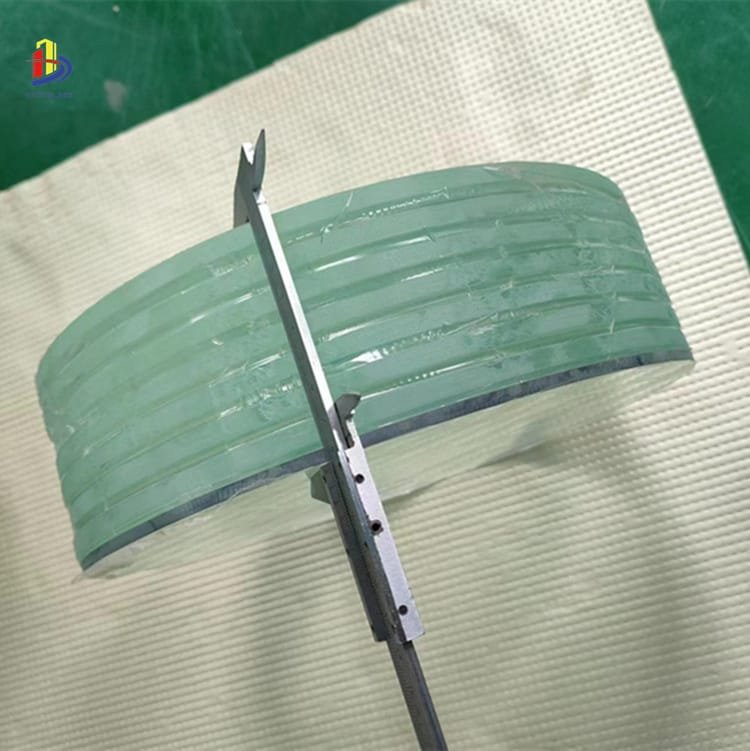

· Thickness and dimensional accuracy inspection for engineering compliance
· Final quality inspection before packaging and shipment
Each product is produced under strict quality control standards to ensure stable ballistic resistance, durability, and long-term safety performance in high-security applications.
To ensure safe transportation of heavy laminated bullet proof glass, each product is carefully packaged with reinforced protection systems designed for long-distance international shipping.
Packaging
· Protective paper or foam separation between glass layers to prevent surface damage
· Heavy-duty export plywood wooden crates for maximum impact resistance
· Steel strap reinforcement to ensure structural stability during transport
· Shock-resistant packaging design suitable for both sea and air transportation
· Moisture-proof protection for long-distance international shipping
Shipping Options
· FOB Qingdao Port, China
· Air express (DHL / FedEx) for small or urgent orders
· Ocean freight for bulk and project-based orders
· Optional customs clearance and door-to-door delivery service available
· Full logistics support for international construction and security projects
Q1: Is bullet proof glass completely unbreakable?
No. Bullet proof glass is highly resistant to ballistic impact, but it is not completely unbreakable under extreme force or repeated high-caliber attacks. It is designed to delay penetration and enhance safety protection.
Q2: What is the difference between B4, B5, and B6 bullet proof glass levels?
These levels represent different ballistic protection grades.
B4 provides protection against handgun threats, B5 is designed for high-power rifles such as AK47, and B6 offers advanced protection against military-grade rifles like M14 and M16.
Q3: Can bullet proof glass be customized?
Yes. Bullet proof glass can be fully customized in thickness, size, shape, and bal listic protection level according to architectural drawings and project requirements such as banks, villas, and security buildings.
Q4: What is the production time for bullet proof glass?
Production time depends on order quantity, specifications, and protection level requirements. For most standard projects, production is scheduled based on engineering drawings and project timelines.
Q5: Do you provide installation or technical support?
Yes. We provide full online technical support, including installation guidance and engineering consultation for security glass and curtain wall applications.
