The Ceramic Cooktop Glass Sheet’s unique microcrystalline structure helps concentrate heat where it is needed most, improving energy efficiency while reducing unnecessary heat spread across the cooking surface. Manufactured from high-quality, naturally derived raw materials, it offers a sustainable solution for next-generation kitchen appliances. The smooth, non-porous surface resists stains, scratches, and discoloration, maintaining its elegant appearance over time.
Ceramic Cooktop Glass Sheet is a high-performance glass-ceramic material specifically engineered for induction cooktops, electric cookers, and commercial cooking appliances. Combining the transparency and smooth surface of glass with the thermal stability of ceramics, it offers exceptional resistance to heat, thermal shock, mechanical impact, and daily wear.
Designed for modern cooking environments, ceramic cooktop glass delivers focused heat transfer to cookware while maintaining relatively low surface temperatures around the cooking zone. Its near-zero thermal expansion ensures dimensional stability even during repeated heating and cooling cycles.
Thickness | 4mm,6mm | Heat resistant temperature | 660≤850℃ |
Silica content | >80% | Density(20℃) | 2.23cm-1 |
Stain point | 520℃ | Thermal capacity:(20-100℃) | 0.82KJ*(kg*k)-1 |
Annealing temperature | 560℃ | Thermal conductivity | 1.2W*(M*K)-1 |
Soften point | 820℃ | Thermal shock resistance | 180K |
Refractive index | 1.47 | Max.working temperature | 750℃(long time) |
Color | Black, White, Transparent | Refractive index | 1.47384 |
Processed point(104dpas) | 1220℃ | Thermal expansion coefficient(0-300℃) | 3.3±0.1*10-6K-1 |
Ceramic cooktop glass is a specialized glass-ceramic material manufactured through controlled nucleation and crystallization of a parent glass composition. Its fine microcrystalline structure gives it significantly better thermal stability and mechanical performance than ordinary glass.
Because of its very low coefficient of thermal expansion, ceramic glass can tolerate rapid temperature changes and repeated heating and cooling cycles with a much lower risk of cracking or deformation than conventional glass materials.
For cooktop applications, this combination of thermal shock resistance, dimensional stability, durability, and a smooth easy-to-clean surface makes ceramic glass a reliable and widely used solution for modern cooking appliances.
Glass-ceramic materials are produced through a carefully controlled two-stage manufacturing process that transforms high-purity raw materials into a highly stable and heat-resistant surface. In the first stage, the raw materials are melted to form a uniform glass base with a consistent chemical composition. In the second stage, the glass is reheated under precisely regulated conditions to initiate controlled crystallization, allowing microscopic crystals to develop evenly throughout the material.
This unique microcrystalline structure is the key to the exceptional performance of glass-ceramic. It gives the material near-zero thermal expansion, excellent thermal shock resistance, high mechanical strength, superior dimensional stability, and a long service life. As a result, ceramic glass remains stable during repeated heating and cooling cycles and experiences almost no visible expansion or contraction, unlike conventional glass.
Modern induction cooking systems require materials capable of handling extreme temperature gradients while maintaining safety and appearance.
Ceramic cooktop glass offers several unique advantages:
The material allows heat energy to be concentrated directly beneath cookware while minimizing lateral heat transfer.
Its long service life reduces replacement frequency and supports sustainable appliance design.
With high impact resistance and structural stability, ceramic glass performs reliably in demanding kitchen environments.
The smooth, non-porous surface resists discoloration, scratching, and staining, helping appliances maintain a premium appearance for years.
The performance of ceramic cooktop glass is determined by its glass-ceramic microstructure, which gives the material a very low coefficient of thermal expansion and excellent dimensional stability under heat. In practical use, this means the panel expands and contracts only slightly during repeated heating and cooling cycles, helping reduce internal stress and lowering the risk of cracking.
Ceramic glass also offers strong thermal shock resistance, allowing it to withstand sudden temperature changes far better than ordinary glass. This makes it suitable for cooktops that are exposed to rapid heating, cooling, and frequent daily use.
In terms of heat transfer, the material is designed to conduct heat in a controlled way. Heat is transferred efficiently to the cookware while lateral heat spread across the panel remains relatively low, which helps improve cooking efficiency and keeps the surrounding surface cooler than the cooking zone.
With a maximum long-term working temperature of around 750°C and excellent resistance to continuous high-temperature exposure, ceramic cooktop glass maintains stable performance over time. This combination of thermal stability, low expansion, and heat resistance is what makes it a reliable material for modern induction and electric cooking appliances.
Although ceramic glass is highly durable, improper use can shorten its lifespan.
Dropping heavy cookware onto the surface may create chips or cracks.
Uneven mounting pressure can introduce mechanical stress points.
Improper handling during transportation or installation may weaken edges.
Using incompatible cookware or damaged heating systems may create excessive thermal concentration.
Inferior raw materials and inadequate quality control can reduce thermal and mechanical performance.
Selecting certified, professionally manufactured ceramic glass significantly reduces these risks.
Ideal for modern residential kitchens, offering a sleek surface, efficient heating performance, and easy integration into premium appliance designs.
Suitable for compact kitchens, mobile catering, and temporary cooking setups where lightweight, heat-resistant panels are required.
Widely used in Asian restaurants and commercial kitchens that demand rapid heating, strong thermal stability, and durable surface protection.
A reliable surface solution for next-generation cooking equipment, including touch-control cooktops and connected kitchen systems.
Applicable to custom heating appliances, multi-zone cooking units, and other engineered equipment requiring stable, heat-resistant glass-ceramic panels.
Our ceramic cooktop glass sheets are manufactured in accordance with internationally recognized quality and safety standards to support reliable performance in global appliance markets. For qualified projects, we can provide CE certification and RoHS compliance documentation, helping customers meet regulatory requirements for product approval, market access, and environmental safety. Additional technical documents may also be available upon request to support procurement, quality audits, and export compliance.
We provide reliable export services for OEM manufacturers, distributors, and appliance brands worldwide. Our logistics solutions are designed to support both small-volume orders and large-scale bulk shipments, with careful attention to packaging integrity, transit safety, and delivery efficiency.
For standard packaging, each ceramic cooktop glass sheet is packed in an individual cardboard carton with protective foam. Bulk shipments can be secured in wooden boxes for enhanced protection during long-distance transportation, and reinforced export packaging is also available upon request.
Customized packaging can also be arranged upon request. Options include private label packaging, OEM branding, custom carton design, and export-specific protection solutions tailored to your market and shipping requirements.
Standard production time is 25–30 calendar days. For urgent orders, production may be completed in approximately 10 days depending on current capacity and order specifications.
For optimal performance and safety, inspect the ceramic cooktop glass sheet carefully before installation to ensure there is no transportation damage and that all dimensions and cutout specifications match the appliance design. During installation, avoid excessive clamping force, make sure the panel is supported uniformly across its entire surface, and protect the edges from impact to prevent stress concentration or cracking.
During use, do not drop heavy objects onto the surface, clean the panel regularly with non-abrasive cleaners, and use cookware recommended by the appliance manufacturer to maintain safe operation and extend service life. Proper installation and correct daily use significantly improve durability, performance, and operational safety.
MOQ requirements can be discussed according to project specifications.
Yes. Free samples are available. Customers only need to cover shipping costs.
Yes. We offer OEM and ODM services including custom dimensions, holes, edge processing, colors, and silk-screen printing.
Typically 25–30 calendar days. Urgent orders may be completed in approximately 10 days.
We provide:Industry Special Glass, Clear Ceramic Glass, Borosilicate Glass, Laminated Glass, Decoration Art Glass.

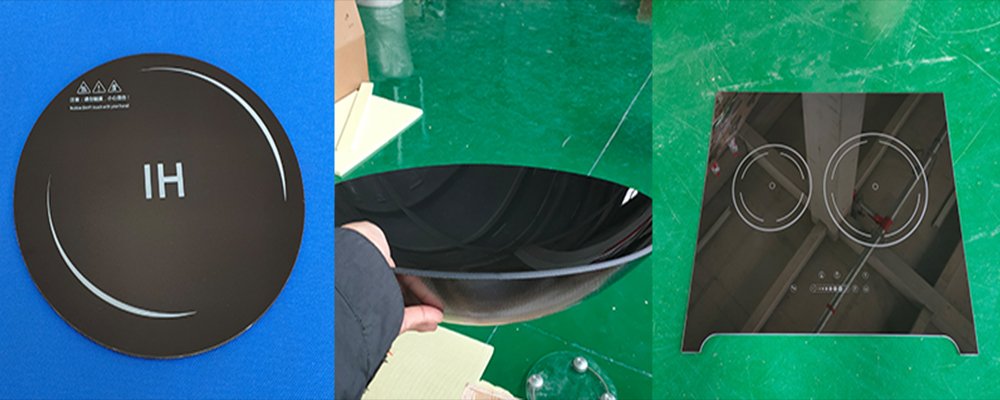

We manufacture: Round panels, Square panels, Rectangular panels, Fully customized shapes.
