Vatti Glass manufactures high-performance architectural color laminated safety glass bonded with PVB, EVA, or SGP interlayers. Built for superior impact resistance, soundproofing (30+ dB), and 99% UV blockage. Fully customizable in thickness, transparency, custom RAL/Pantone colors, and deep processing.
Color laminated glass is a high-performance customized safety glass produced by permanently bonding two or more glass sheets with a colored PVB, EVA, or SGP interlayer under precise high-temperature and high-pressure autoclave processing.
Compared to traditional monolithic tinted glass, color laminated glass delivers vastly superior impact resistance, acoustic insulation, UV filtering, and a virtually unlimited choice of visual aesthetics. In the event of breakage, the glass fragments adhere firmly to the internal polymer layer, maintaining structural integrity and eliminating falling debris risks.
Vatti Glass provides complete OEM/ODM architectural laminated glass manufacturing services, covering clear, ultra-clear, tinted, and Low-E glass combinations with precision processing including custom cutting, edge polishing, CNC hole drilling, and irregular shape processing.
Item | Specification |
Product Name | Color Laminated Glass |
Glass Type | Clear Glass, Ultra Clear Glass, Tinted Glass, Low-E Glass |
Interlayer Material | PVB Film, EVA Film, SGP Film |
Interlayer Colors | Milky White, Black, French Green, Light Blue, Bronze, Light Grey, Dark Grey, Ocean Blue, Custom Colors |
Thickness | 3+0.38PVB+3mm, 4+0.38PVB+4mm, 5+0.76PVB+5mm, 6+0.76PVB+6mm, 10+1.52PVB+10mm, Customized |
Size | 100×100mm, 300×300mm, 500×500mm, 1000×1000mm, 1830×2440mm, Customized |

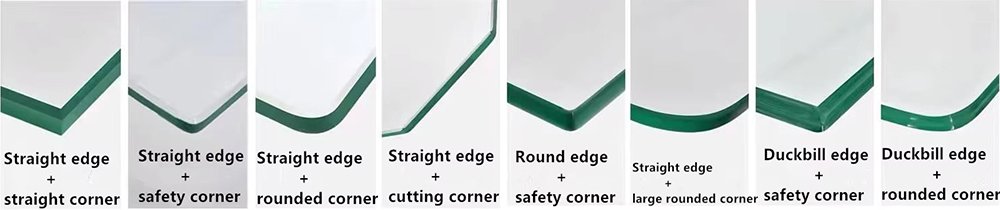

Edge Processing | Grinding, Polishing |
Shape | Rectangle, Square, Irregular Shape |
Drilling | Available |
Certification | ISO 9001 |
Architectural Safety & Structural Integrity
Utilizing heavy-duty PVB/SGP interlayers, our safety glass retains broken shards in place under severe impact, wind loads, or seismic shock, drastically lowering injury risks in high-traffic commercial installations.
Custom Color Aesthetics & Light Control
Achieve exact visual tones without sacrificing light transmission. By combining single or multiple colored interlayers, we offer custom transparency levels, color gradients, and vibrant hues tailored for modern facade designs and interior partitioning.
99% UV Blockage & Superior Sound Insulation
The viscoelastic properties of our PVB/EVA interlayers dampen sound wave transmission (reducing noise levels up to 30–35 dB) while filtering out up to 99% of harmful ultraviolet radiation, protecting interior furnishings from fading.
1.Ultra-Clear (Low-Iron) Laminated Glass: Delivers maximum light transmittance and true color rendition without the greenish tint, perfect for high-end boutique storefronts and architectural features.
2.Clear Laminated Glass: The industry-standard economical solution providing balanced light transmission, high mechanical strength, and reliable safety performance.
3.Body-Tinted Laminated Glass: Combines tinted base glass (Grey, Bronze, Green, Blue) with colored interlayers to create deeper, richer visual effects and enhanced solar control.
4.Low-E Laminated Glass: Integrates energy-efficient Low-E coatings with laminated safety glass to optimize building thermal insulation and reduce HVAC energy costs.

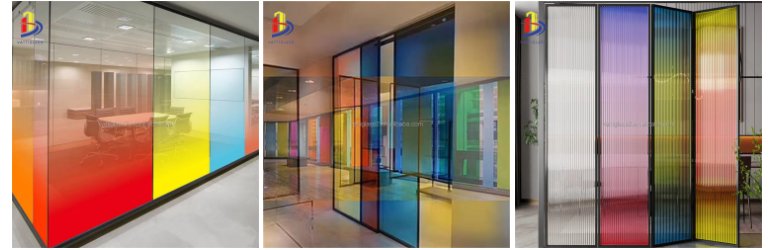

Color laminated glass is widely specified across commercial, residential, and industrial construction projects:
1.Exterior Building Envelopes: Structural curtain walls, glass facades, entrances, awnings, and skylights.
2.Balustrades & Railings: Frameless glass balconies, staircase handrails, and poolside safety fencing.
3.Interior Architecture: Decorative partition walls, sliding glass doors, acoustic conference room enclosures, and shower cubicles.
4.Commercial Display: Retail shopfronts, display counters, illuminated ceilings, and feature wall cladding.

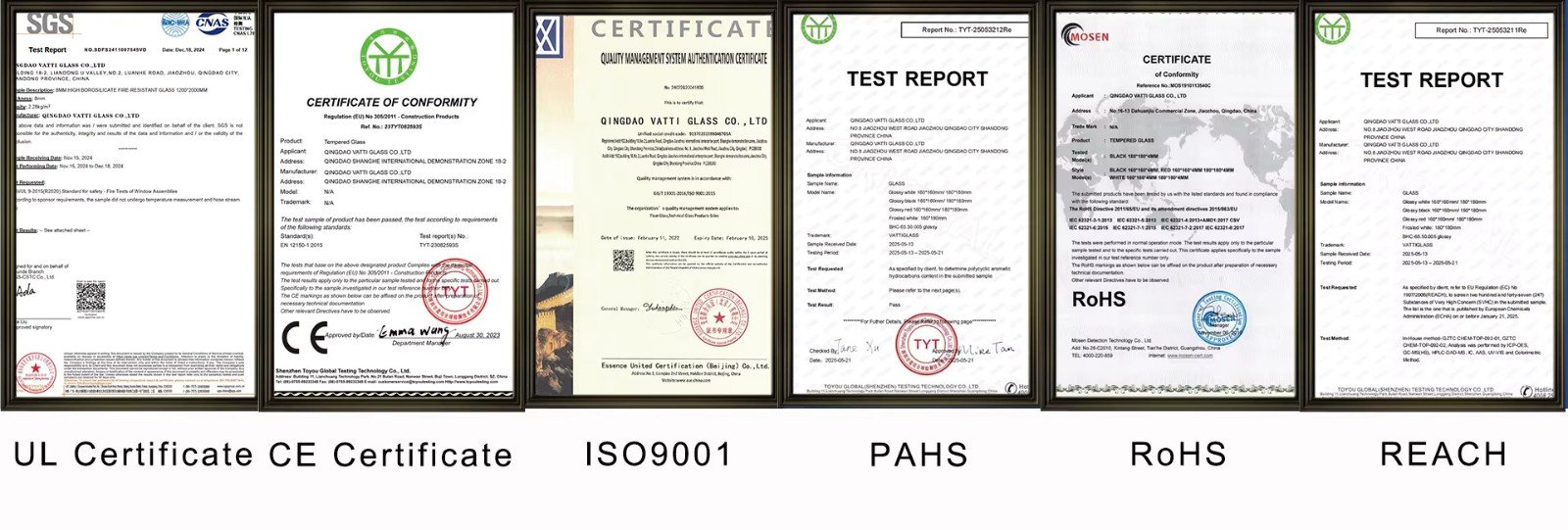

Vatti Glass manufactures all laminated products under a strict ISO 9001:2015 Quality Management System. Our architectural safety glass meets and exceeds global building material certifications:
Europe: CE Mark / EN 14449 (Laminated Safety Glass)
North America: SGCC certified / ANSI Z97.1-2015 / CPSC 16 CFR 1201
Factory Quality Checks: 100% raw float glass inspection, temperature/humidity autoclave control, bubble & lamination defect checks, edge measurement, drop-ball impact testing, and pre-shipment seaworthy packaging verification.
To ensure stable product quality, we implement inspection procedures throughout production:
Raw glass material inspection before processing
Production parameter monitoring
Sample confirmation before mass production
Lamination process control
Finished product inspection before shipment
Packaging inspection for transportation safety
Through professional production management and continuous quality monitoring, we help customers receive reliable color laminated glass products with consistent performance and appearance.
25+ Years of Glass Manufacturing Expertise: Established in 1998, Vatti Glass operates advanced automated cutting, edging, and autoclave lamination lines dedicated to precision glass engineering.
Global Export Capability (80+ Countries): Experienced in international trade compliance, supplying major contractors, fabricators, and distributors across North America, Europe, Australia, and the Middle East.
Logistics Advantage via Qingdao Port: Located near Qingdao Port and Qingdao Jiaodong International Airport (TAO), ensuring streamlined ocean freight logistics, lower inland transportation costs, and punctual container shipping schedules.
We provide secure packaging and flexible shipping solutions according to order quantity and transportation requirements.
Packaging Options
1.Carton Packaging: Suitable for small quantities and air transportation, providing convenient handling and protection during delivery.
2.Wooden Box Packaging: Suitable for both air and sea transportation, offering stronger protection for larger glass orders and long-distance shipments.
Shipping Methods
1.Small Quantity Orders: For small orders or samples, express shipping services such as DHL and FedEx are available, providing fast and reliable delivery options.
2.Bulk Orders: For large quantity orders, ocean transportation is an economical solution for international shipments.
3.Custom Clearance Support: We can assist customers with destination port customs clearance and arrange delivery to warehouses or offices according to requirements. Additional service costs will apply.
Q: What is the minimum order quantity (MOQ) for custom color laminated glass?
A: Our standard MOQ is 100 square meters. However, we accept smaller trial orders or sample requests for ongoing architectural project evaluations.
Q: Can you match custom Pantone or RAL colors for the interlayer?
A: Yes. We can match specific Pantone or RAL color codes by combining single or multi-layer colored interlayers to achieve your desired shade and visual transparency.
Q: What is the standard production lead time for bulk orders?
A: Standard production time is typically 12 to 20 days after drawing confirmation and deposit receipt, depending on quantity, glass thickness, and custom processing requirements.
Q: Do you provide free glass samples for quality testing?
A: Yes, we provide free small-sized samples (e.g., 100x100mm or 200x200mm) for color and quality confirmation. Express freight costs can be refunded upon formal order placement.
Q: What interlayer material should I choose: PVB, EVA, or SGP?
A: PVB is the industry standard for interior partitions, doors, windows, and standard curtain walls.
EVA offers excellent moisture resistance, suitable for decorative outdoor or high-humidity interior setups.
SGP (SentryGlas) provides 5x the tear strength and 100x the rigidity of standard PVB, specifically engineered for structural glass fins, glass floors, hurricane-resistant glazing, and heavy balustrades.
Looking for customized color laminated glass for your project?
Contact Vatti Glass for professional support on glass type, thickness, size, color, processing requirements, and shipping options.
