Concave decorative laminated glass is specially customized based on the aesthetic requirements of the project. It adopts a safety laminated glass structure, with one layer of ultra clear concave hot-melt glass and the other layer of ultra clear concave frosted glass.
Concave Laminated Decorative Glass is a custom architectural glass solution designed to combine sculptural form, visual texture, and laminated safety performance. Unlike conventional flat decorative glass, its curved concave profile creates greater depth and a distinctive three-dimensional appearance.
The glass can be customized in size, thickness, pattern, shape, surface finish, and mold design to suit different architectural and interior concepts. A typical configuration uses ultra clear concave hot-melt glass laminated with ultra clear concave frosted glass, creating a layered surface with controlled transparency, texture, and light diffusion.
The key difference is its concave three-dimensional profile. Traditional decorative laminated glass is generally produced from flat glass, while concave laminated panels introduce a shaped glass surface that changes how light interacts with the panel.
This combination provides several design advantages:
· Concave 3D form creates a sculptural architectural effect.
· Custom molds allow patterns and shapes to be developed for individual projects.
· Ultra clear glass maintains high visual clarity and minimizes the green tint associated with standard clear glass.
· Frosted surfaces can diffuse light and provide a softer visual effect.
· Laminated construction helps retain glass fragments together if breakage occurs.
· Custom dimensions and thicknesses allow the panels to be matched to project requirements.
The result is more than a decorative glass surface—it is a shaped architectural element that can become part of the overall spatial design.
Creating a concave glass panel requires controlled shaping and precise processing rather than simply bending a finished flat laminated panel.
Glass type, thickness, dimensions, transparency, and surface treatment are determined according to the project design.
A dedicated mold is prepared according to the required concave geometry, pattern, or three-dimensional form. Mold design is particularly important when the project requires repeated panels with consistent shapes.
The glass is heated under controlled conditions and formed to the required concave profile. Temperature and forming parameters must be carefully controlled to achieve dimensional consistency.
Depending on the design, one or more glass surfaces can receive treatments such as frosting, texturing, or other decorative finishes.
The shaped glass components are assembled with the selected interlayer and processed through a controlled lamination system.
Finished panels are inspected for appearance, dimensions, surface quality, flatness or shape consistency, edge condition, and other project-specific requirements.
The concave geometry changes the way light travels across the glass surface. When combined with frosting, texture, or molded patterns, the panel can create variations in transparency, reflection, and light diffusion.
Depending on the selected design, the glass can be developed with:
· Concave and convex visual patterns
· Geometric textures
· Organic or flowing forms
· Repeating decorative motifs
· Frosted and transparent areas
· Custom molded surface details
· Project-specific shapes and profiles
Ultra clear glass is particularly suitable when the design relies on visual clarity. Its low iron composition provides a cleaner appearance than conventional clear glass, helping colors, patterns, and transmitted light remain visually prominent.
The final optical effect depends on the glass composition, surface treatment, pattern depth, curvature, lighting conditions, and viewing angle.
Custom molds are one of the most important advantages of Concave Laminated Decorative Glass.
Instead of selecting only from standard decorative patterns, project designers can develop a dedicated glass profile based on drawings, reference samples, or design concepts.
Customization can include:
Pattern: geometric, organic, linear, abstract, or project-specific designs
Shape: rectangular, irregular, or other custom panel geometries
Surface: smooth, frosted, textured, or combined finishes
Curvature: customized concave geometry according to the approved design
Transparency: clear, translucent, or partially diffused effects
Concave Laminated Decorative Glass can be manufactured in different thickness combinations according to the project requirements.
Common examples include:
Configuration | Typical Application Consideration |
6 + 6 mm | Decorative partitions and interior applications |
8 + 8 mm | Larger or more robust architectural panels |
10 + 10 mm | Applications requiring increased glass thickness |
These configurations are examples rather than universal specifications. The appropriate thickness should be determined according to panel size, curvature, support conditions, wind or impact loads, installation method, and applicable safety standards.
Custom sizes are supported, allowing the glass to be developed around the dimensions of the finished architectural element.
Ultra clear glass is selected when visual clarity and color neutrality are important to the design.
Compared with standard clear float glass, ultra clear glass contains a lower level of iron impurities, which helps reduce the noticeable green tint, particularly at greater glass thicknesses.
For decorative concave panels, this can provide:
· Cleaner visual transparency
· More neutral color reproduction
· Better presentation of decorative patterns
· Improved transmission of natural or artificial light
· A more refined appearance for premium interiors
When combined with frosted or textured glass, ultra clear glass can also create a controlled contrast between transparent and diffused areas.

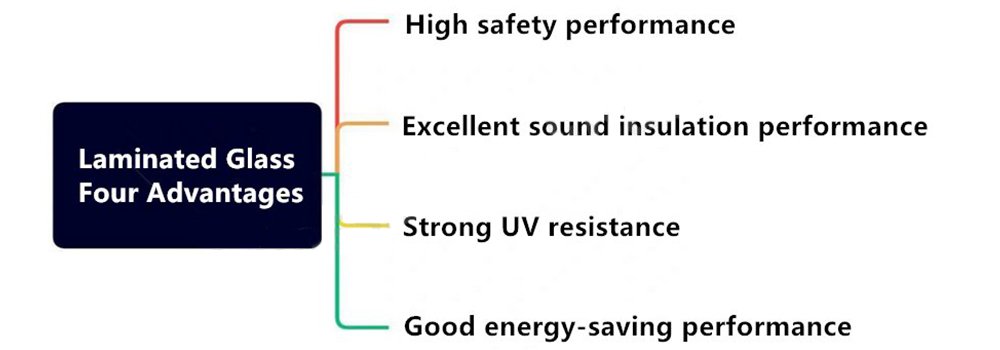

The primary purpose of the laminated structure is to provide safety benefits in addition to decorative performance.
Laminated glass consists of multiple glass layers bonded with an interlayer. When breakage occurs, the interlayer helps retain the fragments and can reduce the likelihood of the glass falling apart in large loose pieces.
Depending on the selected interlayer and overall glass configuration, laminated glass can also provide benefits related to:
The interlayer helps hold glass fragments together after breakage.
Laminated glass can provide improved sound-control characteristics compared with a single glass pane, although the actual acoustic performance depends on glass thickness, interlayer type, cavity configuration, and installation.
Certain laminated glass interlayers can filter a significant portion of ultraviolet radiation. The actual UV transmission should be confirmed according to the selected interlayer and glass specification.
Laminated glass can be incorporated into energy-conscious glazing systems, but energy performance depends on the complete glazing configuration, including glass type, coatings, interlayer, air space, framing, and building orientation.
The three-dimensional profile makes this glass particularly suitable for applications where architectural appearance is a major consideration.
Use concave decorative panels to create textured feature walls, reception backgrounds, hotel interiors, and premium commercial spaces.
The combination of texture and controlled transparency can divide spaces while maintaining visual connection and light transmission.
Concave patterns can create visual separation while introducing a sculptural element into residential, hospitality, and commercial interiors.
Depending on engineering requirements, custom concave laminated panels can also be developed for selected architectural glazing and façade-related applications.
The final application should always be matched with the appropriate glass structure, support system, and applicable safety standards.
The final appearance may vary slightly from a digital drawing because glass curvature, frosting, lighting, viewing angle, and production tolerances can affect the visual result. For important projects, we recommend approving a physical sample before mass production.
Installation depends on the panel size, curvature, weight, application, and support system. It may be installed with a suitable frame, channel, or customized fixing system. We recommend confirming the installation method before production so the glass can be manufactured with the correct edge and dimensional requirements.
We can evaluate a physical sample, photograph, sketch, or CAD drawing as a design reference. The final result will depend on whether the pattern can be reproduced through the available mold and glass-forming process.
Lead time depends on whether a new mold is required, the complexity of the pattern, sample approval, order quantity, and production schedule. We can provide a more accurate timeline after reviewing the drawings and confirming the final specification.
Yes. Custom sizes, thicknesses, glass types, shapes, patterns, colors, and interlayer options can be evaluated for OEM/ODM projects.
Common payment methods include T/T, L/C, PayPal, and Western Union. Specific payment terms can be confirmed during quotation.
The company provides ISO 9001 and CE-related certification support according to the applicable product and project requirements. Certification requirements should be confirmed based on the destination market and final glass specification.
Bring your architectural glass concept to production with a custom concave laminated solution.
Send us your panel dimensions, glass thickness, pattern drawings, curvature requirements, surface finish, quantity, and application. Our technical team can evaluate the design, recommend a suitable glass configuration, and confirm manufacturing feasibility.
We support both small samples and bulk orders, with customized production for sizes, patterns, shapes, glass types, and interlayers.
Glass panels are separated with wooden pads or pearl cotton and packed in customized safety wooden crates to help protect the products during international transportation.
Contact us today for a customized Concave Laminated Decorative Glass quotation.
