Curved Laminated Glass is a customized safety glass solution combining hot bending technology with laminated glass processing. By heating, molding, annealing, and bonding multiple glass layers with PVB, EVA, or SGP interlayers, it delivers smooth curved designs with enhanced safety, durability, and optical performance.
Curved laminated glass is a specially processed safety glass that combines hot bending technology with laminated glass manufacturing. It is produced by heating high-quality glass sheets to a controlled temperature, forming them into customized curved shapes through precision molds, and then bonding multiple glass layers with PVB, EVA, or SGP interlayers under high-temperature and high-pressure conditions.
Compared with traditional flat laminated glass, curved laminated glass provides greater design flexibility with smooth lines, elegant appearance, and enhanced structural performance. It allows architects, designers, and engineers to create unique curved surfaces while maintaining safety, durability, sound insulation, and UV protection properties.
We provide customized hot bent laminated glass solutions for architectural, automotive, commercial display, and specialty applications, supporting different sizes, thicknesses, shapes, colors, and processing requirements.
Curved laminated glass is a laminated safety glass product with a curved structure. It consists of two or more glass layers bonded together with an intermediate film layer, such as PVB, EVA, or SGP.
During manufacturing, flat glass is first heated until it reaches a softened state. The glass is then gradually shaped into a specific curve using customized molds and controlled heating processes. After annealing to release internal stress, the curved glass is laminated with an interlayer to improve safety and performance.
The laminated structure helps maintain glass integrity after breakage. When impacted, the glass may crack but the fragments remain attached to the interlayer instead of falling apart, reducing safety risks and improving overall durability.

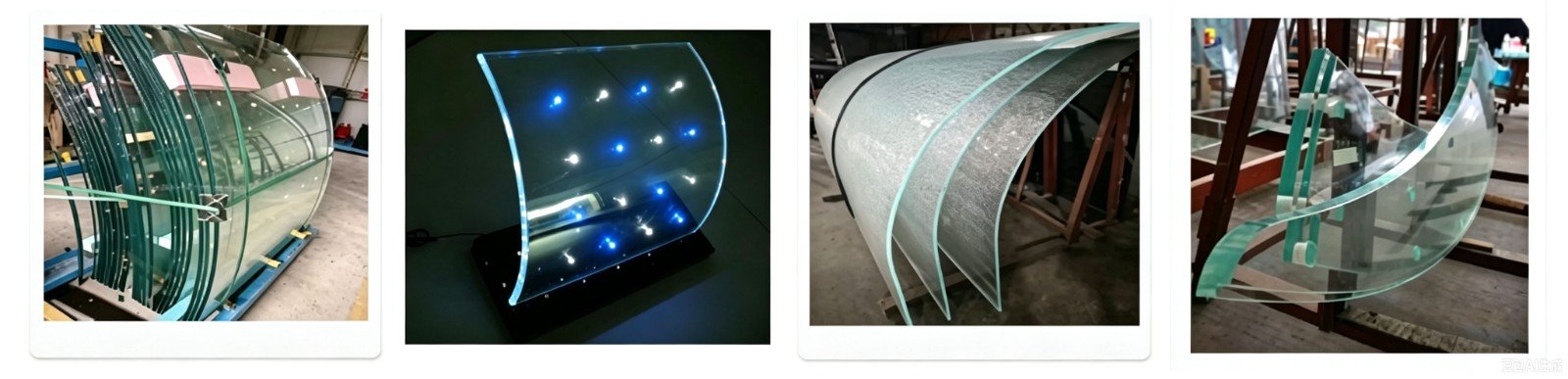

Precision Hot Bending Process
The production of hot bent laminated glass begins with carefully selected glass materials. The glass is heated evenly in a specialized bending furnace until it reaches the required softening temperature.
Through controlled heating and precision mold forming, the glass gradually achieves the required curvature while maintaining optical quality and dimensional accuracy.
Controlled Annealing & Stress Reduction
After forming, the curved glass undergoes an annealing process to reduce internal stress caused by heating and shaping.
This process improves the stability of the glass structure and helps ensure reliable performance during installation and long-term use.
Laminated Bonding Process
After the curved glass is formed, one or more interlayers are placed between glass sheets. Through vacuum extraction and high-pressure processing, the glass layers and interlayer are firmly bonded together.
Available interlayer options include:
· PVB film
· EVA film
· SGP film
· Smart film
· LED laminated solutions
Different interlayer materials can be selected according to safety, optical, acoustic, and design requirements.
Quality Inspection
Each custom curved laminated glass product is inspected according to production requirements, including:
· Glass appearance inspection
· Thickness measurement
· Edge quality inspection
· Curvature accuracy checking
· Lamination quality control
· Surface defect inspection
Our ISO 9001 quality management system supports consistent production and reliable product quality.
Enhanced Safety Performance
Curved laminated glass provides excellent safety performance compared with ordinary glass. The interlayer holds glass fragments together after breakage, helping reduce the possibility of falling pieces and improving protection in architectural and transportation environments.
This makes it suitable for applications requiring higher safety standards, including curtain walls, balustrades, stair railings, and vehicle glass.
Flexible Curved Design Possibilities
Unlike conventional flat glass, custom curved glass enables designers to create smooth and continuous curved structures.
Different curvature designs, shapes, dimensions, and colors can be customized according to project requirements, helping achieve distinctive architectural appearances and creative design solutions.
Sound Insulation & UV Protection
The laminated structure helps reduce sound transmission and improves indoor comfort. The interlayer also provides UV filtering performance, helping protect interior materials, furniture, and displays from long-term ultraviolet exposure.
Excellent Durability & Environmental Resistance
With a stable laminated structure, curved laminated glass provides reliable resistance against impact, temperature changes, and daily environmental conditions.
It is suitable for both interior and exterior applications where long-term performance and visual quality are required.
| Item | Specification |
| Product Name | Curved Laminated Glass |
| Glass Type | Clear glass, ultra clear glass, tinted glass, patterned glass, hot melt glass |
| Structure | Glass + PVB/EVA/SGP interlayer + glass |
| Thickness | 6.38mm-50mm (customizable according to requirements) |
| Size | Customized based on project requirements |
| Color | Clear, white, black, blue, yellow, red, purple, and customized colors |
| Interlayer Options | PVB, EVA, SGP, smart film, LED film |
| Edge Processing | Grinding or polishing |
| Drilling | Available |
| Shape | Regular and irregular shapes available |
| Certification | ISO 9001 |
We provide flexible customization services for different architectural and industrial requirements.
Our curved laminated glass can be customized in terms of:
· Glass thickness
· Panel size
· Curvature radius
· Glass type
· Interlayer selection
· Color options
· Edge processing
· Hole drilling
· Irregular shapes
Whether for standard architectural projects or unique design applications, we support customers with professional glass processing solutions based on drawings, specifications, or project requirements.
Glass Material Options
Different glass materials are available to meet various performance and design requirements:
Clear Glass
Provides high transparency and is widely used in architectural glazing applications.
Ultra Clear Glass
Offers improved optical clarity with low iron content, suitable for premium architectural projects and display applications.
Tinted Glass
Provides customized colors while improving solar control and aesthetic effects.
Patterned & Decorative Glass
Creates unique visual effects for interior decoration and specialty applications.
Interlayer Options
PVB Interlayer
A commonly used laminated glass interlayer that provides safety, sound insulation, and UV protection.
SGP Interlayer
Provides higher structural strength and durability for demanding applications.
EVA Interlayer
Suitable for decorative laminated glass applications with various design options.
Smart Film & LED Laminated Glass
Supports customized functional and decorative glass solutions.

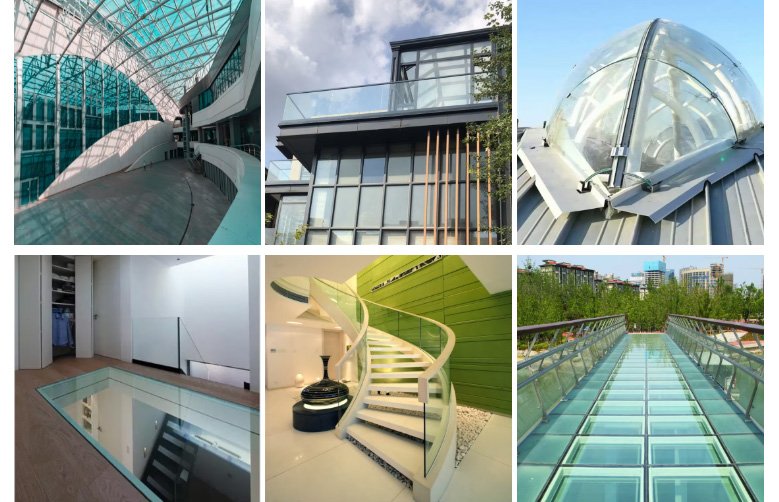

Architectural Applications
Curved laminated glass is widely used in modern architectural projects, including:
· Curtain walls
· Doors and windows
· Glass partitions
· Balcony fences
· Stair railings
· Skylights
· Building facades
· Walkways and glass floors
Its curved appearance helps create modern and visually attractive structures.
Commercial Display Applications
The smooth curved surface makes it suitable for:
· Retail showcases
· Museum displays
· Exhibition structures
· Cosmetic counters
· Mobile phone display cabinets
· Custom display systems
Transportation Applications
Due to its safety and structural advantages, curved laminated glass is also used in:
· Automotive windshields
· Marine glass
· Special vehicles
· Transportation glazing systems
Specialty Applications
Customized curved glass solutions can also be produced for:
· Aquarium glass
· Decorative structures
· Unique interior designs
· Special engineering projects
Professional Hot Bending Manufacturing Capability
With advanced hot bending and laminated glass processing technology, we support customized curved glass production with stable quality and accurate forming.
Flexible OEM & Project Customization
We work with architects, contractors, distributors, and glass buyers to provide customized solutions based on drawings, samples, and technical requirements.
From standard specifications to complex irregular designs, we help customers develop suitable glass solutions.
Reliable Quality Control
Our production process follows strict quality management procedures, including material inspection, processing control, and final product inspection.
ISO 9001 certification supports consistent manufacturing standards and reliable product delivery.
What is the difference between curved glass and curved laminated glass?
Curved glass describes glass that has been shaped into a curved form, while curved laminated glass includes additional laminated layers such as PVB, EVA, or SGP to improve safety, strength, and performance.
Can curved laminated glass be customized?
Yes. Curved laminated glass can be customized according to thickness, size, curvature, color, shape, edge processing, drilling, and interlayer requirements.
Is curved laminated glass safer than normal glass?
Yes. The laminated interlayer helps hold broken glass fragments together, reducing the risk of falling pieces and improving safety performance.
What interlayers can be used for curved laminated glass?
Common interlayers include PVB, EVA, and SGP. Smart film and LED laminated solutions are also available for special design requirements.
What applications use curved laminated glass?
Curved laminated glass is commonly used in curtain walls, windows, doors, partitions, railings, showcases, automotive windshields, marine glass, and specialty architectural projects.
Looking for a reliable curved laminated glass supplier for your architectural or industrial project?
We provide customized hot bent laminated glass solutions with flexible specifications, professional processing capabilities, and reliable quality control.
Contact us to discuss your glass requirements and develop the right solution for your project.
