Drilled Glass for Fireplace Insert is a customized heat-resistant ceramic glass solution engineered for precise fireplace door replacement. Manufactured from original samples, drawings, or measurements, each panel is processed with precision cutting, edge polishing, and dimensional inspection. With excellent thermal shock resistance, high light transmittance, and stable performance at high temperatures, it delivers safe protection and a clear flame viewing experience for fireplace manufacturers, repair specialists, and OEM projects.
Drilled Glass for Fireplace Insert is a precision-processed clear ceramic glass panel designed for fireplace door replacement, insert systems, and custom fireplace applications. Unlike ordinary tempered glass, ceramic fireplace glass features an extremely low thermal expansion coefficient, allowing it to withstand rapid temperature changes and continuous exposure to high heat.
Our drilled fireplace glass is manufactured according to customer drawings, original glass samples, or detailed measurements. With advanced cutting, edge grinding, drilling hole processing, and surface inspection capabilities, each glass panel is produced to achieve accurate installation compatibility and reliable performance.
Made from premium glass ceramic material, this replacement fireplace glass provides excellent thermal shock resistance, high optical clarity, and long-term stability in demanding fireplace environments. It helps fireplace manufacturers, distributors, and maintenance professionals restore safe operation while maintaining a clear flame viewing experience.
Fireplace insert glass plays an important role in protecting users while allowing a clear view of the flame. However, continuous heating cycles, accidental impact, improper installation, or aging seals may eventually cause glass damage or performance issues.
Common reasons for replacing fireplace insert glass include:
Although ceramic fireplace glass has excellent thermal resistance, physical impact or excessive mechanical stress can still cause damage. A cracked glass panel should be replaced immediately to maintain safe fireplace operation.
Smoke residue, surface contamination, or improper cleaning methods may affect visibility. Replacing damaged or heavily worn glass restores a clear flame viewing area.
Using standard glass instead of properly customized fireplace insert glass may lead to installation problems, sealing failures, or unsafe operation. Drilled fireplace glass requires accurate measurements to match the original door structure.
Traditional glass types may not withstand the extreme temperatures inside fireplaces. Heat-resistant glass ceramic provides better thermal stability and is specifically designed for high-temperature applications.
Replacing fireplace insert glass is not only about cutting a piece of glass to size. Accurate processing is essential to ensure the replacement panel fits correctly and performs safely.
Our replacement process includes:
Customers can provide a broken glass sample, technical drawings, existing fireplace door dimensions, or detailed information about hole locations and specifications. Our engineers will analyze the original structure and confirm the required processing parameters.
The glass ceramic panel is cut according to customized dimensions, and edge grinding and polishing are applied to improve handling safety while reducing stress concentration during installation. Available edge treatments include straight edge grinding, polished edges, and customized edge finishing.

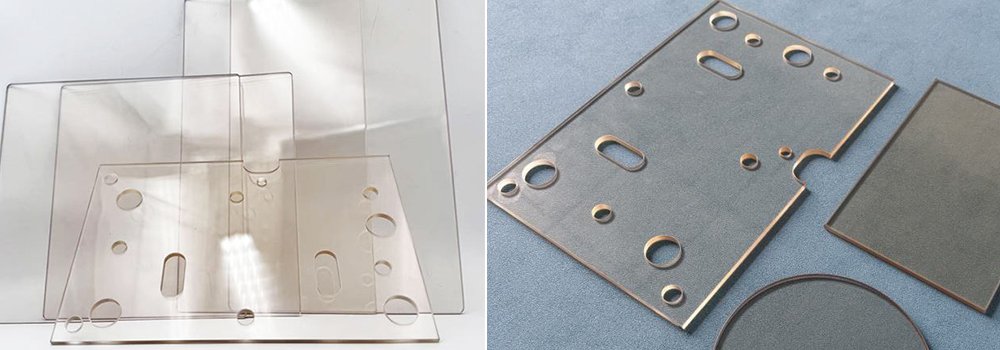

For fireplace inserts requiring mounting holes, we provide accurate drilling based on the required hole diameter, hole position, hole spacing, and installation conditions. Precise drilling helps ensure proper alignment with fireplace door frames and hardware components.
Each processed panel is carefully checked before shipment to confirm dimensional accuracy, hole positioning, surface quality, edge condition, and optical clarity.
Accurate measurement is essential when ordering replacement drilled fireplace glass. Incorrect dimensions may affect installation, sealing performance, and the alignment of mounting holes. Because fireplace glass must fit both the door frame and the hardware structure, we recommend measuring in three layers: overall size, hole geometry, and installation clearance.
Before placing an order, customers should provide:
Measure:
· Overall glass length
· Overall glass width
· Glass thickness
· Corner radius if the glass has rounded corners
· Any notch, slot, or cutout dimensions
Common thickness options:
· 4mm
· 5mm

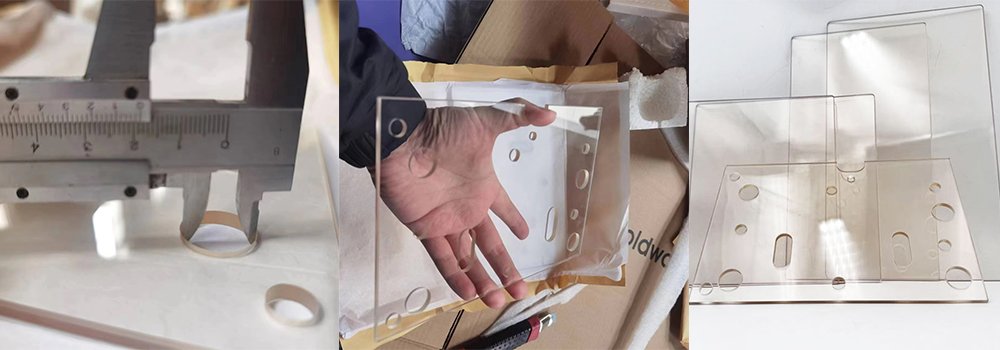

Measurement tip: if the original glass is still available, use a caliper or steel ruler to measure the intact edge rather than a chipped or broken section. If the sample is damaged, measure the door opening and confirm the required clearance before finalizing the size. For irregular shapes, a cardboard template can be more reliable than a single manual measurement.
For drilled fireplace glass, please confirm:
· Number of holes
· Hole diameter
· Center-to-center distance
· Distance from hole center to each edge
· Whether the holes are standard through-holes or require special processing
Practical tip: mark the hole centers on paper first, then compare the template with the fireplace door frame before confirming production. This helps avoid offset errors caused by measuring from a broken edge. If the holes are close to the edge, please provide the exact edge-to-center distance, as even a small deviation may affect installation.
Provide details about:
· Rectangular or customized shapes
· Corner treatment
· Edge polishing requirements
· Printing or marking requirements
· Special cutouts, slots, or ventilation openings
If the original glass is damaged, a straight-on photo with a ruler beside it can help us verify proportions. For non-standard shapes, a cardboard sample or CAD drawing is the most accurate reference. Please also indicate the top and bottom orientation if the glass has directional features.
To speed up confirmation, please send:
· A photo of the original glass
· A dimension sketch with labeled holes
· Thickness requirement
· Quantity needed
· Installation direction or top/bottom orientation
Common mistakes to avoid:
· Measuring only the broken fragment instead of the full original size
· Ignoring hole center positions and measuring only hole diameter
· Forgetting to include corner radius or edge finishing requirements
· Using a flexible tape measure on a rigid glass panel
For the most accurate replacement solution, sending the original broken glass sample or technical drawing is recommended.
Item | Specification |
Material | Heat Resistant Glass Ceramic |
Thickness | 4mm / 5mm |
Heat Resistance Temperature | 660–850℃ |
Working Temperature | Approx. 760℃ |
Density | 2.62–2.67 g/cm³ |
Bending Strength | 180–220 MPa |
Thermal Conductivity | 1.2 W/(m·K) |
Thermal Expansion Coefficient | (0 ± 0.5) ×10⁻⁶/K |
Thermal Shock Resistance | ≤700℃ |
Surface Treatment | Edge Grinding / Edge Polishing |
Processing Capability | Cutting, Drilling, Cutouts, Silk Screen Printing |
Certification | ISO9001 / CE / CCC |
The core advantage of Drilled Glass for Fireplace Insert comes from its glass ceramic structure.
Unlike ordinary glass materials, glass ceramic has an extremely low thermal expansion coefficient. This means the material experiences minimal dimensional change when exposed to rapid temperature fluctuations.
This unique property provides:
Fireplaces create repeated heating and cooling cycles. Ceramic fireplace glass can withstand sudden temperature changes without cracking caused by thermal stress.
With working temperatures reaching approximately 760℃, heat-resistant ceramic glass maintains structural stability during continuous fireplace operation.
High light transmittance and excellent optical performance allow users to enjoy a clear view of burning flames while maintaining fireplace protection.
Compared with standard glass, glass ceramic provides stronger resistance to thermal breakage and maintains reliable performance over extended service periods.
Drilled Glass for Fireplace Insert can be customized for various fireplace systems and replacement projects.
Suitable for:
· Wood burning fireplaces
· Gas fireplaces
· Fireplace inserts
· Stove doors
Manufacturers can customize:
· Glass dimensions
· Hole positions
· Cutouts
· Edge treatments
· Decorative printing
Ideal for:
· Replacement of damaged fireplace windows
· Restoration projects
· Aftermarket fireplace parts supply
Beyond fireplaces, heat-resistant glass ceramic can also be used in:
· Heating equipment windows
· High-temperature observation panels
· Industrial thermal processing equipment
A replacement glass panel must not only resist heat but also match the original installation structure.

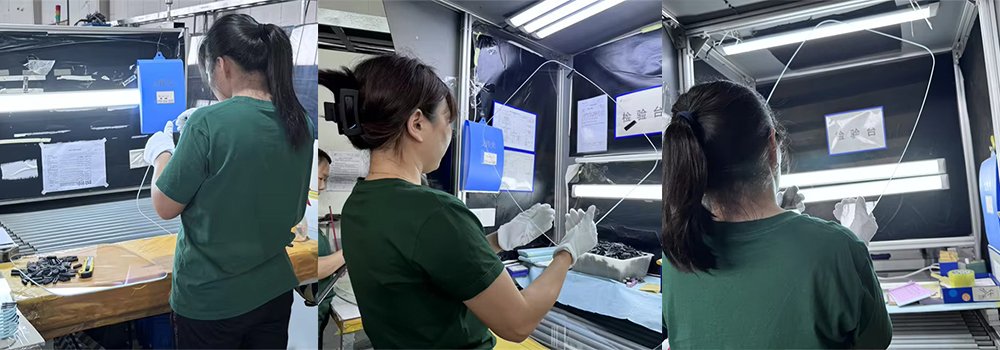

Before shipment, we perform multiple quality checks.
We inspect the overall length and width tolerance, confirm thickness consistency, and verify shape accuracy to ensure the panel matches the required installation dimensions.
Drilled holes are measured carefully to confirm the correct diameter, accurate location, and smooth hole edges so the glass can fit properly with the fireplace door hardware.
Every panel is checked for scratches, visible defects, surface flatness, and optical quality to make sure it meets appearance and performance requirements.
Finished products are carefully packed to prevent damage during international transportation.
To ensure safe delivery of customized fireplace glass, we provide professional protective packaging solutions.
Standard packaging options include:
Suitable for smaller orders and individual replacement glass shipments.
Recommended for bulk orders and international transportation.
Packaging methods can be adjusted according to:
· Product size
· Shipping method
· Customer requirements
Our goal is to ensure each drilled fireplace glass panel arrives safely and ready for installation.
If the original panel no longer fits securely, the frame has been modified, or the retaining system is not standard, a custom replacement is usually the safest option. Comparing the existing opening, mounting points, and door structure can help determine whether a standard part will work.
To speed up the quotation process, please prepare the fireplace model number if available, overall panel dimensions, hole or cutout locations, photos of the door assembly, and any notes about installation constraints. Clear reference information helps reduce errors during production.
Yes. In many cases, a damaged panel can still be used as a reference if enough of the original shape remains. Photos, measurements, and any surviving fragments can help us evaluate the structure and confirm the replacement requirements.
Lead time depends on the complexity of the design, the quantity ordered, and the level of processing required. Simple replacement panels are usually faster to complete, while projects with special shapes or multiple processing steps may require additional time.
Use a soft cloth and a non-abrasive cleaner suitable for fireplace surfaces. Avoid metal scrapers, harsh chemicals, and sudden temperature changes during cleaning. Regular gentle maintenance helps preserve visibility and keeps the panel looking clear.
Before installation, make sure the fireplace is completely cool, the frame is clean, and all retaining parts are in good condition. It is also important to verify that the gasket, clips, and surrounding hardware are properly aligned so the new panel can sit securely in place.
Whether you need a single replacement fireplace glass panel or a large OEM supply solution, our team provides customized heat-resistant glass ceramic processing services.
Send us your glass dimensions, drawings, or original sample information. We can help you develop a precisely fitted Drilled Glass for Fireplace Insert solution with reliable thermal performance and professional processing quality.
Contact our glass specialists today for customized fireplace replacement glass support.
