Fireplace Ceramic Glass is a heat-resistant glass ceramic for fireplace doors, wood stoves, and pellet stoves. It offers strong thermal shock resistance, low expansion, and clear flame visibility for high-temperature use.
Fireplace Ceramic Glass is a specialized glass-ceramic material engineered for fireplace doors, fireplace glass panels, wood-burning stoves, pellet stoves, and other high-temperature heating systems. Its unique low-expansion structure provides outstanding dimensional stability and resistance to thermal shock, making it an ideal solution for fireplace viewing applications. Available in custom sizes, thicknesses, and processing options, it meets the requirements of fireplace manufacturers, distributors, and heating equipment suppliers worldwide.
Mechanical strength | Density | Elastic seeks | Bending strength |
2.6g/cm³ | 93*103Mpa | 35Mpa | |
Thermodynamic Performance | Average coefficient of linear thermal expansion | Identical temperature difference | Thermal shock resistance |
a(20-800℃):(0±0.5)*10-6/K | (RTD) ≤760℃ | Tes max≦760℃ no break | |
Application Temperature and Continuous operating time | Application temperature | Continuous operating time | |
560℃ | 20000h | ||
610℃ | 9000h | ||
660℃ | 4500h | ||
710℃ | 1200h | ||
800℃ | 500h | ||
Chemical performance | Acid resistance | Alkali resistance | |
DIN12116 HGB1 | DIN ISO719 HGB2 | ||
Glass Variety | Transparent microcrystalline glass，Dark brown microcrystalline glass with ball-point | ||
Machinable shape | Square，circle，R-corner and any irregular shape | ||
microcrystalline glass Application | Wave soldering, microwave oven, Convection Oven, electric radiator, fireplaces, induction cooker glass plate. High-Performance flood light, metal halide lamp, infrared dryer,etc and Photovoltaic solar equipment shield | ||
Excellent Thermal Shock Resistance
As a heat resistant fireplace glass, it is designed to withstand rapid temperature fluctuations without cracking or breaking. Its outstanding thermal shock resistance makes it suitable for fireplace systems exposed to frequent heating and cooling cycles.
Near-Zero Thermal Expansion
Its glass-ceramic structure features an extremely low coefficient of thermal expansion, helping maintain dimensional stability and reducing the risk of deformation during long-term heating.
Clear Fireplace Viewing
High optical clarity provides a clear and unobstructed view of the flames, enhancing both the functionality and visual appeal of fireplace systems.
Reliable Performance in Continuous Heating Applications
Designed for sustained operation in high-temperature environments, the material maintains stable performance under continuous heating conditions.
Flexible Customization Options
Available in custom sizes, thicknesses, shapes, edge finishes, and processing configurations to accommodate a wide range of fireplace designs and installation requirements.
Selecting the appropriate glass material is essential for fireplace doors, wood-burning stoves, and other heating appliances. While several types of heat-resistant glass are available on the market, their thermal performance and application suitability can vary significantly. The comparison below highlights the key differences between Fireplace Ceramic Glass, borosilicate glass, and tempered glass in fireplace viewing applications.
| Property | Fireplace Ceramic Glass | Borosilicate Glass | Tempered Glass |
| Fireplace Viewing Panels | Excellent | Good | Limited |
| Thermal Shock Resistance | Up to 700°C | Moderate | Moderate |
| Thermal Expansion | Extremely Low | Low | Higher |
| Continuous High-Temperature Stability | Excellent | Good | Limited |
| Wood Stove Applications | Excellent | Limited | Not Recommended |
| Dimensional Stability | Excellent | Good | Moderate |
Fireplace Ceramic Glass is widely used in heating and combustion systems that require reliable thermal stability, clear flame visibility, and long-term performance under high-temperature operating conditions.
Wood Burning Stoves
Fireplace Ceramic Glass is commonly used as a viewing window in wood-burning stoves, providing excellent resistance to thermal shock while allowing users to safely observe the combustion process.
Pellet Stoves
Its dimensional stability and heat resistance make it suitable for pellet stove systems operating under continuous heating cycles.
Gas Fireplaces
Provides clear flame visibility and dependable performance in residential and commercial gas fireplace installations.

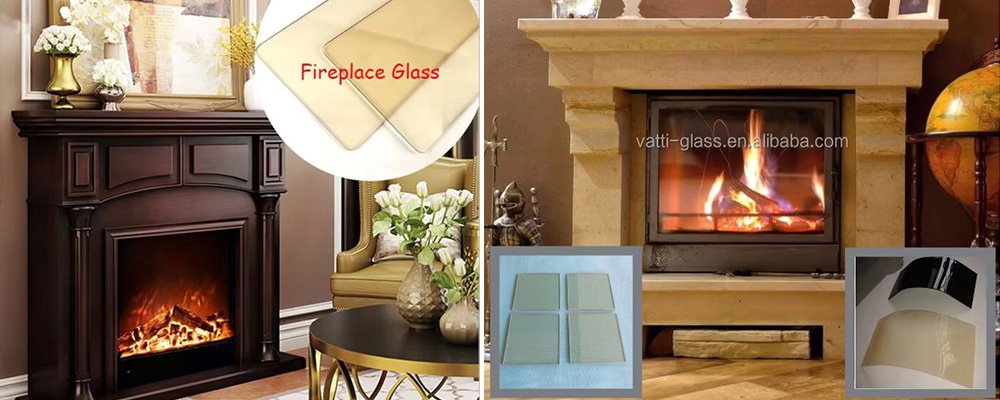

Fireplace Doors
Widely used as ceramic glass for fireplace doors, providing a clear viewing area while maintaining reliable performance in high-temperature environments.
As an experienced fireplace glass manufacturer, We provide professional manufacturing and processing services for Fireplace Ceramic Glass, supporting both standard products and custom fireplace glass projects. Our production system focuses on precision processing, consistent quality, and reliable delivery for global fireplace manufacturers and distributors.
Custom Fireplace Glass Processing
We manufacture custom fireplace glass in various sizes, shapes, and specifications to meet different fireplace design requirements.

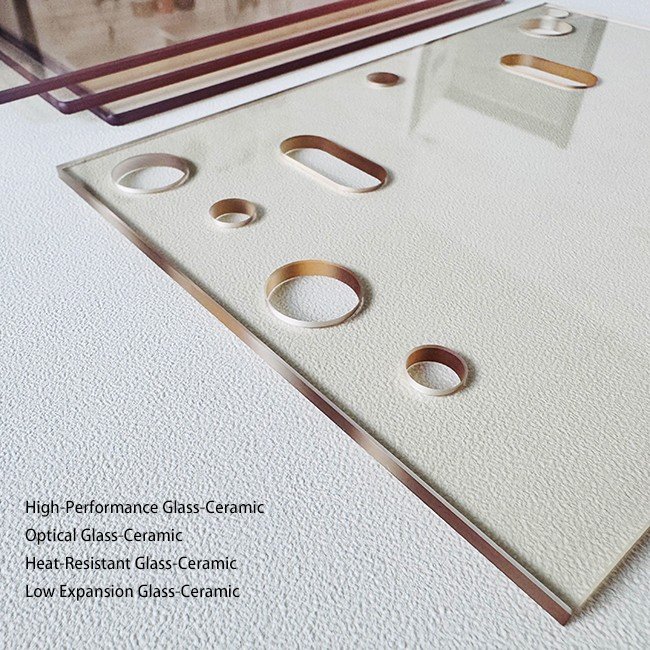

Edge Finishing & Processing
Various processing options are available, including polished edges, flat edges, chamfered edges, drilling, and cut-outs for installation requirements.

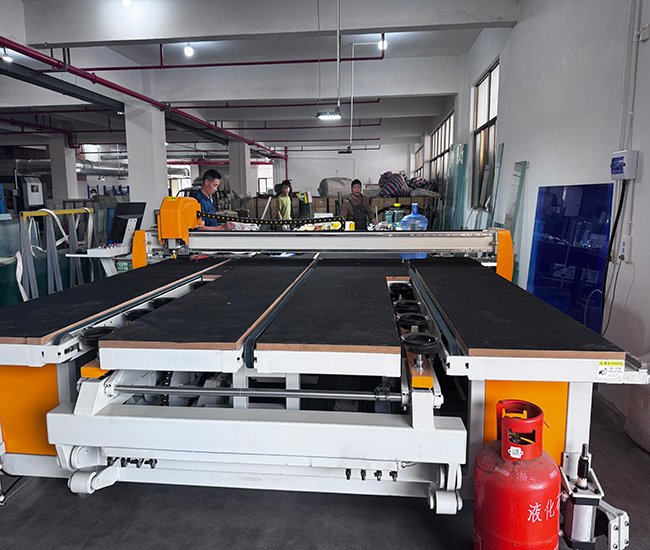

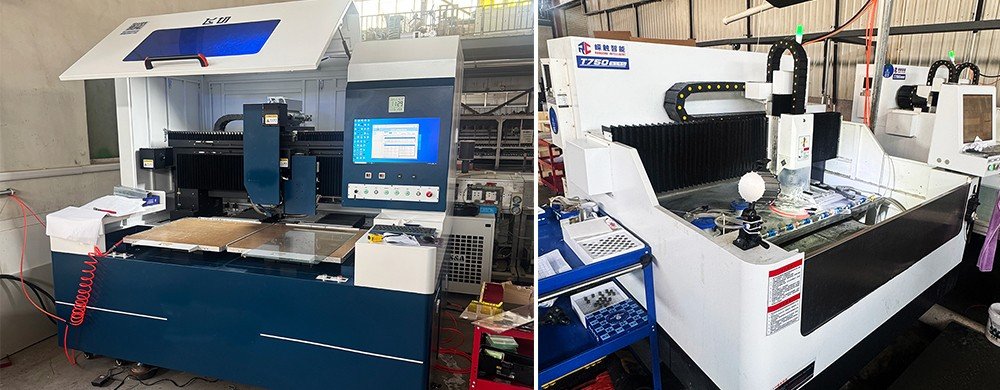

Precision Manufacturing Control
Advanced processing equipment and inspection procedures help maintain dimensional accuracy and product consistency throughout production.
Engineering & Project Support
Our team assists customers with drawing review, specification confirmation, and processing recommendations to help streamline project development.
Flexible Production Capacity
We support sample development, trial orders, and large-volume production, providing flexible manufacturing solutions for different project requirements.
To ensure Fireplace Ceramic Glass arrives safely and in excellent condition, we use protective export packaging and flexible shipping solutions designed for fragile glass products.
Individual Glass Protection
Each Fireplace Ceramic Glass panel is protected with PE film and separated by cushioning materials to prevent scratches, surface damage, and edge impacts during handling and transportation.
Reinforced Export Packaging
Products are packed in strong cartons or export-grade plywood crates to provide additional protection during international transportation and container loading.
Safe Container Loading
Packaging configurations are designed to improve loading stability and reduce movement during sea, land, or multimodal transportation.
Flexible Shipping Options
We support sea freight, air freight, railway transportation, and international express delivery according to customer requirements, project schedules, and order quantities.
Custom Packaging Available
OEM packaging, customized labels, pallet packaging, and special packing requirements can be provided upon request.
Q1: What is Fireplace Ceramic Glass?
Fireplace Ceramic Glass is a high-temperature resistant glass-ceramic material designed for fireplace doors, wood-burning stoves, pellet stoves, and other heating applications. It offers excellent thermal stability, low thermal expansion, and clear flame visibility.
Q2: What is the maximum temperature Fireplace Ceramic Glass can withstand?
Fireplace Ceramic Glass offers thermal shock resistance up to 700°C and is designed for use in high-temperature heating environments. Actual operating performance may vary depending on the appliance design and installation conditions.
Q3: Can Fireplace Ceramic Glass be customized?
Yes. Custom sizes, shapes, thicknesses, edge finishes, drilling, and cut-out processing are available to meet different fireplace manufacturing and installation requirements.
Q4: Do you provide samples?
Yes. Samples can be provided for product evaluation, compatibility testing, and project verification before mass production.
Q5: What should I consider before ordering Fireplace Ceramic Glass?
Before ordering, it is recommended to confirm the required dimensions, thickness, shape, and installation specifications. Buyers should also identify the intended application to ensure the product meets the performance and compatibility requirements of the heating system.
Q6: What packaging methods do you use?
Each glass panel is individually protected using PE film and cushioning materials. Products are then packed in reinforced cartons or export-grade plywood crates to help reduce the risk of transportation damage.
Q7: Do you provide after-sales support?
Yes. We provide technical assistance, order follow-up, and product-related support throughout the purchasing process. If any quality concerns are confirmed after delivery, we will work with customers to provide appropriate solutions according to the agreed terms.
Q8: Can you support OEM and ODM projects?
Yes. We provide OEM and ODM services for fireplace manufacturers, distributors, wholesalers, and private-label brands, supporting customized product and packaging requirements.
Ceramic Glass Features
1. Glass ceramic is resisting to heat and cold, even to extreme temperature changes.
This extraordinary property enables a variety of applications: cooking on glass ceramic appliances day after day , and protecting your fire places or stoves, still enjoying flames view.
2. Among the heat resistant glasses, glass ceramic is really special. Its key property, is low thermal expansion, lower than borosilicate glasses or standard glasses. It means that, unlike most materials, the crystallite glass ceramic will not expand nor contract with heat. It barely changes its dimensions. This is the reason behind efficient and long time resistant cooktops.
|
|
Ceramic Glass Applications
1.Vision panels for room heaters, glass heaters, glass heating tabletops, heat preservation board/panels;
2.Cover panels for heating radiators, drying stand, towel heaters;
3.Cover panels for reflectors and high performance floodlights
4.Cover panels in IR drying appliances5.Cover panels for beamers
6.UV blocking shields
7.Cover panels for kebab grill radiators, electric heating fish bowl
|
|
 |
(Ceramic Glass)Crystallite glass is made of a special glass-ceramic, a material with fascinating properties. This glass-ceramic has extraordinary thermal stability and resists thermal shocks of up to +700 degree C. It stands up to everyday wear and tear in the kitchen. The 4mm thick cooktop panel transmits heat very efficiently, with virtually no heat loss.
