Frosted laminated glass combines the privacy of a frosted appearance with the safety of laminated glass construction. Made with clear, ultra clear, or frosted glass and PVB or SGP interlayers, it can be customized in size, shape, thickness, drilling, and surface effect for architectural projects.
Frosted laminated glass is a safety glass solution made by bonding two or more sheets of glass with an organic polymer interlayer, such as PVB or SGP, through high-temperature and high-pressure processing.
The frosted appearance provides visual privacy while allowing light to pass through, making it suitable for architectural spaces where privacy, safety, and a clean decorative appearance are required. Depending on the project, clear glass, ultra clear glass, or frosted glass can be selected, together with clear or milky-white interlayers.
Unlike monolithic glass, laminated construction helps keep glass fragments attached to the interlayer if the glass is broken. This reduces the risk of loose fragments falling or scattering and helps maintain the integrity of the glazing assembly.
The performance and appearance of frosted laminated glass can be adjusted through different glass combinations, interlayer types, thicknesses, and surface treatments. This allows the glass to be specified according to architectural design and project requirements.
Glass Types
Available glass options include:
· Clear glass
· Ultra clear glass
· Frosted glass
The glass selection can be matched to the required appearance, light transmission, and overall design of the project.
Interlayer Options
VATTI Glass provides different interlayer options, including:
· PVB film
· SGP film
The interlayer can be selected according to the required glass construction and application conditions.
Interlayer Colors
Typical interlayer colors include:
· Clear
· Milky white
A milky-white interlayer can create a more uniform translucent appearance, while a clear interlayer can be combined with appropriately processed glass to achieve the required visual effect.
| Glass Structure | Typical Configuration |
| 3+0.38PVB+3mm | Two 3mm glass sheets with 0.38mm PVB |
| 4+0.38PVB+3mm | 4mm + 0.38mm PVB + 3mm |
| 5+0.38PVB+5mm | 5mm + 0.38mm PVB + 5mm |
| 6+0.38PVB+6mm | 6mm + 0.38mm PVB + 6mm |
| 3+0.76PVB+4mm | 3mm + 0.76mm PVB + 4mm |
| 4+0.76PVB+4mm | 4mm + 0.76mm PVB + 4mm |
| 5+0.76PVB+5mm | 5mm + 0.76mm PVB + 5mm |
| 6+0.76PVB+6mm | 6mm + 0.76mm PVB + 6mm |
| 15+1.52PVB+15mm | 15mm + 1.52mm PVB + 15mm |
| 8+1.52PVB+8+1.52PVB+8mm | Multi-layer laminated construction |
| 10+1.52PVB+10+1.52PVB+10mm | Multi-layer laminated construction |
Privacy Without Completely Blocking Natural Light
The frosted appearance diffuses visibility through the glass, making it useful for spaces that require a higher level of visual privacy. At the same time, the translucent appearance allows natural light to contribute to the interior environment.
This makes frosted laminated glass a practical option for offices, interior partitions, doors, and other architectural areas where privacy and daylight need to be considered together.
Safety Through Laminated Construction
The laminated structure is one of the key functional advantages of this glass. When the glass is broken, the fragments remain attached to the polymer interlayer rather than separating freely.
This helps reduce the risk associated with falling or scattered glass fragments and makes laminated construction suitable for safety-conscious architectural applications.
Flexible Appearance for Architectural Design
The combination of frosted glass, clear glass, ultra clear glass, and different interlayer options provides flexibility for architects, designers, contractors, and glass fabricators.
The final appearance can be specified according to the project’s privacy requirements, decorative concept, glass structure, and processing needs.
Glass Doors
Frosted laminated glass can be used for interior and architectural doors where privacy and safety are both important. The frosted appearance helps reduce direct visibility while the laminated structure provides additional safety.
Interior Glass Partitions
For offices, meeting rooms, commercial spaces, and other interior environments, frosted laminated glass can help divide spaces without creating a completely enclosed visual environment.
Large Glass Walls
Large architectural glass walls can use frosted laminated constructions to create a more private and visually controlled environment while maintaining the clean appearance of glass architecture.
Glass Floors and Other Architectural Elements
Laminated glass constructions can also be considered for glass floors and other architectural elements where the glass assembly needs to provide safety-related characteristics together with a specific visual effect.
The appropriate glass structure should be determined according to the project design, dimensions, loading conditions, installation method, and applicable requirements.
Architectural glass projects often require more than standard sheets. VATTI Glass supports customized processing based on drawings, dimensions, shapes, and other project-specific requirements.
Precision Cutting
Glass can be cut according to the required dimensions to support different architectural and fabrication requirements.
Smooth and Flat Edges
Edge processing is available to achieve smooth and flat glass edges suitable for subsequent fabrication and installation.
Custom Shapes
Non-standard glass shapes can be processed according to customer drawings or project requirements.
Drilled Holes
Drilling and hole processing are available for applications requiring hardware connections, fittings, or installation openings.
Customized Surface Effects
Different surface effects can be discussed according to the desired appearance and application requirements.
Project-Specific Requirements
If your project requires special dimensions, shapes, structures, processing, or other specifications, the requirements can be reviewed before production to determine a suitable glass solution.
| Item | Specification |
| Product Name | Frosted Laminated Glass |
| Glass Type | Clear Glass, Ultra Clear Glass, Frosted Glass |
| Interlayer | PVB Film, SGP Film |
| Interlayer Color | Milky White or Clear |
| Typical Structures | 3+0.38PVB+3mm; 4+0.38PVB+3mm; 5+0.76PVB+5mm; and other configurations |
| Available Sizes | 100×100mm, 300×300mm, 500×500mm, 1000×1000mm, 1830×2440mm, 2440×3660mm, etc. |
| Processing | Cutting, edge processing, shaping, drilling, surface effects |
| Applications | Doors, glass floors, large glass walls, interior glass partitions, etc. |
The final glass specification should be confirmed according to the intended application, required dimensions, glass structure, processing requirements, and project conditions.
VATTI Glass has production and processing equipment covering multiple stages of architectural glass manufacturing, including:
· Glass cutting machines
· Edging machines
· Tempering furnaces
· Autoclaves
· Water jet equipment
· CNC equipment
· Hole punch machines

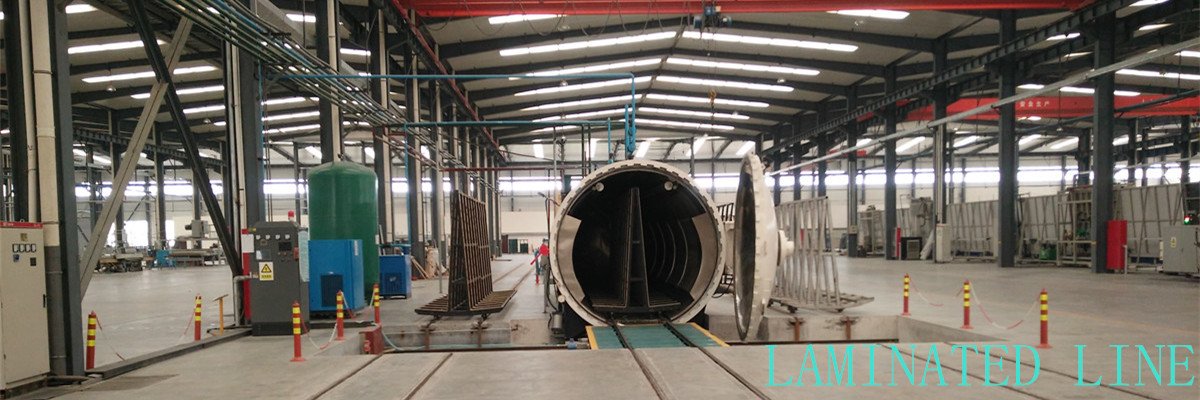

For laminated glass production, the selected glass and interlayer are assembled and processed through high-temperature and high-pressure lamination to form a stable laminated construction.
Quality control is carried out before shipment to check the product against the agreed specifications and customer requirements. Processing accuracy and product tolerance are controlled according to applicable requirements, with tolerance meeting the requirements of American and European standards.
For international B2B projects, product quality and supplier qualification are important considerations alongside technical specifications. VATTI Glass has relevant quality and product certification credentials including ISO 9001, CE, SII, and SGS.
ISO 9001
ISO 9001 supports the company’s quality management framework and provides a structured basis for consistent production and quality control.
CE
CE-related compliance supports applicable European market and project requirements for relevant glass products.
SII
SII certification supports applicable requirements for projects and markets where Israeli standards are required.
SGS
SGS-related testing and inspection documentation can provide additional third-party quality verification where applicable.
Certification and testing documentation can be discussed according to the product, destination market, and specific project requirements.
VATTI Glass has 16 years of experience in glass manufacturing and exporting, with products exported to more than 80 countries worldwide.
For international shipments, glass packaging is an important part of the delivery process. VATTI Glass uses specially designed strong wooden cases to help protect glass during handling, loading, and transportation.
The company is located near Qingdao, one of China’s major container ports, supporting convenient container loading and efficient international shipping arrangements.
A professional sales team provides project-specific communication and support, with an online response time of within 24 hours and a focus on timely delivery and after-sales service.
Can frosted laminated glass be customized in size?
Yes. VATTI Glass supports customized cutting and can provide different glass sizes according to project requirements. Available sizes range from small formats to large architectural panels.
Can holes be drilled in frosted laminated glass?
Yes. Drilling and hole processing are available for projects requiring installation holes, hardware connections, or other openings.
What interlayers are available?
The available interlayer options include PVB and SGP films. The interlayer color can be clear or milky white depending on the required glass appearance and construction.
What glass types can be used for frosted laminated glass?
Clear glass, ultra clear glass, and frosted glass are available. The appropriate option can be selected according to the required appearance and application.
How do I choose the right glass structure?
The appropriate structure depends on factors such as glass size, application, installation conditions, processing requirements, and project specifications. You can provide your project information and VATTI Glass can review the required glass construction with you.
Looking for frosted laminated glass for an architectural or commercial project? Send us your glass requirements, drawings, or project specifications.
To help us evaluate your requirements and prepare a quotation, please provide:
· Glass size
· Glass thickness or required structure
· Quantity
· Glass type
· PVB or SGP requirement
· Interlayer color
· Cutting or shape requirements
· Drilling or other processing
· Application
· Delivery destination
VATTI Glass can review your requirements and recommend a suitable glass configuration for your project.
