Glass Ceramic Panel is a premium surface material engineered for induction cooktops, electric hobs, and high-temperature heating equipment. It features extremely low thermal expansion, excellent thermal shock resistance, and reliable dimensional stability under repeated heating and cooling cycles. The smooth, non-porous surface helps resist scratches, stains, and daily wear while making cleaning simple and efficient.
Glass Ceramic Panel is a premium surface material developed for modern cooking appliances and high-heat equipment, including induction cooktops, electric hobs, built-in cookers, and thermal heating systems. It is produced from refined mineral ingredients and formed through a controlled crystallization process, creating a microcrystalline structure that delivers both the clarity of glass and the heat resistance of ceramic.
Its key advantage lies in its ability to remain stable under repeated heating and cooling cycles. Compared with standard tempered glass, glass ceramic has a much lower thermal expansion rate, which helps it resist cracking, warping, and stress damage caused by sudden temperature changes. At the same time, the surface supports efficient heat transfer to cookware while keeping the surrounding area cooler, improving energy efficiency and helping reduce the risk of accidental burns.
Beyond performance, glass ceramic panels offer a sleek, modern appearance and a surface that is easy to clean and maintain. Available in black, white, and transparent options, they are a reliable choice for appliance manufacturers looking for a material that combines safety, durability, and premium visual appeal in both residential and commercial applications.
Glass ceramic panels are engineered to deliver heat exactly where it is needed. Their low horizontal thermal conductivity helps keep thermal energy concentrated in the cooking zone instead of spreading across the entire surface. This means more efficient heat transfer to cookware, faster cooking response, and less wasted energy during operation.
For appliance manufacturers and end users, this translates into better cooking performance and improved energy utilization. Because heat is not dispersed unnecessarily, surrounding areas remain relatively cooler, which also contributes to a safer and more comfortable user experience.
Glass ceramic panels are manufactured primarily from natural mineral raw materials, including quartz sand, lithium-containing compounds, and other high-purity ingredients. These materials are processed through controlled melting and crystallization to create a durable, high-performance surface.
Compared with many synthetic alternatives, glass ceramic offers a more environmentally responsible material choice while still delivering excellent mechanical and thermal properties. Its long service life also helps reduce replacement frequency, supporting sustainability goals over the full product lifecycle.
One of the biggest advantages of glass ceramic is its ability to perform reliably under repeated heating and cooling cycles. It is designed to withstand continuous operating temperatures up to 750°C and short-term exposure up to 850°C, making it suitable for demanding cooking and heating applications.
This high thermal resistance helps the panel maintain structural stability even in environments with frequent temperature fluctuations. As a result, glass ceramic panels are less likely to warp, crack, or degrade over time, which is especially important for appliances expected to deliver consistent performance over many years.
In addition to its technical performance, glass ceramic offers a clean and modern appearance that enhances the overall look of the appliance. The smooth, non-porous surface creates a premium visual finish that fits well with contemporary kitchen designs.
The surface also resists stains, scratches, and discoloration, helping the panel retain its original appearance even after long-term use. This makes it an excellent choice for manufacturers who want to combine functionality with strong visual appeal and long-lasting product value.
Safety is a major reason why glass ceramic is widely used in cooking appliances. Its near-zero thermal expansion greatly reduces the risk of thermal stress fractures, even when the panel is exposed to rapid temperature changes.
Because the material is highly resistant to heat and thermal shock, it provides a more stable and dependable cooking surface than ordinary glass. This helps lower the risk of sudden breakage during operation and gives users greater confidence in daily use.
Choosing the right glass ceramic panel starts with understanding the appliance it will be used in. Different applications place different demands on the material. For example, induction cooktops require a panel that can efficiently transmit electromagnetic energy while maintaining excellent thermal shock resistance, whereas electric ceramic cooktops need stable heat performance and a surface that can endure repeated heating cycles. Commercial cooking equipment and heating appliances often operate for longer periods and under more demanding conditions, so they typically require panels with higher durability, stronger load-bearing capacity, and more precise processing.
Thickness is another important factor in the selection process. A 4 mm panel is generally suitable for standard residential cooktops, where the operating load is moderate and the design prioritizes a slim, modern appearance. A 6 mm panel is usually preferred for commercial or heavy-duty equipment because it offers greater structural strength and improved resistance to impact, pressure, and thermal stress. In some projects, thickness may also need to be adjusted based on the size of the cooking zone, the weight of the cookware, and the overall appliance design.
Surface appearance should also be considered carefully, especially when the panel is part of the product’s visible design. Black glass ceramic is the most common choice for modern cooktops because it offers a clean, premium look and works well with a wide range of appliance styles. White glass ceramic can be selected for products that require a lighter, more distinctive appearance, while transparent glass ceramic may be used in specialized designs where visibility or unique visual effects are important. The right surface color can help improve both the aesthetic value and market positioning of the final appliance.
Mechanical requirements should not be overlooked during selection. If the application involves larger cookware, frequent movement, or higher mechanical loads, the panel may need to be thicker and processed with enhanced edge finishing to reduce the risk of stress concentration. In addition, cutouts, drilled holes, and special shapes should be planned early in the design stage to ensure the panel can be manufactured safely and perform reliably in long-term use.
We support a wide range of custom fabrication services to meet OEM and appliance manufacturer requirements.
· CNC cutting
· Precision edging
· Drilling
· Notching
· Silk-screen printing
· Decorative patterns
· Logo printing
· Sensor windows
· Special-shaped panels
· Customized dimensions
· Customized thickness
· Customized colors
· Customized surface finishes
· OEM & ODM projects
Our engineering team works closely with customers during product development to ensure manufacturing feasibility and long-term performance.
One of the most important advantages of glass ceramic is its ability to withstand extreme thermal conditions.
Property | Value |
Continuous Working Temperature | 750°C |
Heat Resistance Temperature | 660-850°C |
Thermal Shock Resistance | 180K |
Thermal Expansion Coefficient (0-300°C) | 3.3 ± 0.1 ×10⁻⁶ K⁻¹ |
Annealing Temperature | 560°C |
Softening Point | 820°C |
Rapid heating and cooling cycles frequently cause failure in conventional glass materials. Glass ceramic’s microcrystalline structure minimizes expansion and contraction, significantly reducing thermal stress and extending product lifespan.

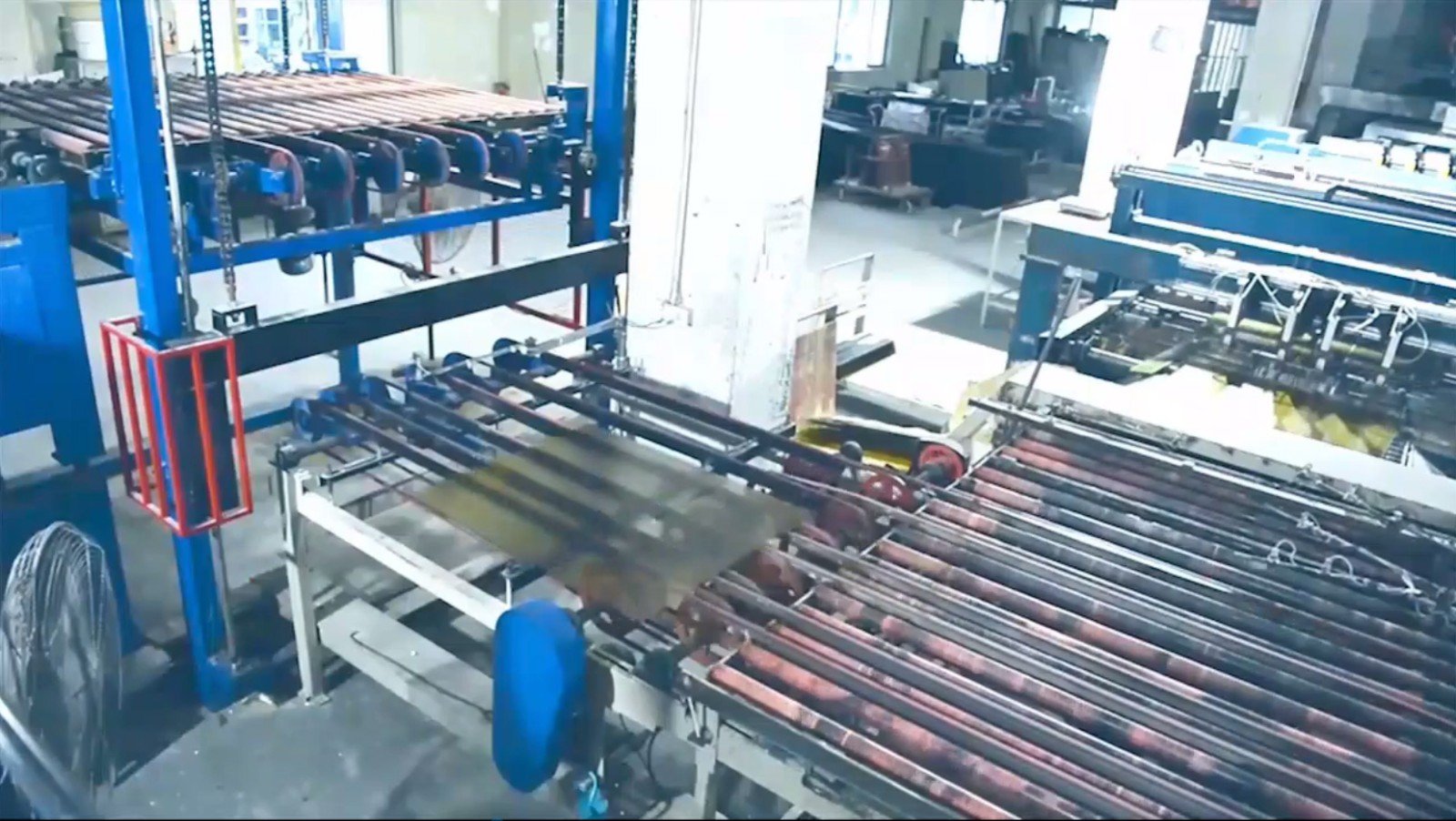

The manufacturing process begins with high-purity mineral raw materials and precise temperature control during crystallization. Each stage is carefully managed to ensure consistent performance and reliable product quality.
Raw material preparation, glass melting, forming, controlled crystallization treatment, precision machining, surface finishing, quality inspection, and packaging are all completed under strict process control. This integrated production flow helps create a microcrystalline structure with superior thermal stability, mechanical strength, and dimensional consistency.
Every production batch undergoes multiple inspections and performance evaluations to ensure the glass ceramic panel can maintain stable performance under repeated heating, cooling, loading, and daily use. Our quality control process is designed to identify surface defects, dimensional deviations, thermal weaknesses, and structural risks before shipment.
Thermal shock resistance is one of the most important performance indicators for glass ceramic panels. During testing, the panel is heated to approximately 850°C and then rapidly cooled using water immersion or other controlled cooling methods. This simulates sudden temperature changes that may occur during real-world operation, such as rapid heating, cookware removal, or accidental contact with cold liquids.
A qualified glass ceramic panel should remain intact without cracking, warping, or visible structural damage after repeated thermal shock cycles. This test helps verify that the material can withstand extreme temperature fluctuations and continue performing reliably in induction cooktops and other high-heat applications.
Glass ceramic panels must also resist mechanical impact during installation, transportation, and daily use. To evaluate this performance, we conduct steel ball impact tests and other controlled mechanical loading tests to simulate accidental cookware drops, utensil contact, and minor external shocks.
This testing helps confirm that the panel surface can maintain structural integrity under practical use conditions. It also allows us to assess whether the panel thickness, edge treatment, and surface finishing are suitable for the intended application.
Because glass ceramic panels are frequently exposed to continuous heat, we perform long-term high temperature resistance testing to verify dimensional stability and structural durability. The panel is subjected to sustained elevated temperatures to evaluate whether it can maintain flatness, surface quality, and mechanical strength over time.
This test is especially important for commercial cooking equipment and high-duty appliances that operate for extended periods. It ensures the panel will not soften, deform, discolor, or lose performance after prolonged thermal exposure.
In addition to thermal and mechanical testing, each batch undergoes a series of detailed inspections to ensure consistent product quality:
· Appearance inspection to check for scratches, bubbles, inclusions, stains, chips, and surface defects
· Optical inspection to verify transparency, color consistency, and visual uniformity
· Strength testing to evaluate resistance to stress and mechanical loading
· Flatness inspection to ensure the panel meets dimensional and assembly requirements
· Dimensional verification to confirm length, width, thickness, hole positions, and cutout accuracy
· Load-bearing evaluation to assess whether the panel can support cookware and operating loads safely
These inspections help ensure that every panel delivered to customers meets both functional and aesthetic requirements.
Our glass ceramic panels are manufactured under strict quality control and backed by internationally recognized certifications that help customers buy with confidence. Our current certifications include:
· ISO 9001
· UL
· CE
· RoHS
· REACH
· PAHS
· EPR
These certifications show our commitment to quality, safety, and compliance. For appliance manufacturers, distributors, and procurement teams, they also offer added confidence that our materials are dependable, ready for market, and suitable for use in global applications.
Glass ceramic panels are widely used in industries requiring thermal reliability and premium appearance.

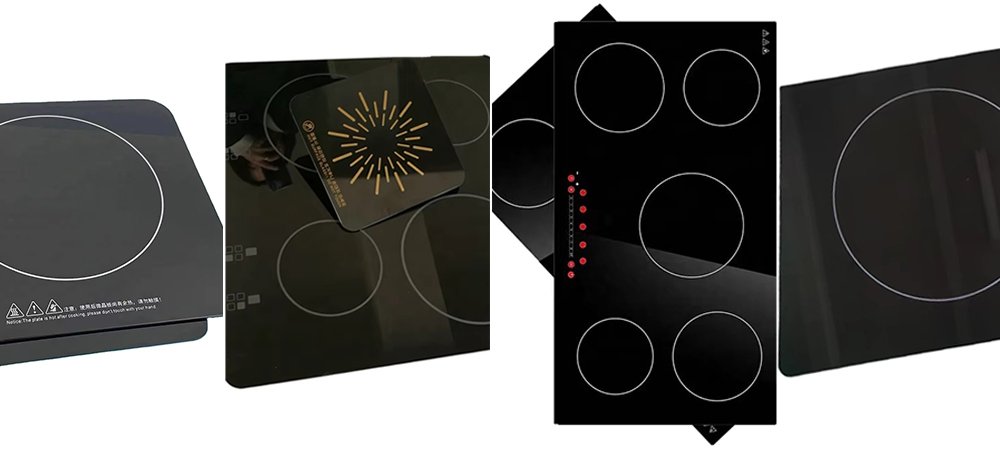

Induction cooktops are the most common and important application for glass ceramic panels. In this type of appliance, the panel serves as the visible cooking surface while allowing electromagnetic energy generated by the induction coil to pass through efficiently to the cookware. The glass ceramic material itself does not generate heat directly, but it must withstand intense localized heating from the pot or pan above it.
Because induction cooking creates rapid temperature changes in a concentrated area, the panel must offer excellent thermal shock resistance, high surface strength, and stable dimensional performance. Glass ceramic panels are ideal for this purpose because they remain structurally stable under repeated heating and cooling cycles, helping reduce the risk of cracking, warping, or surface failure. Their smooth, flat surface also supports efficient heat transfer, easy cleaning, and a premium appearance that is highly valued in modern kitchen appliances.
Electric ceramic cooktops also rely on glass ceramic panels for reliable and long-lasting performance. In these appliances, heating elements beneath the surface generate heat that is transferred through the panel to the cookware. This means the panel must endure continuous exposure to high temperatures while maintaining consistent flatness and mechanical integrity.
Glass ceramic panels are well suited for electric ceramic cooktops because they resist repeated thermal cycling without losing strength or clarity. They provide stable cooking performance, even heat distribution, and strong resistance to surface wear caused by daily use. Their ability to tolerate prolonged high-temperature operation makes them a dependable choice for both residential and commercial cooking equipment, where durability and safety are essential.
Low-cost panels may lack proper thermal stability, resulting in premature failure.
Temperature shock resistance is often more important than maximum temperature ratings.
Poor edge finishing or drilling quality can create stress concentration points.
Compliance certifications help ensure consistent product quality and market acceptance.
Panel thickness should match cookware loads and appliance design requirements.
Our technical team supports customers throughout the entire project lifecycle.
Review application environment, dimensions, and performance targets.
Recommend suitable materials, thicknesses, and processing methods.
Prototype development for testing and validation.
Controlled manufacturing with strict quality assurance.
Packaging optimization, logistics coordination, and technical assistance.
Before placing an order, it is important to evaluate several key factors to ensure the panel meets your application requirements. First, determine the maximum operating temperature needed for your product, as this will directly affect material selection and long-term performance. Next, consider whether the panel will be used in a residential or commercial environment, since different usage scenarios may require different levels of durability and heat resistance. Panel size and thickness should also be defined early in the process to match the appliance design and load requirements. If your project requires custom cutouts, sensor windows, or other special processing, these details should be confirmed before production begins. In addition, buyers should verify which certifications are required for their target market to avoid compliance issues later. Finally, expected production volume should be discussed in advance so that we can recommend the most suitable manufacturing and delivery plan.
To prepare a quotation, please share the panel dimensions, thickness, color, quantity, application type, required processing details, and any drawings or samples if available. If your project has special performance or certification requirements, those should also be included at the inquiry stage.
Yes. We can produce samples or pilot batches for product validation, fit testing, and performance evaluation before moving into full-scale production. This is especially useful for OEM projects and new appliance launches.
Depending on the application, we can provide polished edges, ground edges, chamfered edges, and other precision finishing methods to improve safety, appearance, and installation compatibility.
Panels are typically packed with protective materials to reduce the risk of scratches, edge damage, and breakage during transportation. Packaging methods can be adjusted according to order size, shipping route, and customer handling requirements.
Lead time depends on order quantity, customization complexity, and current production schedule. Standard orders are usually faster, while custom projects may require additional time for tooling, sampling, and approval.
Yes. In addition to cooking appliances, glass ceramic panels can also be applied in heating equipment and other high-temperature systems where thermal stability, surface durability, and a clean appearance are important.
Looking for a reliable glass ceramic panel supplier for induction cooktops, cooktop surfaces, or heating equipment?
Our engineering team can assist with material selection, custom design, prototype development, performance testing, and large-scale production. Contact us today to discuss your project requirements and receive technical support from experienced glass ceramic specialists.
