A glass cooktop can remain in good working condition for many years, but its surface may eventually show signs of wear. A dropped pan, a chipped corner, or repeated exposure to heat can leave the glass cracked, scratched, or discolored. In some cases, replacing the glass panel can restore the cooktop without replacing the entire appliance.
The process is not always as simple as finding a panel with a similar appearance. Cooktops vary in size, shape, thickness, heating-zone layout, edge design, and mounting structure. Understanding these details can make it easier to identify a replacement that fits properly and suits the original appliance.
The need for a replacement is often apparent from the condition of the surface. A careful inspection can help distinguish between minor cosmetic wear and damage that requires more attention.

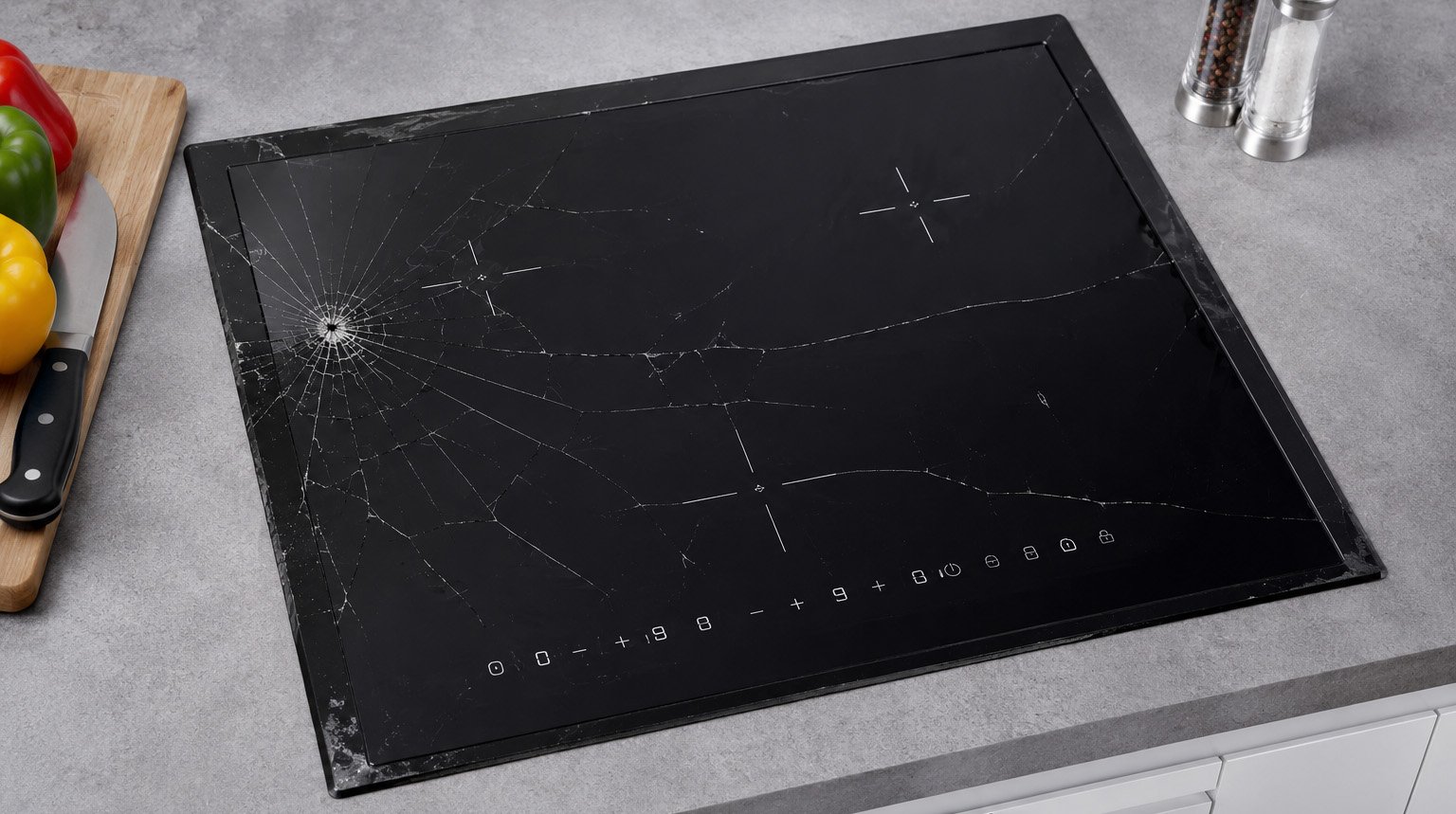

Cracks can appear in the middle of the panel, around a heating zone, or along an edge. Even a small crack may become more noticeable after repeated use.
Look for:
· Hairline cracks
· Cracks extending from the edge
· Chipped corners
· Broken sections
· Impact marks
· Damage near heating zones
A cracked or broken panel should be assessed before the cooktop is used again. A strong impact may also have affected the surrounding frame and components, particularly if it caused the damage.
Light marks are common on frequently used cooktops, but deeper scratches and surface defects can change the appearance and feel of the glass.
Other signs of wear may include:
· Persistent discoloration
· Burn marks
· Surface pitting
· Rough areas
· Damaged or faded markings
Cleaning may improve the appearance of ordinary residue, but it will not remove structural damage or deep scratches.
A cooktop surface can gradually lose its original appearance after years of heating and cooling. Older panels may become dull, scratched, or discolored even when there is no obvious breakage.
In this situation, the condition of the complete appliance matters. If the frame, controls, and heating components are still in good condition, a replacement panel may be one option to explore.
The original panel should be measured and examined before a replacement is selected. A panel that looks similar may still be unsuitable if its dimensions or edge design differ from the original.
Accurate measurements are essential. Depending on the cooktop design, measure:
· Overall width
· Overall depth
· Thickness
· Corner radius
· Internal openings
· Control-area dimensions
· Mounting points
The original glass, appliance manual, technical drawing, or manufacturer information can help confirm these measurements. Photographs are also useful, especially when the panel has an unusual shape or several openings.
The thickness of the replacement glass should correspond to the original design. It affects how the panel sits within the frame and how it relates to the surrounding components.
Do not choose thickness by appearance alone. If the original specification is unavailable, it may be necessary to consult an appliance technician or a glass manufacturer before ordering.
Cooktop panels are exposed to high temperatures and repeated thermal changes. For this reason, manufacturers commonly use heat-resistant glass or glass-ceramic materials.
When comparing materials, it can be helpful to ask about:
· Heat resistance
· Thermal shock performance
· Mechanical strength
· Surface durability
· Material composition
· Relevant testing standards
The material should be appropriate for the intended cooktop and compatible with its heating system and supporting structure.
The shape of the panel affects both its appearance and its fit. Details that may need to be matched include:
· Rounded corners
· Beveled edges
· Polished edges
· Ground edges
· Special edge profiles
· Irregular outlines
The edge should be finished smoothly and accurately, particularly where it meets the frame or other supporting parts.
Replacement glass is available in different colors and finishes. Depending on the original design, options may include:
· Black glass
· Clear glass
· White glass
· Glossy surfaces
· Matte surfaces
· Printed surfaces
The markings on the panel may also need to correspond with the original heating zones, controls, or display areas.
Before ordering, compare the original panel with the available specifications. A simple checklist can help avoid overlooking small but important details.
Record:
1. Overall width
2. Overall depth
3. Thickness
4. Corner radius
5. Openings
6. Edge shape
7. Heating-zone positions
Measurements should be taken carefully, especially if the original glass is damaged or has shifted within the frame.
The heating-zone layout should correspond with the original cooktop. Check:
· Number of heating zones
· Diameter of each marked zone
· Distance between zones
· Position relative to the panel edges
· Location of the control area
These details affect both the appearance and the way the cooktop is used.
The glass edge rests against or connects with the cooktop's supporting structure. Differences in edge treatment or panel geometry may affect installation.
If the original panel has clips, brackets, openings, or other mounting features, photos and technical drawings can help.
Replacing a cooktop glass panel requires careful handling. The general process may involve:
· Disconnecting the appliance from its power supply
· Removing the damaged panel
· Inspecting the frame and supporting parts
· Cleaning the installation area
· Positioning the replacement panel
· Checking alignment
· Securing the panel according to the appliance design
· Inspecting the finished installation
The exact procedure varies by appliance. Only someone with the appropriate knowledge and qualifications should handle electrical connections.
Some panels may be relatively straightforward to replace, while others require access to electrical components or complex mounting parts.
Before attempting the work, confirm that:
· The appliance is completely disconnected from power.
· The replacement panel has the correct dimensions.
· The material is suitable for the application.
· The mounting components are compatible.
· The panel can be positioned without force.
If the structure or wiring is unfamiliar, professional assistance can help reduce the risk of damage or incorrect installation.
A qualified technician can help when the cooktop has a complex design. They can also help when you need to disconnect the electricity. They can also help when the damage goes beyond the glass.
Professional installation also lets you check the frame, seals, mounting points, and nearby parts. You can do this before the replacement is finished.
When a standard replacement is not available, the supplier's ability to reproduce the original panel becomes important.
It may be useful to ask whether the supplier can provide:
· Custom dimensions
· Different glass thicknesses
· CNC cutting
· Edge grinding and polishing
· Drilling and cutouts
· Glass printing
· Heat-resistant materials
· Custom shapes
· Sample production
· OEM specifications
· Quality inspection
Clear measurements, photographs, drawings, and information about the original appliance can make the discussion more accurate.
A glass cooktop replacement is best considered by looking closely at the original panel and the appliance around it. Size, thickness, material, heat resistance, edge treatment, surface finish, markings, and mounting details all contribute to a proper fit.
For a cracked, broken, deeply scratched, or visibly worn surface, replacing the panel may help extend the cooktop’s useful life. Consider the condition of the internal components and supporting structure at the same time.
The most suitable replacement is not necessarily the panel that looks closest at first glance. It should also correspond with the original dimensions, material properties, processing details, and installation requirements.
When an exact replacement is hard to find, a custom-made panel can be a good option. It works well for older appliances, repairs, and special uses.
