Laminated Glass Flooring is a multi-layer safety glass solution designed for floor panels, walkways, stair treads, viewing areas, and other architectural applications where transparency and safety are required. It is typically manufactured by bonding three or more glass layers with PVB or SGP interlayers between each glass sheet through controlled heat and pressure.

The multi-layer structure helps keep broken glass fragments bonded to the interlayer if breakage occurs, reducing the risk of loose fragments falling from the panel. For projects requiring additional traction, the exposed surface can be processed with an anti-slip treatment for indoor or outdoor flooring applications.

Multi-Layer Structure for Floor Safety

Unlike standard laminated glass used for windows or partitions, laminated glass flooring is configured according to the requirements of floor applications. Multiple glass layers are bonded with an interlayer between each layer, creating a composite panel rather than a single glass sheet.

PVB and SGP interlayers are available depending on the project requirements. The final glass build-up can be selected according to panel size, application conditions, loading requirements, support configuration, and other project-specific factors.

For walk-on or structural flooring applications, the glass specification and support system should be determined according to the project’s engineering requirements rather than relying on a standard configuration alone.

Anti-Slip Surface Options

A glass floor requires appropriate surface traction, particularly in areas exposed to moisture or frequent foot traffic. Our laminated glass flooring can be supplied with surface treatments according to the intended application.

Available surface options include:

· Acid-etched anti-slip patterns

· Sandblasted surfaces

· Ceramic frit surface treatment

· Customized anti-slip textures based on project requirements

These treatments can improve surface slip resistance while maintaining the visual characteristics required for architectural glass flooring.

Glass and Interlayer Configurations

Different glass types and interlayer combinations can be selected to meet project-specific appearance and performance requirements.

Standard Thickness Options

Common laminated glass flooring configurations include:

Custom glass thickness and interlayer combinations are available based on panel dimensions, support conditions, project requirements, and customer specifications.

Custom Glass Floor Panel Sizes

Standard sizes available from the supplied specifications include:

· 300 × 300 mm

· 500 × 500 mm

· 1000 × 1000 mm

· 2000 × 1000 mm

Other dimensions can be produced according to customer requirements. Customization can be discussed based on panel size, thickness, glass type, interlayer, surface treatment, and intended application.

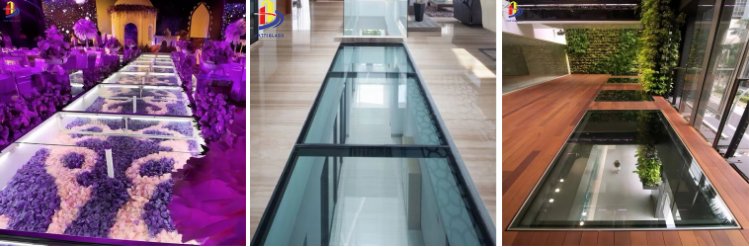

Laminated Glass Flooring Applications

Laminated glass flooring can be configured for a variety of architectural floor applications, including:

Glass Floor Panels

Transparent or tinted laminated glass panels can create a modern walking surface while allowing visual connection between different building levels.

Glass Walkways and Bridges

Laminated glass floor panels can be used for interior walkways, viewing platforms, bridges, and other architectural areas where visual openness is desired.

Glass Stair Treads

Multi-layer laminated glass can be customized for stair applications, with anti-slip surface treatment available according to project requirements.

Indoor and Outdoor Flooring

With suitable glass construction and surface treatment, laminated glass flooring can be specified for selected indoor and outdoor architectural applications.

Underground Light Panels

Glass floor panels can also be incorporated into areas designed to transmit natural or artificial light between different levels.

Why Choose Laminated Glass Flooring?

Safety After Breakage

If the glass breaks, fragments can remain attached to the PVB or SGP interlayer rather than scattering freely.

Multi-Layer Construction

Three or more glass layers can be combined to create a laminated panel suitable for project-specific floor applications.

Anti-Slip Surface

Acid etching, sandblasting, ceramic frit, and other surface treatments can be considered where additional traction is required.

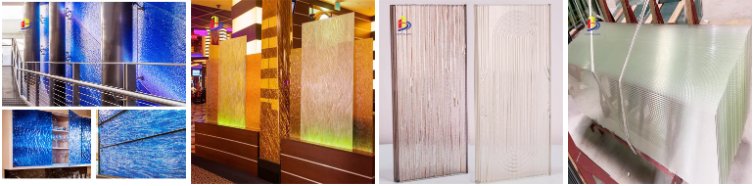

Flexible Appearance

Clear, ultra clear, tinted, and colored interlayer options provide different visual effects for architectural designs.

Custom Manufacturing

Glass thickness, panel dimensions, interlayer selection, color, and surface treatment can be customized according to customer and project requirements.

Manufacturing and Quality Control

Qingdao Vatti Glass Co., Ltd. has specialized in glass manufacturing since 1998, with production capabilities covering laminated glass, tempered glass, bulletproof glass, art glass, special glass, and other architectural and industrial glass products.

For laminated glass orders, production and quality follow-up covers the major stages from order confirmation and production to quality inspection and delivery. The supplied quality process specifies a pre-production sample before mass production and final inspection before shipment.

This process helps procurement teams confirm product requirements before volume production and verify finished products before dispatch.

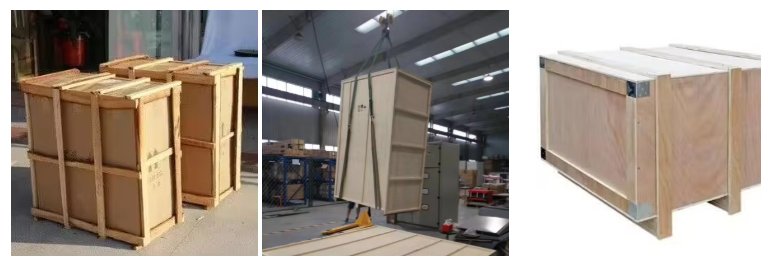

Packaging and Shipping

Laminated glass flooring panels are separated with suitable protective materials and packed in sturdy export wooden cases to reduce the risk of damage during handling and transportation.

Available shipping arrangements include:

· Ocean shipment for larger quantities

· DHL or FedEx for suitable small-quantity orders

· FOB Qingdao Port

· Destination customs clearance and delivery assistance can be arranged when required, with additional costs applying

The final packaging and shipping method can be discussed according to order quantity, panel size, destination, and transportation requirements.

FAQ About Laminated Glass Flooring

1.Is laminated glass flooring the same as ordinary laminated glass?

No. Both use an interlayer between glass sheets, but flooring applications require the glass build-up and support conditions to be considered specifically for floor use. The final configuration should be selected according to the project requirements.

2.Can laminated glass flooring be made with PVB or SGP?

Yes. PVB and SGP interlayers are both available in the supplied product specifications. The appropriate interlayer can be selected according to project requirements.

3.Can the glass floor surface be made anti-slip?

Yes. Anti-slip processing can be provided according to the intended application. Options include acid-etched patterns, sandblasting, and ceramic frit treatments.

4.Can the color of laminated glass flooring be customized?

Yes. Clear, ultra clear, tinted glass and colored PVB interlayers can be selected. Available PVB colors include milky white, black, French green, light blue, bronze, light grey, dark grey, and ocean blue.

5.Can you produce custom-size laminated glass floor panels?

Yes. In addition to standard sizes, custom dimensions can be produced according to customer requirements. Panel dimensions should be confirmed together with glass thickness, interlayer, support conditions, and intended application.

Request a Custom Laminated Glass Flooring Quote

Send us your required glass size, thickness, glass type, interlayer, surface treatment, quantity, and application. Our team can review the specifications and provide a suitable laminated glass flooring configuration for your project.
