Laminated Security Glass is a high-strength safety glass designed for impact resistance and security protection. It uses multiple glass layers bonded with interlayers to prevent penetration and keep fragments bonded after breakage, widely used in banks, villas, and commercial buildings.
Laminated Security Glass is a high-performance safety glass constructed by bonding two or more layers of high-strength glass with transparent interlayer materials. These interlayers typically include PVB film, SGP film, PU film, or PC polycarbonate sheets. The structure is formed under high temperature and high pressure to create a durable, impact-resistant glass system.
This type of laminated glass is specifically engineered for security applications where protection against forced impact, break-ins, and accidental damage is required. Unlike ordinary glass, Laminated Security Glass does not shatter into loose fragments when broken. Instead, the interlayer holds the broken pieces firmly in place, maintaining the structural integrity of the glass panel and continuing to provide a protective barrier.
Even under strong external impact, the glass may crack, but it will not fully collapse or fall apart. This makes it a reliable safety solution for environments where human safety and property protection are critical.
Laminated Security Glass is part of our security glass solutions, covering different protection levels for architectural and commercial applications.
These solutions are further extended into other product categories, such as Bulletproof Glass for higher security requirements and Tempered Glass for general impact resistance.
Laminated Security Glass is available in multiple specifications to meet different security and engineering requirements.
| Item | Specification |
| Thickness | 13mm – 89mm |
| Size | 300×300mm / 420×420mm / 500×500mm / 1000×1000mm / Custom |
| Glass Type | Clear glass / Ultra clear glass / Tinted glass |
| Interlayer | PVB film / SGP film / PU film / PC plate |
| Edge Processing | Flat polished / beveled / custom edges |
| Drilling | Available |
| Shape | Standard / Irregular shapes |
| Certificatio | ISO 9001 |
The core of Laminated Security Glass is the interlayer bonding system. During manufacturing, multiple glass layers are combined with polymer interlayers under controlled heat and pressure. This process creates a permanent adhesive bond between glass and interlayer.
When impact occurs, the outer glass layer absorbs initial energy and may crack, but the interlayer acts as a flexible energy absorber. It distributes impact forces across the surface and prevents penetration. At the same time, it keeps glass fragments attached, reducing the risk of injury from flying shards.
This structure allows Laminated Security Glass to maintain its barrier function even after damage, which is a key advantage over standard glass products.

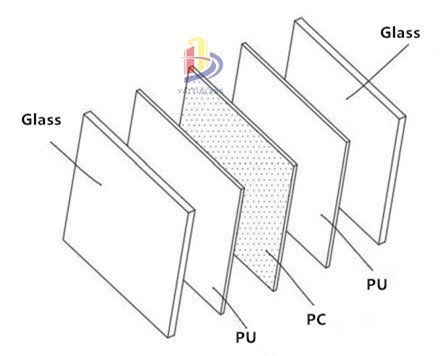

Laminated Security Glass is composed of carefully selected materials to achieve different levels of performance:
Glass Layers:
Clear glass, ultra-clear glass, or tinted glass can be used depending on optical and design requirements.
Interlayer Materials:
PVB film for general safety applications, SGP film for higher strength and structural performance, PU film for enhanced flexibility, and PC polycarbonate sheets for extreme impact resistance.
These materials work together to ensure strong adhesion, high transparency, and long-term durability.
Laminated Security Glass offers multiple performance advantages:
High Impact Resistance
It is designed to withstand strong external forces such as blunt impact, forced entry attempts, or accidental collisions.
Anti-Penetration Structure
Even when cracked, the glass maintains its barrier function and prevents objects from passing through.
Fragment Bonding Safety System
Broken glass remains attached to the interlayer, preventing dangerous scattering of shards.
Long-Term Structural Stability
The laminated structure ensures durability and stable performance over time under different environmental conditions.
Custom Manufacturing Capability
Thickness, size, shape, and edge processing can all be customized based on project requirements.

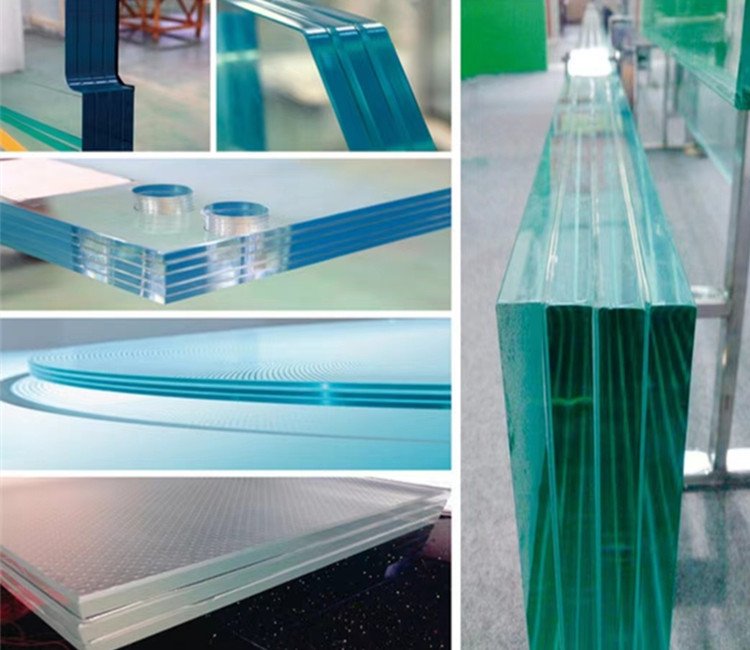

To meet different engineering requirements, Laminated Security Glass supports multiple processing options:
Precision cutting ensures accurate dimensions for installation. Edge polishing provides smooth and safe finishing. Drilling holes can be added for hardware installation such as frames, locks, or mounting systems. Irregular shapes can also be produced for architectural design needs.
In addition, surface customization is available depending on functional or aesthetic requirements. This includes transparency control, tint adjustment, or special finishing effects for different project environments.
These processing capabilities allow the product to be used in both standard construction and complex architectural designs.
Due to its strong protective performance, Laminated Security Glass is widely used in high-security and high-value environments:
Residential Buildings
Commonly used in villa doors and windows to enhance home safety and prevent forced entry.
Financial Institutions
Used in banks and financial counters where security and protection of assets are critical.
Luxury Retail Stores
Ideal for jewelry stores, luxury boutiques, and high-end display windows requiring theft resistance.
Cultural Institutions
Applied in museums and exhibition halls to protect valuable artifacts and exhibits.
Commercial Buildings
Used in storefront security systems and commercial glass façades requiring impact resistance.
These applications demonstrate its versatility across both architectural and security-focused industries.
Laminated Security Glass is carefully packed to ensure safe transportation and delivery. Each glass panel is separated with protective materials and placed in reinforced wooden crates to prevent damage during shipping.
For international orders, standard export packaging methods are used, including shock-proof protection, moisture resistance, and stable pallet loading for container transportation.
Custom packaging solutions are available based on project size and shipping requirements.
1.Can Laminated Security Glass stop break-ins?
Yes. It is designed to resist forced impact and delay intrusion attempts by maintaining structural integrity after cracking.
2.Does Laminated Security Glass shatter like normal glass?
No. Even if broken, the interlayer holds the fragments together, preventing scattering and maintaining safety.
3.Can Laminated Security Glass be used for shops and banks?
Yes. It is widely used in retail stores, banks, and jewelry counters for security protection against theft and impact.
4.Is Laminated Security Glass customizable?
Yes. Thickness, size, shape, and edge processing can be fully customized based on project requirements.
