Metal Laminated Glass combines architectural glass with a metal wire or metal mesh layer embedded within a laminated structure. Manufactured by our experienced glass production team, it delivers a distinctive glazing solution with visible texture and pattern while retaining the safety characteristics of laminated glass.

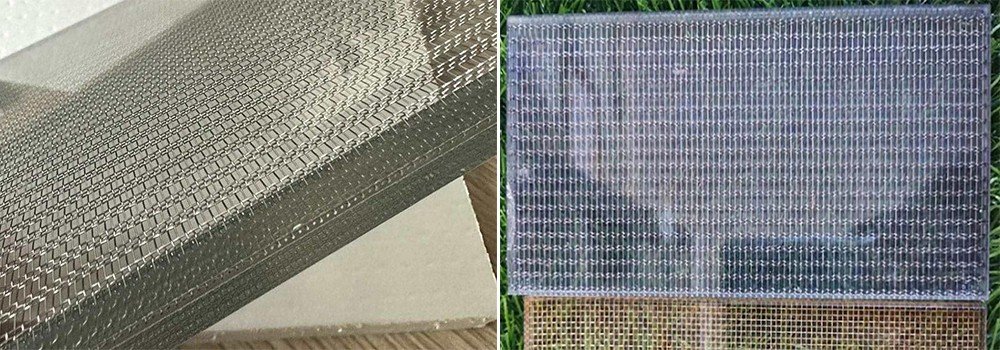

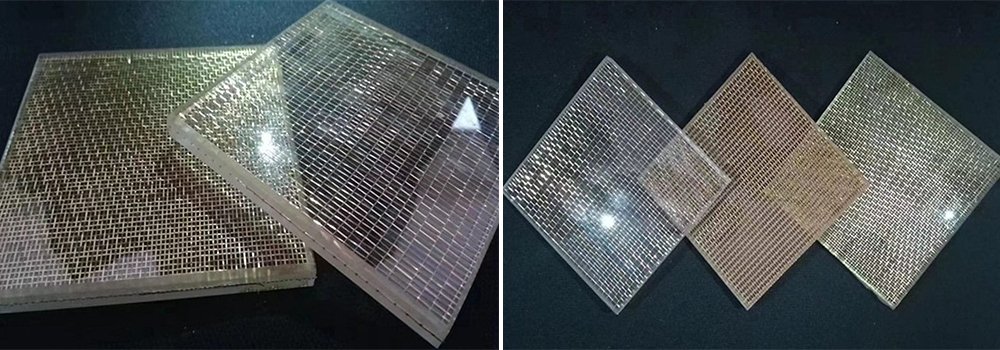

Metal Laminated Glass is a type of decorative laminated glass made by placing a metal wire or metal mesh layer between glass sheets and bonding the layers with an interlayer.
The exact construction depends on the selected glass, metal layer, interlayer, thickness, and manufacturing process.
Common glass options include clear glass, ultra-clear glass, tinted glass, and patterned glass. Interlayers such as PVB, EVA, and SGP may be selected for different performance and design requirements.
The embedded metal layer creates a visible pattern within the glass rather than simply applying a decorative finish to the surface. This makes it suitable for projects where designers want transparency, texture, pattern, and a more distinctive architectural appearance.
Embedding metal wire or mesh into laminated glass provides more than a decorative effect. It creates an integrated glazing structure in which the metal pattern becomes visually protected between the glass layers.
Metal wire introduces lines, grids, geometric patterns, or other visual textures that are difficult to achieve with conventional clear glass alone.
The density and pattern of the metal layer can influence how clearly objects can be seen through the glass. A denser pattern can provide greater visual screening while still allowing light to pass through.
The laminated construction helps keep glass fragments together if the glass is broken, depending on the specific glass and interlayer configuration.
Instead of attaching a metal decorative element onto the finished glass surface, the metal layer is incorporated into the laminated structure. This provides a cleaner architectural appearance and protects the decorative layer from direct contact.
The metal layer has a direct influence on the visual character of the finished glass.
A lower wire density creates a lighter, more transparent appearance and allows the background to remain more visible.
A higher density creates a stronger visual pattern and can increase the screening effect.
Depending on available materials and processing capabilities, metal wire or mesh can be incorporated in different geometric or repeated arrangements.
Pattern selection can be coordinated with the architectural style, surrounding materials, and desired visual effect.
Metal laminated glass is not necessarily opaque. The amount of visible background depends on the glass type, metal pattern, wire thickness, mesh density, lighting conditions, and viewing distance.
For projects requiring a specific level of privacy or transparency, sample evaluation is recommended before mass production.

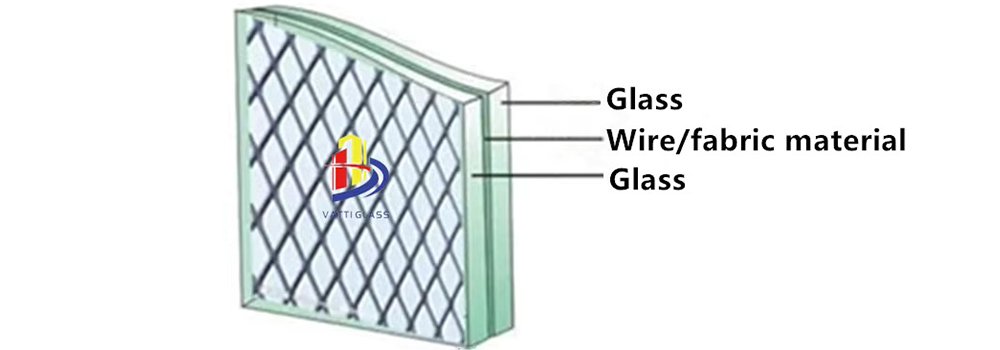

The performance of metal laminated glass depends on how the individual layers work together.
The glass provides the primary transparent surface and can be selected according to appearance, thickness, optical requirements, and processing needs.
Available options may include:
· Clear glass
· Ultra-clear glass
· Tinted glass
· Patterned glass
· Hot-melt decorative glass
· Other compatible architectural glass
The metal layer provides the characteristic visual pattern and texture. Its material, wire thickness, opening size, density, and pattern can affect the appearance of the finished product.
The interlayer bonds the glass layers and helps retain broken glass fragments after breakage. PVB, EVA, and SGP are possible options depending on the intended application and required performance.
The complete assembly is produced by carefully controlling layer alignment, lamination, and finishing. Proper manufacturing is essential to maintain visual quality and reliable bonding throughout the panel.
Feature | Metal Laminated Glass | Conventional Decorative Glass |
Metal pattern | Embedded inside the laminated structure | Usually not integrated into the glass |
Visual effect | Wire, mesh, grid, or custom metal texture | Often created by coating, printing, etching, or patterning |
Safety structure | Laminated construction available | Depends on the glass type |
Privacy potential | Can be adjusted through metal density and pattern | Depends on surface pattern or opacity |
Design flexibility | Glass, metal, interlayer, and pattern can be combined | Usually focused on the glass surface |
Surface exposure | Metal layer is protected inside the laminate | Decorative effect may be located on the surface |
Custom processing | Cutting, edge finishing, drilling, and irregular shapes available | Depends on the selected glass |
The main advantage is not simply the presence of metal. It is the ability to integrate a decorative metal pattern into a laminated glass structure while maintaining a clean architectural surface.
Metal Laminated Glass is well suited to architectural projects that require both a distinctive decorative appearance and functional glazing performance.
Use it for reception areas, decorative partitions, feature walls, entrance areas, and interior architectural elements.
Metal-patterned laminated glass can create visual separation between workspaces without completely blocking natural light.
The distinctive metal texture can be used in lobbies, guest areas, corridors, decorative partitions, and feature installations.
It can be incorporated into interior partitions, decorative panels, doors, screens, and other customized architectural elements.
Metal laminated glass provides an alternative to solid partitions where designers want a balance between separation, light transmission, and decorative detail.
Every architectural project has different dimensions, patterns, installation conditions, and appearance requirements. Metal laminated glass can therefore be customized beyond standard panel sizes.
Choose from compatible glass options such as:
· Clear glass
· Ultra-clear glass
· Tinted glass
· Patterned glass
· Other decorative glass options
The wire or mesh pattern can be selected according to the desired visual effect, privacy level, and design concept.
PVB, EVA, or SGP can be considered according to the required application and performance requirements.
Typical configurations include:
· 3 + 0.38 + 3 mm
· 4 + 0.38 + 4 mm
· 5 + 0.76 + 5 mm
Other constructions can be developed according to project requirements.
Example processing sizes include:
· 300 × 300 mm
· 500 × 500 mm
· 500 × 1000 mm
· 1000 × 1000 mm
Larger or project-specific dimensions should be evaluated according to the selected glass, metal structure, lamination process, transportation requirements, and installation conditions.
Available edge treatments include:
· Ground edges
· Polished edges
Drilled holes and irregular shapes can be produced when required by the installation design.
The final visual effect can be coordinated through glass type, metal pattern, interlayer, color, and other compatible decorative treatments.
For project orders, providing drawings or dimensional specifications before production helps determine the most suitable glass construction and processing method.
Consistent quality is particularly important for metal laminated glass because the finished appearance depends on the alignment and condition of multiple layers.
Our production process can include:
Glass is cut according to the required dimensions before subsequent processing.
Edges can be ground or polished to achieve the required finish and improve handling safety.
Regular and irregular shapes can be produced according to approved drawings.
Drilling is available for applications requiring mechanical fixing, hardware, or installation openings.
The position and alignment of the metal wire or mesh are controlled during assembly to maintain the intended visual pattern.
Glass, metal wire or mesh, and the selected interlayer are assembled and laminated under controlled production conditions.
Finished panels can be inspected for dimensions, edge quality, appearance, surface defects, pattern alignment, and other agreed quality requirements before shipment.
No. Metal Laminated Glass is a laminated construction in which metal wire or mesh is incorporated between glass layers using an interlayer. Traditional wire glass uses a different manufacturing structure in which wire is embedded directly into the glass during production.
Yes, the metal pattern can partially screen the view, but the actual privacy level depends on wire thickness, mesh density, pattern, glass type, lighting, and viewing distance. Requesting a sample is recommended when transparency or privacy is important.
It may reduce light transmission slightly and create shadows or visual lines, especially with dense mesh or thicker wire. The final effect depends on the metal pattern and glass combination. Samples can help confirm the appearance under actual lighting conditions.
No. Cutting, drilling, notches, and other edge processing should normally be completed before lamination. Send final drawings and hardware positions before production to avoid rework or damage.
In a laminated construction, the interlayer can help hold many broken glass fragments together. However, the panel may still require replacement, and the actual breakage performance depends on the complete glass and interlayer configuration.
Yes. A sample is recommended for checking metal pattern, transparency, color, surface appearance, edge quality, and the visual effect under your project lighting. Sample size and availability depend on the selected construction.
Looking for decorative laminated glass with a distinctive metal pattern?
Send us your dimensions, glass type, metal pattern, interlayer, quantity, and application requirements. Our team can evaluate the proposed construction and processing requirements, then recommend a suitable configuration for your project.
From standard panels to customized shapes, drilled glass, polished edges, and project-specific metal patterns, we can support the manufacturing process from drawing review to finished glass production.
Contact us today for a Metal Laminated Glass quotation and customized glass solution.
