High-purity fused silica observation windows designed for extreme temperatures, offering superior optical clarity, thermal stability, and chemical resistance for industrial and scientific applications.

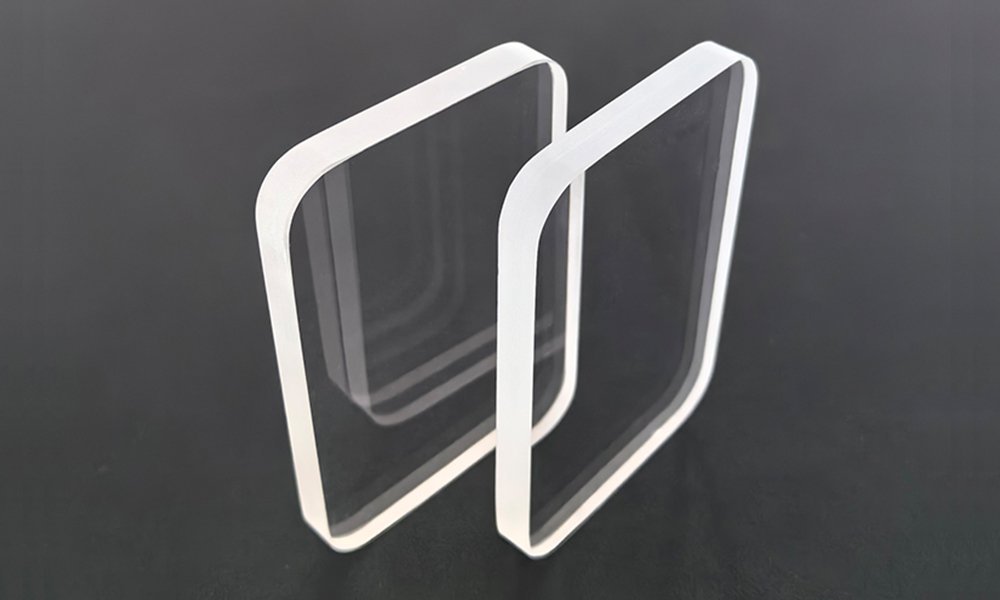

Quartz glass observation windows are transparent optical components designed to provide safe visual inspection of high-temperature or sealed industrial processes without compromising system integrity.
Unlike conventional glass, fused quartz maintains exceptional optical transmission and dimensional stability even under rapid temperature fluctuations, making it the preferred material for demanding environments where ordinary glass cannot perform reliably.
At Vatti Glass, every observation window is manufactured using premium fused silica and undergoes precision machining, optical polishing, and strict quality inspection to ensure consistent performance across industrial, laboratory, and optical applications.
Industrial observation windows are often exposed to intense heat, thermal cycling, corrosive chemicals, and demanding operating conditions. Conventional glass can crack, deform, or lose transparency under these environments.
Quartz glass offers significant performance advantages that ensure greater reliability, longer service life, and improved operational safety.
| Property | Quartz Glass | Conventional Glass |
| Continuous Operating Temperature | Up to 1200°C | Approximately 300–500°C |
| Thermal Shock Resistance | Excellent | Moderate |
| UV Transmission | Excellent | Limited |
| Chemical Resistance | Outstanding | Moderate |
| Thermal Expansion | Extremely Low | Higher |
| Optical Stability | Excellent | Moderate |
| Service Life | Long | Shorter |
These unique characteristics make quartz glass the preferred material for industrial observation windows used in semiconductor manufacturing, laboratory systems, furnaces, and precision optical equipment.
Every industrial system has unique dimensional, optical, and mechanical requirements. At Vatti Glass, we manufacture custom quartz glass observation windows to meet your exact application specifications.
From prototype development to large-scale production, our experienced engineering team combines advanced CNC machining with strict quality control to ensure each component meets demanding industrial standards.
Our manufacturing capabilities include:
· Precision CNC machining
· Optical polishing
· Precision cutting
· Drilling and slot machining
· Edge grinding and chamfering
· Custom profiles and special geometries
· Thickness from 1–60 mm

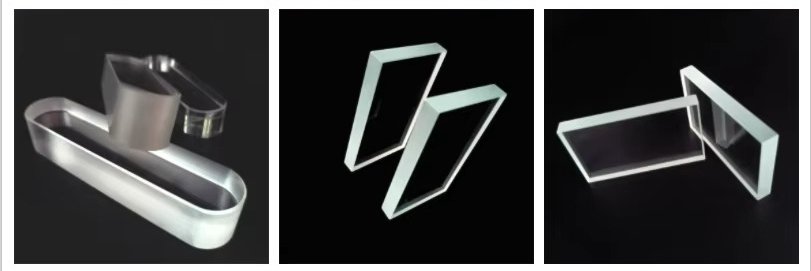

· Round, square, rectangular, and custom shapes
· Tight dimensional tolerances
· OEM & ODM manufacturing
We also manufacture according to customer drawings, CAD files, or physical samples.
Selecting the appropriate quartz material is essential for achieving the best optical performance, thermal stability, and cost efficiency.
Vatti Glass supplies three commonly used quartz material grades to meet different industrial requirements.
JGS1 – Synthetic Fused Silica
JGS1 offers ultra-high purity and exceptional ultraviolet transmission. It is widely used in UV laser systems, lithography equipment, scientific instruments, and precision optical applications where maximum optical performance is required.
JGS2 – Natural Fused Quartz
JGS2 provides an excellent balance between optical performance, thermal resistance, and cost. It is the most commonly selected material for industrial observation windows, furnaces, semiconductor equipment, laboratory instruments, and vacuum systems.
JGS3 – Infrared Quartz Glass
JGS3 is specifically designed for infrared transmission and is suitable for infrared heating systems, thermal imaging equipment, infrared sensors, and optical systems operating in the infrared spectrum.
| Material Grade | Main Characteristics | Typical Applications |
| JGS1 | Ultra-high UV transmission | UV optics, lasers, lithography |
| JGS2 | Excellent all-around performance | Observation windows, furnaces, semiconductor equipment |
| JGS3 | High infrared transmission | IR heating, thermal imaging, infrared optics |
| Parameter | Specification |
| Material | Fused Quartz / Fused Silica |
| Purity | ≥99.99% |
| Shape | Round, Square, Rectangle, Custom |
| Diameter | Customized |
| Thickness | 1–60 mm |
| Surface Finish | Optical Polishing Available |
| Surface Quality | Customized |
| Operating Temperature | Up to 1200°C |
| Short-Term Temperature | Up to 1400°C |
| Thermal Expansion Coefficient | 5.5 × 10⁻⁷/K |
| Light Transmission | Up to 93% |
| Custom Processing | CNC Machining, Drilling, Slotting, Polishing |
Thanks to its outstanding optical clarity, thermal stability, and chemical resistance, quartz glass observation windows are widely used across industries that require reliable visual inspection under extreme operating conditions.
Semiconductor Equipment
Provide clear visibility inside diffusion furnaces, vacuum chambers, wafer processing equipment, and crystal growth systems while maintaining excellent dimensional stability under high temperatures.
Industrial Furnaces & Kilns
Enable operators to monitor combustion processes and material treatment without interrupting production or exposing equipment to excessive heat loss.
Chemical Processing Equipment
Ideal for reactors, pressure vessels, and processing systems where aggressive chemicals and corrosive environments require exceptional material durability.
Laboratory & Scientific Instruments
Used in analytical instruments, spectroscopy equipment, optical research systems, and laboratory observation chambers where high optical purity is essential.
UV & Optical Systems
Excellent ultraviolet transmission makes quartz observation windows suitable for UV sterilization systems, UV curing equipment, laser systems, and precision optical devices.
Aerospace & Environmental Testing
Reliable performance under extreme temperatures and demanding environmental conditions makes quartz glass an ideal choice for aerospace equipment and scientific testing systems.
Choosing the right manufacturer is just as important as selecting the right material.
At Vatti Glass, we combine high-purity fused silica materials, advanced manufacturing equipment, and rigorous quality control to produce quartz glass observation windows that consistently meet international industrial standards.
Our engineering team works closely with customers from design evaluation through production, helping optimize material selection, machining processes, and cost efficiency for every project.
Why customers work with us
· Premium fused silica raw materials
· Advanced CNC machining centers
· Precision optical polishing technology
· Strict dimensional and optical inspection
· Stable product consistency
· Flexible OEM & ODM manufacturing
· Fast quotation and engineering support
· Low MOQ and high-volume production
· Worldwide export experience
· Reliable on-time delivery
What is the maximum operating temperature of a quartz glass observation window?
Quartz glass observation windows can typically operate continuously at 1100–1200°C and withstand short-term temperatures up to 1400°C. The actual temperature limit depends on the quartz grade, window thickness, mounting design, and operating conditions. For high-temperature applications, we can recommend the most suitable material and window configuration.
How resistant is quartz glass to thermal shock?
Quartz glass has an extremely low coefficient of thermal expansion, giving it excellent resistance to thermal shock. It performs much better than conventional glass during rapid heating and cooling. However, direct contact with cold liquids or uneven cooling should still be avoided to minimize thermal stress and extend service life.
What pressure or vacuum can a quartz glass observation window withstand?
Pressure resistance depends on the window diameter, thickness, mounting method, operating temperature, and safety requirements. Because every installation is different, there is no universal pressure rating. We can calculate the appropriate window thickness based on your working pressure or vacuum level.
How do I determine the required window thickness?
The required thickness is determined by the effective viewing diameter, operating pressure, maximum temperature, and installation method. Simply provide your technical specifications or drawings, and our engineering team will recommend a safe and cost-effective design for your application.
Which quartz material should I choose: JGS1, JGS2, or JGS3?
JGS1 is ideal for ultraviolet optical applications, JGS2 is the most cost-effective choice for general industrial use, and JGS3 is designed for infrared transmission. If you're unsure which material is right for your project, we can recommend the best option based on your operating wavelength and application.
How is a quartz glass observation window sealed to a metal flange?
Because quartz and metal expand at different rates when heated, selecting the right sealing material is essential. Common options include flexible graphite, PTFE, FKM (Viton), and metal seals for high-vacuum applications. We can recommend a suitable sealing solution based on your operating temperature, pressure, and process media.
Can quartz glass be drilled or machined?
Yes. Quartz glass can be precision machined into custom shapes, including drilled holes, slots, chamfers, edge profiles, and optical polishing. All machining is performed using specialized CNC equipment and diamond tools to ensure high accuracy while minimizing internal stress.
Is quartz glass resistant to acids and chemicals?
Quartz glass offers excellent resistance to most acids, solvents, and corrosive chemicals. However, it is not suitable for hydrofluoric acid (HF), which attacks silica directly. High-temperature alkaline solutions and concentrated phosphoric acid may also reduce its service life. If your process involves aggressive chemicals, we can help evaluate material compatibility.
What optical surface quality can you provide?
We offer a range of surface finishes to meet different application requirements, from precision ground surfaces to optical polishing. For optical and semiconductor applications, scratch/dig standards such as 60/40, 40/20, or finer can be provided upon request, along with custom flatness, parallelism, and inspection reports.
What information is required for a quotation?
To provide an accurate quotation, please send your drawing (if available), dimensions, thickness, material grade, operating temperature, working pressure or vacuum level, surface finish requirements, quantity, and application details. Our engineers will review your specifications and recommend the most suitable solution.
Every application is different. If you're unsure about the appropriate quartz grade, window thickness, pressure rating, or sealing solution, our engineers can help.
Simply send us your drawing or application details, and we'll recommend the most suitable quartz glass observation window for your project.
