Safety Glass for Fences combines clear views with reliable laminated safety performance. Suitable for balcony guardrails, stair railings, pool fences, terraces, commercial buildings, and scenic projects. Available in clear, ultra-clear, and tinted options with custom sizes, thicknesses, shapes, holes, and edge treatments.
Safety Glass for Fences is a laminated glass designed for fences, guardrails, balcony barriers, stairway handrails, pool enclosures, and other applications where both visibility and post-breakage safety are important.

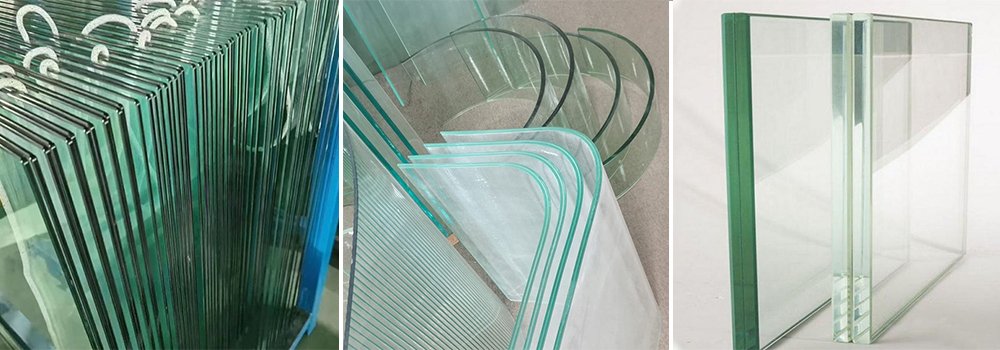

Fence laminated glass is typically manufactured by bonding two or more glass panes with an interlayer such as PVB or SGP. The glass and interlayer are assembled under controlled heat and pressure to form a durable laminated unit. If the glass is broken, the interlayer helps hold the fractured pieces together rather than allowing them to separate freely.
Laminated glass combines architectural transparency with a safety-oriented layered construction, making it a practical option for many fence and barrier systems.
The interlayer helps hold fractured glass fragments together after breakage, reducing the likelihood of loose fragments falling away from the panel.
Depending on the glass structure and interlayer used, laminated glass can retain a degree of panel integrity after glass fracture. The actual residual capacity must be evaluated according to the specific system design and applicable standards.
Clear and ultra-clear glass can provide high visual transparency, making laminated glass suitable for balconies, pool fences, scenic areas, and modern architectural barriers where maintaining an open view is important.
Laminated fence glass can be manufactured with different glass types, interlayer materials, colors, thicknesses, sizes, shapes, holes, and edge treatments.
The interlayer can contribute to acoustic control and UV filtering depending on the selected material and configuration. These properties are particularly useful in architectural applications where the fence also contributes to environmental comfort.
Special laminated structures can be designed for higher impact resistance, security, storm exposure, or other project-specific requirements. Such performance should always be supported by appropriate testing, certification, and structural design rather than assumed from the word “laminated” alone.
Both tempered glass and laminated glass are widely used in architectural glazing, but they behave differently when broken.
Feature | Tempered Glass | Laminated Glass |
Basic Structure | Single pane of thermally tempered glass | Two or more glass panes bonded with an interlayer |
Breakage Pattern | Breaks into many small fragments | Glass cracks while fragments are generally retained by the interlayer |
Fragment Retention | Limited after breakage | Main safety advantage |
Post-Breakage Behavior | Panel may lose most of its integrity | Interlayer can help maintain the glass assembly |
Impact Performance | High strength compared with annealed glass | Depends on glass type, interlayer, and configuration |
Acoustic Performance | Similar to the base glass | Interlayer may improve sound reduction |
UV Protection | Depends mainly on the glass | PVB and other interlayers can provide UV filtering |
Typical Fence Use | Suitable for many standard applications | Particularly useful where retained fragments are important |
Design Flexibility | Wide range of thicknesses and processing | Multiple glass/interlayer combinations |
There is no single glass type that is suitable for every fence project.
Tempered glass can be an appropriate choice where high mechanical strength and a clean monolithic appearance are required and the project design accommodates its breakage characteristics.
Laminated glass is often preferred where maintaining the connection between broken glass fragments is an important safety consideration.
For projects requiring both high mechanical strength and post-breakage fragment retention, tempered laminated glass can combine tempered glass panes with a laminated interlayer.
The correct choice should be based on the fence height, panel dimensions, wind load, impact requirements, support system, local regulations, and the required safety standard.

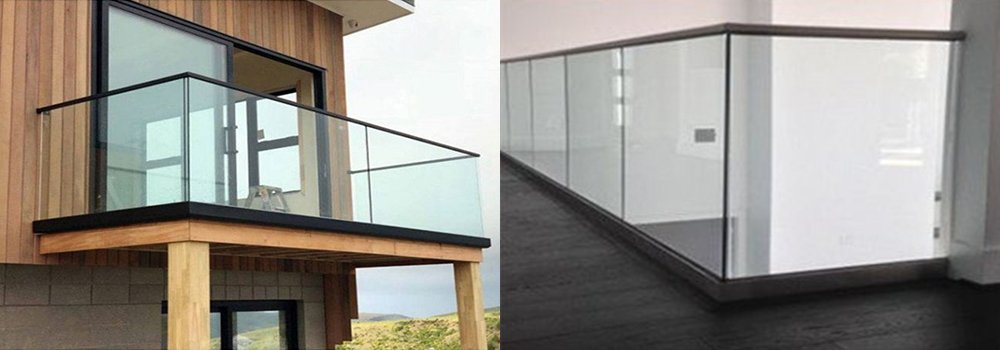

Laminated safety glass can be used in a wide range of architectural and outdoor barrier applications.
Provides transparent edge protection while maintaining an open architectural appearance.
Suitable for stair systems where visibility and controlled glass-fragment behavior are important.
Clear laminated glass can provide a visually open barrier around swimming pools while maintaining the required separation and safety function.
Suitable for gardens, terraces, balconies, patios, and other residential outdoor spaces.
Common applications include hotels, resorts, restaurants, office buildings, shopping centers, and public facilities.
Clear or ultra-clear laminated glass can be used where maintaining visibility is an important part of the architectural or landscape design.
The appropriate glass structure should always be verified against the applicable building and safety requirements for the specific location.
Fence laminated glass can be customized to suit project dimensions, architectural requirements, and installation systems.
· Clear glass
· Ultra-clear glass
· Tinted glass
· Decorative glass
· Custom surface effects
· Clear PVB
· Colored PVB
· SGP
· Other project-specific interlayer options
Available color options may include:
· Milky White
· Black
· French Green
· Light Blue
· Bronze
· Light Grey
· Dark Grey
· Ocean Blue
Color availability may vary according to the selected interlayer and production requirements.
· Custom thickness
· Custom panel size
· Custom shapes
· Edge polishing
· Drilled holes
· Cut-outs
· Notches
· Printed or decorative surfaces
· Other project-specific processing
Precision processing is important for fence glass because holes, edges, dimensions, and surface quality can directly affect installation and system compatibility.
Available processing may include:
Glass is cut according to the required panel dimensions and production tolerances.
Edges can be ground, arrissed, or polished according to the installation and appearance requirements.
Custom holes and cut-outs can be produced for clamps, brackets, posts, channels, or other hardware systems.
Non-rectangular panels and custom profiles can be produced according to approved drawings.
Printing, decorative effects, tinted glass, and selected interlayer colors can be incorporated where required.
The lamination process is controlled to achieve appropriate bonding between the glass and interlayer and to minimize visual defects such as bubbles, delamination, or contamination.
Quality inspection can include dimensional checks, edge inspection, surface inspection, processing verification, and lamination appearance inspection according to the applicable product and project requirements.
Item | Available Options / Specification |
Product Name | Fence Laminated Glass |
Glass Type | Clear, Ultra-Clear, Tinted, etc. |
Construction | Glass + Interlayer + Glass |
Interlayer | PVB, SGP, etc. |
Interlayer Colors | Clear, Milky White, Black, French Green, Light Blue, Bronze, Light Grey, Dark Grey, Ocean Blue, etc. |
Typical Configurations | 5+0.76 PVB+5 mm; 6+0.76 PVB+6 mm; 6+1.52 PVB+6 mm; 8+1.52 PVB+8 mm; 10+1.52 PVB+10 mm |
Panel Size | Customized according to production capability and project requirements |
Shape | Rectangular or customized |
Edge Processing | Ground / Polished / Customized |
Drilling | Available |
Cut-Outs | Available |
Surface Options | Customized |
Application | Fences, guardrails, balconies, stairways, pool fences, etc. |
For fence applications, glass selection should not be based on thickness alone. The complete glazing system must be considered.
Key factors include:
Outdoor fences and balcony barriers can be exposed to significant wind pressure. Glass thickness, panel dimensions, support spacing, and fixing conditions should be checked against the design wind load.
Where the glass may be exposed to human impact or other specified loads, the appropriate glass type and laminated configuration should be selected according to the relevant test and design requirements.
Larger glass panels generally require more careful structural evaluation because size, span, and support conditions influence glass deflection and load behavior.
Whether the panel is fully framed, supported on two sides, fixed through points, or installed in a channel can significantly affect the required glass configuration.
Edges, holes, notches, and cut-outs require appropriate processing and detailing because local stress concentrations can influence glass performance.
Fence and guardrail requirements vary by country, building type, location, and application. The final glass specification should be verified against the applicable local codes and project standards.
For critical applications, the glass, hardware, and supporting structure should be evaluated as a complete engineered system.
Large and customized fence glass requires careful packaging to protect edges and surfaces during handling and transportation.
Typical export packaging may include:
· Protective edge materials
· Surface protection
· Individual glass separation
· Custom wooden crates
· Secure vertical packing
· Moisture protection where required
· Reinforced crate construction
· Container loading according to glass size and weight
· Product identification and batch marking
Packaging requirements can be adjusted according to panel dimensions, processing details, transportation method, and destination.
Start with the fence design rather than choosing a thickness from a standard list. The required glass depends on the panel size, support method, post spacing, wind exposure, guard height, possible impact, and local building requirements. Send the glass dimensions, fixing details, and project location so the configuration can be reviewed before production.
It may be possible, but the existing posts, channels, clamps, gaskets, and fixing points must be checked first. Laminated glass is not automatically compatible with hardware designed for monolithic tempered glass. The glass thickness, edge clearance, glass bite, hole positions, and hardware load capacity should all match.
The glass panes may crack, but the interlayer is designed to hold many of the fragments together. This can reduce the risk of loose glass falling away immediately. However, a damaged panel should not be treated as safe for continued use; it should be isolated and inspected or replaced as soon as possible.
Not necessarily. Laminated glass may have a different total thickness, weight, edge behavior, and hole requirement from the original glass. The existing clamps, channels, gaskets, and supports must be checked before replacement. Do not order replacement panels based only on the original glass thickness.
Yes, but the glass system should be selected for frequent moisture exposure and regular cleaning. The design should provide suitable drainage and protect the laminate edges from standing water where possible. Pool-fence height, gate operation, spacing, and other safety details must also comply with local regulations.
Yes. It can be installed with channels, point fixings, clamps, or other frameless systems, provided the glass and hardware are designed as one system. Hole positions, edge distances, glass bite, setting blocks, and support conditions should be confirmed before fabrication.
No. Holes and cut-outs should normally be processed before lamination. Drilling or cutting a finished laminated panel can damage the glass, interlayer, or surrounding area and may compromise the panel. All hardware openings should be shown on the approved drawing before production.
Service life depends on the glass and interlayer specification, edge protection, drainage, installation quality, climate, cleaning, and exposure to impact. There is no reliable universal lifespan for every installation. Regular inspection is important, and panels showing delamination, edge damage, cracks, or hardware movement should be assessed promptly.
Looking for laminated safety glass for fences, balcony guardrails, stairways, or pool fencing?
Send us your glass dimensions, required thickness, interlayer type, processing details, installation method, and project requirements.
Our team can help evaluate the appropriate laminated glass configuration and provide a customized solution for your fence project.
