Why Choose SGP for Laminated Glass?

SGP interlayer laminated glass is a multi-ply glass assembly bonded with a high-modulus SGP (SentryGlas®-type) interlayer to form a high-performance laminated glazing system. The stiff interlayer enhances load transfer between glass plies and helps maintain structural integrity under service conditions.

This performance makes SGP particularly suitable for applications where large glass dimensions, elevated structural demands, high optical quality, and long-term durability are critical design considerations. In the event of glass breakage, the interlayer maintains adhesion to the fractured glass fragments, effectively limiting detachment and helping preserve residual panel integrity, thereby improving post-breakage safety performance.

For architects, façade engineers, fabricators, and project stakeholders, the primary value of SGP laminated glass lies not only in increased strength, but in the expanded design freedom it provides—especially in applications where conventional laminated glass systems are unable to simultaneously satisfy requirements for stiffness, safety performance, and visual transparency.

Stronger Glass Performance for Demanding Projects

Thanks to its high interlayer rigidity, SGP significantly improves load transfer between the glass plies, enabling the laminated unit to act more like a single, integrated structural element under wind pressure, impact loads, and self-weight. As a result, the system exhibits lower deflection, better post-breakage stability, and improved resistance to edge deformation—performance advantages that are especially critical in large-span or minimally supported glazing applications.

From an engineering perspective, SGP laminated glass is typically specified when higher residual load-bearing capacity after breakage is required, or when strict serviceability criteria—such as deflection control, vibration performance, and overall structural stiffness—are key to the façade or structural design.

Depending on the overall glass configuration, support conditions, and structural intent, SGP laminated glass is widely used in demanding architectural applications, including:

· Large-span glass façades and unitized curtain wall systems requiring high stiffness and controlled deflection

· Structural glass floors, stair treads, and walkways where post-breakage safety and load retention are critical

· Overhead glazing systems such as skylights, canopies, and atriums exposed to snow, wind, and maintenance loads

· Suspended or point-supported glazing assemblies where edge stability and load redistribution are essential

· High-safety environments requiring enhanced impact resistance and improved fragment retention

· Buildings in high-wind regions or exposed sites subject to significant dynamic loading conditions

In practical applications, key parameters such as glass type (annealed, heat-strengthened, or tempered), pane thickness, SGP interlayer specification, panel geometry, support and fixing methods, load conditions, and applicable design standards (including ASTM, EN, or relevant local building codes) all work together to determine the final performance of the glazing.

For this reason, SGP laminated glass is best selected as part of a complete engineered solution tailored to the project, rather than chosen only by size or nominal thickness. A proper engineering review and project-specific structural assessment are essential to ensure the glazing system achieves the required safety level, durability, and long-term service performance.

Designed for Large and Complex Glass Panels

Large-format glazing creates practical challenges that go beyond simply increasing glass thickness. Panel dimensions, weight, wind load, support conditions, deflection limits, handling, and installation all influence the appropriate laminated glass construction.

SGP’s higher interlayer stiffness makes it well suited to projects where designers need to balance structural performance with large transparent surfaces. It can also provide a cleaner visual appearance in applications where edge stability and optical quality are important.

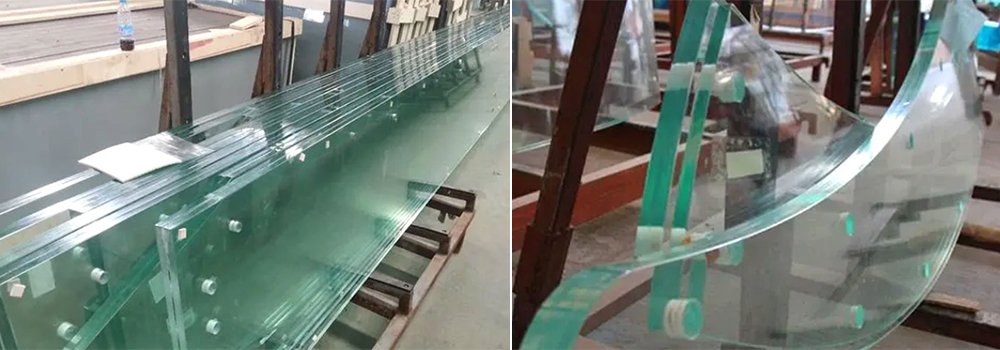

We can manufacture SGP laminated glass in customized dimensions and configurations, including rectangular and shaped panels. CNC processing, water-jet cutting, drilling, edge finishing, and other fabrication processes can be incorporated according to the final application.

Choose the Right Glass Configuration for Your Project

There is no single SGP glass configuration suitable for every application. The appropriate build-up depends on panel size, loading conditions, support method, safety requirements, optical requirements, and local standards.

Available glass combinations can include clear float glass, ultra-clear float glass, tinted glass, and other suitable glass types.

Typical structures include:

· 8 + 0.89 SGP + 8 mm

· 10 + 1.78 SGP + 10 mm

· 15 + 2.67 SGP + 15 mm

· 10 + 1.78 SGP + 10 + 1.78 SGP + 10 mm

· 15 + 2.67 SGP + 15 + 2.67 SGP + 15 mm

These are representative configurations rather than universal specifications. SGP thickness, glass thickness, number of plies, and overall construction can be customized based on project requirements.

Customized SGP Glass to Match Your Requirements

SGP laminated glass can be customized beyond thickness and dimensions. Our processing capabilities allow the finished glass to be adapted to different architectural and fabrication requirements.

Available customization options

· Custom panel dimensions

· Different glass thicknesses

· Clear, ultra-clear, or tinted glass

· SGP interlayer thickness

· Custom shapes

· Precision cutting

· Drilled holes and cut-outs

· Edge polishing and finishing

· Customized surface effects

· Multi-layer laminated structures

Common SGP interlayer colors include clear, milky white, black, French green, light blue, bronze, light grey, dark grey, and ocean blue, subject to the selected interlayer specification and availability.

For applications requiring complex shapes or openings, the fabrication requirements should be confirmed before production so that the glass configuration and processing sequence are compatible.

Quality Control from Glass Processing to Lamination

SGP laminated glass performance is not determined by the interlayer alone. The final quality is the result of every upstream and downstream process, including raw glass selection, dimensional precision, edge quality, surface cleanliness, lamination stability, and post-processing accuracy. Even small deviations in any step can affect optical clarity, bonding performance, or long-term stability.

To ensure consistency, production follows a controlled workflow with dedicated equipment at each critical stage of glass fabrication and lamination:

· Precision glass cutting – ensuring accurate dimensions and minimizing edge stress from the start

· Edge grinding and finishing – removing micro-cracks and improving edge strength and safety

· Glass cleaning and preparation – multi-stage cleaning to eliminate dust, oil, and particles before lamination

· SGP interlayer assembly – precise alignment of glass plies and interlayer under controlled conditions

· Controlled lamination – pre-pressing to remove air and ensure uniform interlayer contact

· High-temperature and pressure processing – autoclave treatment to achieve stable bonding and optical clarity

· Drilling and CNC processing when required – executed with strict positioning control to avoid edge damage or stress concentration

· Finished-glass inspection – checking flatness, bubbles, inclusions, edge quality, and visual defects

· Packing and shipment inspection – final verification before protective packaging and container loading

Dimensional tolerances, edge quality requirements, and processing standards are controlled in accordance with project specifications and applicable American or European standards, depending on the order requirements.

Before shipment, each batch is inspected not only for size accuracy, but also for visual appearance, processing consistency, and surface quality. This step is especially important for large-format or multi-panel projects, where uniformity between panels directly affects installation quality and final architectural appearance.

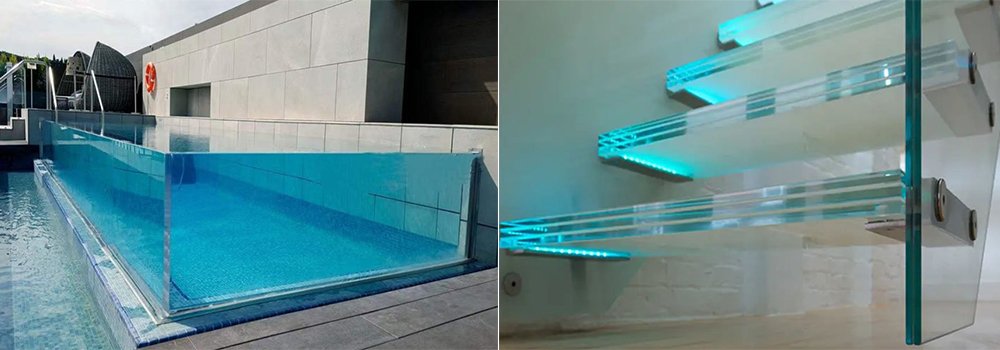

Where SGP Laminated Glass Fits Best

SGP laminated glass is suitable for a wide range of architectural and specialty glazing applications where safety, structural performance, transparency, and durability are important considerations.

Architectural Glazing

· Curtain walls

· Building doors and windows

· Large glass walls

· Shopfronts and display glazing

· Interior glass partitions

Structural & Overhead Glazing

· Skylights

· Suspended ceilings

· Glass floors

· Skywalks

· Canopies and other overhead glazing

Specialty Applications

· Glass counters

· Aquariums

· Safety and security glazing

SGP vs. PVB: Which One Fits Your Project?

SGP and PVB are both widely used laminated-glass interlayers, but they are designed to meet different performance priorities.

The right choice depends on the application rather than simply selecting the material with the highest performance. PVB can remain an economical and practical solution for many conventional glazing projects, while SGP becomes particularly attractive when higher stiffness, larger panels, structural performance, or demanding environmental conditions are involved.

Built for Reliable Delivery, Not Just Production

For B2B glass procurement, consistent production and safe delivery are just as important as the glass specification itself.

VATTI Glass has 16 years of experience in glass manufacturing and export, with products supplied to customers in more than 80 countries. Our production facilities include glass cutting, edging, tempering, autoclave, CNC, water-jet, and drilling equipment to support both standard and customized orders.

We also focus on the practical requirements of international glass transportation:

· Protective packing designed for laminated glass

· Strong customized wooden cases

· Careful loading and container preparation

· Production and delivery coordination

· Pre-shipment quality inspection

· Dedicated sales support

· Online response within 24 hours

· Project-specific service from quotation to after-sales support

Located near Qingdao’s major container ports, our facility can support convenient export loading and efficient international shipment arrangements.

Frequently Asked Questions About SGP Laminated Glass

When should I choose SGP instead of standard laminated glass?

SGP is typically selected when a project involves larger spans, higher design loads, stricter deflection control, or more demanding safety requirements. If your application is a standard window or partition with normal loading conditions, conventional laminated glass may already be sufficient.

Can SGP laminated glass be used in load-bearing or structural applications?

Yes, but only when it is part of a properly engineered system. The glass itself is not a standalone structural element. The final performance depends on the full design, including framing, supports, and load calculations by a qualified engineer.

Does SGP laminated glass require special installation methods?

Installation is generally similar to other laminated glass products, but due to its higher stiffness and potential for larger panel sizes, handling and support conditions must be carefully planned. Proper edge support and correct setting blocks are especially important.

How does SGP perform in long-term outdoor exposure?

SGP interlayers are designed for high durability and maintain stable performance under UV exposure and temperature variation. However, long-term performance still depends on correct edge sealing, framing design, and overall system detailing.

Can SGP laminated glass be repaired if it is damaged?

No. Once laminated glass is cracked or structurally compromised, it cannot be repaired and should be replaced. The interlayer may hold fragments in place temporarily, but the panel should not continue in service.

Is SGP laminated glass suitable for curved or shaped glass?

Yes, it can be processed into curved or irregular shapes depending on project requirements and production feasibility. However, complexity, thickness, and size will affect manufacturability and lead time.

How do I know if SGP is necessary for my project?

This depends on your design goals, including span size, load conditions, safety level, and deflection limits. If you are unsure, it is best to provide your project drawings so we can evaluate whether SGP is technically required or simply optional.

What should I consider before finalizing an SGP specification?

Key factors include structural requirements, glass support conditions, safety expectations, environmental exposure, and fabrication constraints. These should be confirmed early in the design stage to avoid costly revisions later.
