Skywalk Laminated Safety Glass is a multi-layer laminated glass product developed for glass skywalks, viewing platforms, glass floors, staircases, bridges, and other pedestrian areas where safety, transparency, and architectural appearance are important.
A typical Skywalk Laminated Safety Glass panel consists of three or more glass plies bonded together with polymer interlayers such as PVB or SGP. The interlayer is positioned between adjacent glass plies and processed under controlled heat and pressure to form a durable laminated structure.
The key safety advantage of laminated glass is its behavior after glass breakage. If one or more glass plies crack, the interlayer helps retain the broken fragments and maintain the integrity of the laminated assembly, reducing the risk of loose shards falling through the structure. The actual residual load-bearing and post-breakage performance depends on the complete glass configuration, interlayer, support system, dimensions, and applicable design requirements.
For pedestrian applications, the exposed surface can also be customized with anti-slip treatments or patterns to improve walking safety while maintaining the desired visual effect.
VATTI provides customized skywalk glass configurations, precision processing, drilling, edgework, irregular shapes, surface treatments, and project-based packaging for scenic attractions and architectural projects.
A scenic skywalk is more than a transparent architectural element. It is a pedestrian structure exposed to repeated foot traffic, environmental conditions, impact risks, and demanding visual requirements. The glass therefore needs to be selected as part of an engineered glazing system rather than as an ordinary architectural panel.
Multiple glass plies and interlayers create a composite laminated assembly. When glass breakage occurs, the interlayer helps hold fragments together instead of allowing the broken pieces to separate freely.
Skywalk glass can be engineered for floors, walkways, stairs, observation decks, and other areas where people directly interact with the glass surface.
Clear and ultra-clear glass options provide unobstructed views of mountains, valleys, rivers, cityscapes, and other scenery. Tinted or colored interlayers can be used when a specific architectural appearance is required.
For walking surfaces, anti-slip patterns or treatments can be incorporated according to the project requirements, helping address the additional safety considerations associated with pedestrian traffic.
Different glass thicknesses, numbers of plies, interlayer types, colors, and surface treatments can be combined to meet project-specific design requirements.
Scenic attractions can experience substantial pedestrian traffic, particularly during weekends, holidays, and peak tourism seasons. Skywalk glazing must therefore be considered in relation to both structural loading and pedestrian safety.
Important factors include:
· Design dimensions and unsupported span
· Support and fixing conditions
· Dead load and pedestrian live load
· Concentrated or point loading
· Interlayer type and thickness
· Glass heat-treatment condition
· Edge support and protection
· Surface slip resistance
One of the principal benefits of laminated construction is fragment retention. The polymer interlayer remains bonded to the glass and can help hold fractured glass fragments in place.
However, laminated glass should not automatically be considered safe to walk on after breakage. The residual capacity of a damaged panel depends on the glass construction, interlayer, support conditions, loading, and engineering design. Damaged glass should be isolated and assessed by qualified personnel.
For a skywalk project, glass thickness alone does not determine safety. The glass, interlayer, framing, support structure, fixing details, drainage, edge protection, and installation method must be considered together.
VATTI can manufacture glass according to project drawings and specified technical requirements, while the final structural configuration should be confirmed through project-specific engineering calculations.
Different scenic projects have different structural and visual requirements. VATTI can supply multi-ply laminated glass using different glass and interlayer combinations.
· Clear glass
· Ultra-clear glass
· Tinted glass
· Anti-slip glass
· Customized processed glass
PVB Interlayer
PVB is widely used in architectural laminated glass and is available in different thicknesses and colors. It provides adhesion and fragment retention within the laminated assembly.
SGP Interlayer
SGP is a stiffer structural interlayer that can be selected for applications requiring enhanced stiffness and structural performance. Its suitability depends on the specific project design.
The following configurations are examples from the available product range:
· 8 + 1.52 PVB + 8 + 1.52 PVB + 8 mm
· 8 + 1.90 PVB + 8 + 1.90 PVB + 8 mm
· 10 + 1.90 PVB + 10 + 1.90 PVB + 10 mm
· 12 + 1.90 PVB + 12 + 1.90 PVB + 12 mm
· 15 + 2.67 SGP + 15 + 2.67 SGP + 15 mm
These are reference configurations rather than universal recommendations. The appropriate construction should be determined from the project dimensions, support conditions, design loads, applicable standards, and structural calculations.
Skywalk laminated glass can be incorporated into a wide range of architectural and tourism applications.

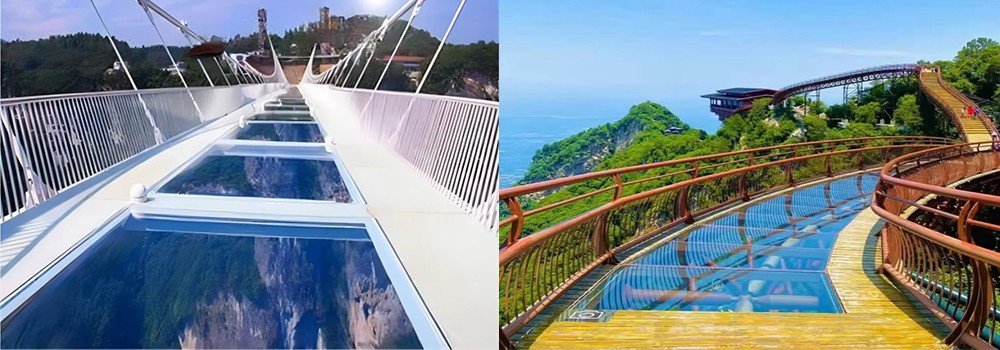

Suitable for elevated scenic walkways that provide visitors with transparent views of mountains, valleys, cliffs, forests, and other landscapes.
Used for observation decks and platforms where transparency is an important part of the visitor experience.
Multi-layer laminated glass can be designed for transparent bridge structures and pedestrian crossings according to project-specific engineering requirements.
Can be processed into glass stair treads or associated transparent stair components when the complete system is appropriately engineered.
A successful glass skywalk needs to provide both structural protection and visual appeal.
Clear or ultra-clear glass allows visitors to experience the surrounding scenery with minimal visual obstruction. For projects requiring a distinctive appearance, tinted glass and colored interlayers can introduce controlled architectural tones.
· Clear transparent appearance
· Ultra-clear appearance
· Tinted glass
· Colored PVB interlayers
· Customized anti-slip patterns
· Decorative surface effects
Available interlayer colors can include milky white, black, French green, light blue, bronze, light grey, dark grey, and ocean blue, subject to material availability and project requirements.
The selected interlayer color can influence both the visual appearance and light transmission of the finished panel, so samples can be reviewed before mass production when required.
Item | Specification |
Product Name | Skywalk Laminated Safety Glass |
Glass Type | Clear, ultra-clear, tinted, anti-slip and customized glass |
Construction | Multi-ply laminated glass |
Typical Glass Plies | 3 or more glass plies |
Interlayer | PVB, SGP and other specified interlayers |
Interlayer Colors | Milky white, black, French green, light blue, bronze, light grey, dark grey, ocean blue, etc. |
Example Thickness | 8+1.52PVB+8+1.52PVB+8 mm |
Example Thickness | 8+1.90PVB+8+1.90PVB+8 mm |
Example Thickness | 10+1.90PVB+10+1.90PVB+10 mm |
Example Thickness | 12+1.90PVB+12+1.90PVB+12 mm |
Example Thickness | 15+2.67SGP+15+2.67SGP+15 mm |
Size | Customized according to project requirements |
Drilling | Available |
Cutouts | Available |
Irregular Shape | Available |
Edge Processing | Available |
Surface Processing | Anti-slip pattern and customized effects |
Sample | Available |
Quality Management | ISO 9001 |
Note: The configurations listed above are representative options. Final glass thickness, interlayer specification, panel dimensions, and structural configuration should be confirmed according to project-specific engineering calculations, support conditions, applicable standards, and installation requirements.
VATTI has more than 16 years of experience in glass manufacturing and international export, serving customers across more than 80 countries.

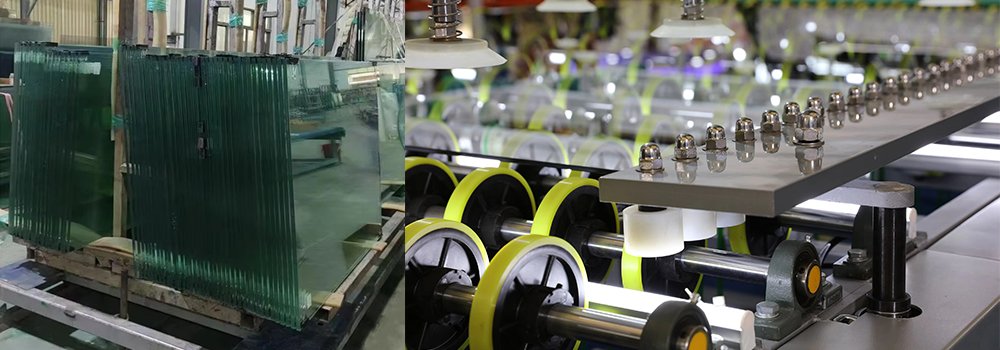

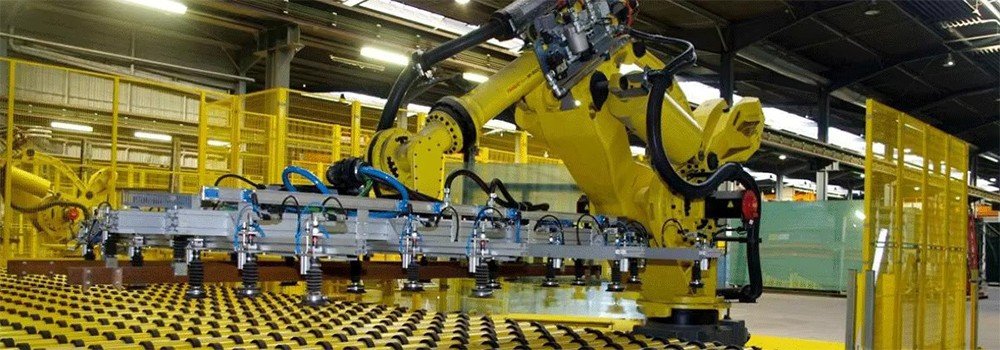

Our production capabilities include:
· Glass cutting machines
· Edging machines
· Tempering furnaces
· Autoclaves
· CNC equipment
· Water-jet equipment
· Drilling equipment
This integrated processing capability supports customized glass production for complex architectural projects.
From standard rectangular panels to drilled, cut, irregular-shaped, and surface-treated glass, VATTI can manufacture according to approved customer drawings and specifications.
Glass is inspected throughout processing and before shipment to help ensure dimensional accuracy, visual quality, processing quality, and lamination quality meet the agreed requirements.
Purpose-designed wooden cases help reduce the risk of damage during international transportation.
A professional sales team provides project communication, specification confirmation, quotation support, production coordination, and after-sales assistance.
VATTI aims to provide timely responses to customer inquiries and support international customers throughout the purchasing process.
Please provide the project location, application, panel dimensions, quantity, support method, required glass configuration, surface treatment, processing details, delivery destination, and project drawings if available. If the final specification has not been confirmed, VATTI can review the available information and identify the details still needed for evaluation.
PVB and SGP have different material properties and may perform differently in terms of stiffness, moisture resistance, edge durability, and post-breakage behavior. The better option depends on the project design, exposure conditions, required performance, and budget. VATTI can quote both options for comparison when the project requirements are available.
This depends on the support and fixing system. Before ordering, confirm whether the panels are mechanically removable, how the glass is retained, and whether replacement access has been included in the design. VATTI can manufacture replacement panels from approved drawings or an existing panel template.
Restrict access to the affected area immediately and do not allow visitors to walk on or place loads over the damaged panel. The glass should be inspected by a qualified professional, who can determine whether temporary protection, replacement, or further structural assessment is required.
Use suitable lifting equipment, keep the panels upright and properly supported, protect edges and corners, avoid contact with metal or hard surfaces, and follow the installation method approved for the project. Holes, cutouts, and other processing should be completed before delivery whenever possible.
Inspect the packaging for impact or water damage before opening it. After unpacking, check the glass quantity, dimensions, markings, edges, holes, cutouts, surface condition, and visible lamination quality. Photograph any issue and record it on the delivery documents before installation.
Use clean water and a mild, non-abrasive glass cleaner with soft tools. Avoid metal scrapers, abrasive pads, strong chemicals, and equipment that may damage the anti-slip surface or edges. The support system, sealants, drainage paths, and exposed edges should also be inspected periodically.
It may slightly change the visual clarity, reflection, texture, or cleaning behavior of the glass. The effect depends on the pattern or treatment selected. A sample should be reviewed before mass production, especially when appearance and scenic visibility are important.
Yes, provided the required dimensions, glass construction, processing details, and support information can be confirmed. For an existing installation, accurate measurements or original production drawings are important because a visually similar panel may not be compatible with the existing system.
