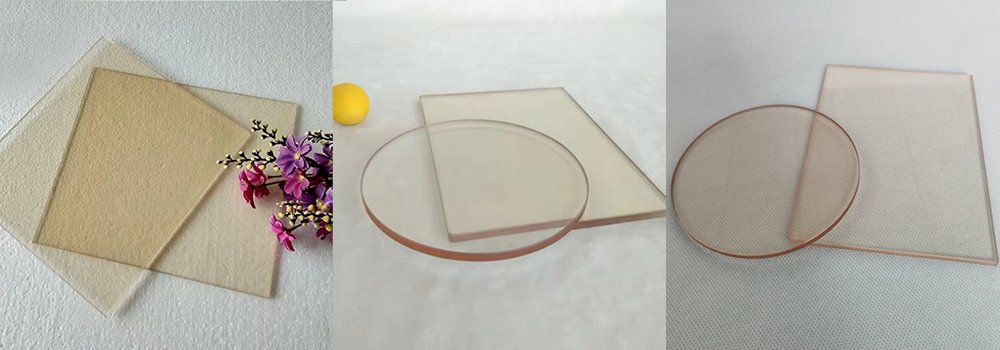

Product Overview

Transparent ceramic glass (also called glass-ceramic or heat-resistant glass) is an advanced, microcrystalline material engineered for extreme heat tolerance.  Unlike ordinary glass, it is made by controlled crystallization of a special lithium-aluminosilicate glass.  This process yields an almost zero coefficient of thermal expansion, so the glass remains dimensionally stable even when heated.  The result is a panel that can withstand rapid temperature changes without cracking.  In practice, transparent ceramic glass stays strong at very high temperatures, making it ideal as a safety viewing window.  It offers excellent optical clarity and infrared (IR) transmittance, allowing a bright, unobstructed flame view in fireplaces, stove doors, cooktops, ovens and high-temperature industrial equipment.

Why Choose Transparent Ceramic Glass

This material outperforms conventional glass in every way for high-heat applications. Key advantages include:

Extreme Heat Resistance

Ceramic glass can operate continuously at very high temperatures, far beyond what tempered or borosilicate glass can tolerate.

Superior Thermal Shock Resistance

Its ultra-low expansion (≈0 ± 0.5×10^–6/K) means it resists cracking even under sudden temperature swings. It has been laboratory-tested to survive direct flame-to-water quench.

High Mechanical Strength

The microcrystalline structure gives it excellent rigidity. It offers high flexural strength (~35 MPa), so it resists chips, impacts and everyday wear.

Excellent Efficiency & Clarity

Ceramic glass transmits visible and IR radiation efficiently, meaning minimal heat loss through the glass. Its transparency lets you enjoy an unobstructed view of the flame or process, with only a slight amber tint in some formulations.

Safety in Direct Flame

Unlike standard glass, only ceramic glass is safe for direct fire exposure. (For example, tempered glass will shatter in a high-heat fireplace.) Its stability prevents dangerous breakage and keeps fireplaces and ovens safe.

Durability & Longevity

It resists high-temperature corrosion and does not yellow or crystallize over time. When installed and maintained properly (using recommended fireplace cleaners, etc.), it can last for many years without performance loss.

Material Properties That Matter

Transparent ceramic glass is a specialized glass-ceramic with the following typical properties:

Density

~2.6 g/cm³ (comparable to standard glass).

Thermal Expansion

Near-zero (≈0 ± 0.5×10^–6/K from 20–700 °C). This negligible expansion ensures dimensional stability under heat.

Bending Strength

~35 MPa (sufficient to withstand normal handling and installation without breaking).

Optical Transmittance

Very high in the visible range (often >90% at 2 mm thickness). It also blocks harmful UV while passing infrared heat efficiently.

Chemical Durability

Excellent. It meets stringent standards (hydrolytic resistance ISO 719 HGB 1, acid resistance DIN 12116 Class S3, alkali resistance ISO 695 Class A2). In practical terms, it is unaffected by acidic or alkaline conditions typically found in fireplaces and ovens.

Technical Specifications

Surface & Edge Finishing Options

Edge Types: Sharp edges can be removed by straight grinding or full bevel polishing. We offer flat polished edges for a clean look and ease of handling, as well as machined edges (e.g. straight grind or chamfer) to eliminate sharpness.

Corner Shapes: Panels can have square corners or rounded "R-corners" for safety and fit. Any custom cut (circle, oval, rectangular, or irregular shapes) is possible.

Custom Drilling: Bolt holes, screw holes or slots can be precision-cut (waterjet, CNC machining) without causing cracks.

Coatings & Printing: Ceramic glass can be UV- or laser-etched with logos or designs, or coated for electromagnetic shielding if required. We support screen printing of decorative or functional patterns onto the surface with high-temperature ceramic inks.

These finishing options let you integrate ceramic glass into virtually any assembly or appliance.

Industry Solutions

Transparent ceramic glass is used across many industries wherever high heat and visibility are needed. Key applications include:

Fireplaces & Stoves

The primary safety window for wood-, gas-, pellet- or ethanol-burning fireplaces and stove doors. It withstands direct flame, soot and ash while giving an unobstructed flame view.

Cooktops & Ovens

Smooth-top induction or radiant cooktop panels and oven viewports. Its efficient heat transfer makes it ideal for modern ceramic stovetops.

Industrial Furnaces & Ovens

Viewing windows for kilns, furnaces, glass-melting tanks, drying ovens and other high-temperature processing equipment. It enables safe observation of processes up to ~800 °C.

Solar Energy & Electronics

Protective shields on photovoltaic panels or concentrators, and infrared windows on solar collectors. Also used in microwave ovens, wave-soldering machines and sensors that require microwave/IR transparency.

In each case, ceramic glass provides a safe, durable alternative to regular glass. Its "crystal clear" view and longevity make it a staple in both consumer and industrial products where fire or heat is present.

Manufacturing Process

Transparent ceramic glass is produced via a specialized two-stage glass-ceramic process. First, raw ingredients (silica, alumina, lithium oxide, etc.) are melted together to form an amorphous glass. The glass is then molded, rolled or cast into flat sheets. In the second stage, the glass is heat-treated (nucleated) at a precise temperature to precipitate microscopic crystalline phases throughout the matrix. This controlled crystallization gives the glass its unique low-expansion structure.

Strict temperature control during nucleation is essential for homogeneity and performance. After ceramization, the panels are annealed and annealed and cut to size. Final fabrication can include grinding, drilling, or polishing. Because transparent ceramic glass behaves predictably in the solid state, it can be processed much like ordinary glass once formed. Our production utilizes modern furnaces and CNC processing lines to ensure each panel meets the exact specification.

Each batch is carefully monitored and tested. The result is a uniform, bubble-free glass-ceramic sheet with consistent optical and thermal properties. We can also collaborate on custom formulations to meet special requirements.

Quality Assurance & Testing

We maintain rigorous quality control throughout production. Key points include:

Materials Testing: Incoming raw materials and melt compositions are checked for purity and batch consistency.

Dimensional Inspection: Thickness, flatness and surface finish of each panel are measured. Optical clarity is inspected.

Thermal Shock Test: Panels are subjected to sudden heating (or water quench) to verify resistance to thermal stress. Only units with no cracking pass this test.

Mechanical Testing: Flexural strength and durability are statistically verified according to standards.

Chemical Durability: Random samples are tested for hydrolytic and chemical resistance to confirm compliance with ISO/DIN standards.

Traceability: Each product is identified by grade and batch number. We maintain records so that any piece can be traced back through production logs.

We operate under ISO 9001 procedures and partner with accredited laboratories (SGS, Intertek, etc.) for third-party certification when needed. Our internal QA ensures that every panel meets industry certifications and performs reliably in customer applications.

Certifications & Compliance

ISO 9001 – Our manufacturing facility is ISO 9001 certified for quality management.

CE, CCC, SII – Our products meet international safety regulations as applicable.

SGS Test Reports – We provide test reports upon request for thermal, mechanical and chemical properties.

RoHS/REACH – Materials comply with RoHS 3 and REACH standards (no restricted heavy metals or hazardous substances).

Safety Compliance: Ceramic glass itself is an inert material; it does not emit hazardous fumes under normal use. It meets all safety regulations for use in heating appliances.

By choosing our transparent ceramic glass, you ensure adherence to global standards. We can supply certificates of conformity and safety on demand.

Installation, Maintenance & Replacement Guide

Ceramic glass should be installed according to appliance instructions. Allow for proper ventilation gaps to accommodate expansion. Use the correct type of gasket or sealing material. Only use fasteners or clips rated for high temperature; metal clips should not press directly on glass without a cushion. If the panel is part of a door or frame, ensure it is well-supported and not under mechanical stress from uneven clamping.

Always clean ceramic fireplace glass only with products designed for it. Do not use abrasive pads or standard glass cleaners – they can scratch or etch the ceramic surface. Use soft cloths or sponges with a ceramic-glass cleaner or a mild vinegar solution. This prevents residue build-up and micro-scratches. Avoid sudden shocks as a precaution, even though the material is very shock-resistant.

We recommend inspecting your ceramic glass annually. Look for any cracks, chips, warping or cloudiness. These are clear signs the glass must be replaced. Even a small crack can quickly enlarge under heat, posing a safety risk. Because ceramic glass has a softer surface than tempered, small scratches or nicks can occur – these are cosmetic but should be cleaned gently to avoid deep abrasion. Replace the panel at the first sign of damage or if it no longer seals tightly. Always use an identical grade of ceramic glass for replacement – never substitute with tempered glass. (Tempered glass will fail in high-heat service.)

Allow the glass to cool completely before handling or cleaning. - Handle panels by the frame or edges; do not carry large panels by their faces. - If reusing mounting hardware, ensure metal clips or springs are not overtightened. - Follow the appliance manufacturer’s instructions – they often specify mounting heights, distances from flames, and gasket types.

Correct installation and care will maximize the lifespan of the glass and ensure continued safety.

Frequently Asked Questions (FAQ)

Q1: Can I replace my fireplace glass with tempered glass instead of ceramic?

A: No. Tempered glass is not rated for direct high heat. It will shatter if exposed to the flames or hot coals. Ceramic glass is the only safe option for any fireplace or stove door that operates at high temperature.

Q2: How is ceramic glass different from borosilicate glass?

A: The key difference is thermal expansion. Ceramic glass has an extremely low expansion coefficient, allowing it to handle >800 °C and direct flame. Borosilicate has a higher expansion and a lower maximum service temperature (roughly <350 °C in practice). In short, only ceramic glass is suitable for wood stoves or burners.

Q3: Can you cut ceramic glass to a custom shape?

A: Yes. We manufacture ceramic glass in cut-to-size panels to customer specifications. Our CNC cutting and grinding allow for any shape (square, rectangle, circle, oval, R-corner, etc.) and hole patterns. Just provide your drawings or dimensions, and we will precisely machine the panel.

Q4: What is the lead time for a custom ceramic glass order?

A: As a dedicated manufacturer, we typically produce and ship custom panels within 3–7 working days after order confirmation. Faster turnarounds can often be arranged for urgent needs. We also keep some standard sizes in stock for immediate shipment.

Q5: Do you offer technical support or sample testing?

A: Yes. Our engineering team can help you choose the right material grade and dimension. We can also send samples for your initial testing. We support prototype development and performance evaluation to ensure our glass works flawlessly in your design.

These answers incorporate industry guidance. Contact us if your question isn’t listed – we have decades of experience in ceramic glass applications.

Why Work With Us

Qingdao Vatti Glass Co.,Ltd is a highly professional manufacturer and supplier of glass and glass products,main dealing with tempered glass, insulated glass, laminated glass, solar glass, ceramic glass, borosilicate glass, quartz glass, fireproof glass, ceramic glass for fireplace, fireplace ceramic glass, fireplace glass, 4mm fireproof glass for fireplaces, pyroceram glass for Fireplace / Stove Glass / Ceramic Glass Fireplace Door / Ceramic Glass Sheet / Fire Rated Fireplace Glass Door.

Established Manufacturer: We are a direct OEM producer of high-performance ceramic glass. Control of our own production lines means we maintain strict quality control and competitive pricing.

Customization Expertise: From simple panels to complex shapes and coatings, we specialize in customized glass solutions. You tell us the dimensions and requirements, and we handle the engineering and machining.

Fast Lead Times: With modern equipment and a streamlined process, standard custom orders are typically ready in just 3–7 days after approval. We prioritize on-time delivery to meet your project schedules.

Global Shipping: We ship worldwide. Each panel is carefully packaged (foam protection, plywood crates) to ensure it arrives intact. Logistics and export compliance are handled by our experienced logistics team.

Technical Support: Our sales engineers have deep glass and appliance knowledge. We can advise on design integration, assist with standards compliance, and provide after-sales support.

Partnering with us gives you a reliable source of proprietary, high-value transparent ceramic glass. Our goal is to help your product stand out with superior glass components.

Request a Quote

Ready to discuss your project? Contact our sales team for a quote. Provide your specifications (size, thickness, quantity, any drawings or photos) via our contact form or by email. We will respond promptly with pricing and lead time. Our quotation will be tailored to your exact needs—no generic rates, just solutions that fit your application. Elevate your product’s performance and safety with high-quality transparent ceramic glass from a trusted manufacturer.

Thank you for considering our transparent ceramic glass. We look forward to working with you!
