Product Overview

Walkable Glass Panels are multi-layer laminated glass assemblies designed for architectural floors, staircases, walkways, skywalks, viewing platforms, and other applications where people may walk on or stand above a glass surface.

Unlike conventional single-pane glazing, walkable glass is typically constructed from three or more glass plies with a structural interlayer between each layer. PVB or SGP interlayers can be selected according to the required glass configuration, project conditions, and performance requirements.

When the glass is damaged, the interlayer helps retain the broken glass fragments and keeps the laminated assembly together, providing an important safety feature for architectural applications. Depending on the project, the walking surface can also be manufactured with an anti-slip treatment to improve traction in designated walking areas.

Is This Glass Suitable for Your Project?

Walkable glass is suitable for projects where a transparent or semi-transparent walking surface is required and the system is properly engineered for safety and load-bearing performance.

Its use depends on proper structural design and is not limited to a specific application type. The key requirement is that the entire supporting system, load conditions, and installation method are correctly engineered to ensure safe performance.

To determine suitability, the key consideration is not only the glass itself, but whether the entire supporting structure and installation system is designed to safely carry the expected loads and usage conditions.

For project-specific evaluation, VATTI can review your drawings and requirements to help confirm whether walkable glass is appropriate for your application. Final structural approval and installation design should always be completed by the project’s responsible structural engineer in accordance with local building codes and safety standards.

What Makes Glass Suitable for Walkable Applications?

A walkable glass panel is not simply a thick piece of glass. Its performance comes from the interaction between the glass plies, interlayers, panel dimensions, support system, loading conditions, and surface treatment.

Multi-Layer Laminated Construction

Walkable glass is commonly manufactured using three or more glass plies, with an interlayer positioned between adjacent glass layers.

This multi-layer construction provides additional redundancy and helps keep broken glass fragments attached to the interlayer if damage occurs.

Interlayer Selection

PVB and SGP are two common interlayer options for laminated architectural glass.

PVB offers proven glass-fragment retention and a wide range of visual options. SGP is often considered for demanding structural glazing applications where higher stiffness and improved load-bearing behavior are required.

The appropriate interlayer should be selected according to the project span, loading conditions, environmental exposure, support system, and design requirements.

Safety After Breakage

One of the key advantages of laminated glass is its ability to retain glass fragments after breakage. Instead of allowing broken pieces to separate freely, the interlayer helps hold the fragments together.

For walkable applications, however, laminated glass should always be treated as part of a complete engineered system. A damaged panel should be inspected and replaced or repaired according to the project’s safety requirements.

Surface Slip Resistance

Because the glass surface is directly exposed to foot traffic, slip resistance is another important consideration.

VATTI can provide customized anti-slip surface treatments according to the intended application, whether the panel is designed for an indoor dry environment or an outdoor area exposed to moisture.

Load & Safety: Designed Around Your Project Requirements

There is no single glass thickness suitable for every walkable glass application.

The appropriate glass configuration depends on several project-specific factors, including:

· Panel length and width

· Unsupported span

· Glass thickness and number of plies

· Interlayer type and thickness

· Support conditions

· Uniformly distributed loads

· Concentrated loads

· Expected pedestrian traffic

· Indoor or outdoor exposure

· Temperature and environmental conditions

· Deflection requirements

· Applicable building and safety standards

For example, a small glass floor panel supported on four sides may require a different configuration from a large-format skywalk panel supported along only two edges.

For this reason, VATTI does not recommend selecting a walkable glass configuration based solely on a nominal thickness. Instead, project parameters should be reviewed before the final glass build-up is confirmed.

In addition to structural design parameters, VATTI can also customize a wide range of product details according to project requirements, including:

· Glass type (clear, ultra-clear, tinted, etc.)

· Glass thickness and multi-layer combinations

· Interlayer type (PVB, SGP, etc.) and interlayer thickness

· Interlayer color options

· Panel dimensions and custom sizes

· Panel shapes (rectangular, irregular, curved, etc.)

· Edge processing (polished, beveled, CNC finishing, etc.)

· Drilling and cut-outs for installation requirements

· Surface treatment (including anti-slip options)

· Visual appearance and transparency level requirements

· Packaging and labeling for project-specific delivery

For your quotation request, providing the panel dimensions, support conditions, design loads and application environment will help us recommend a more suitable configuration and provide a fully customized solution.

Technical Specifications

Important: The thicknesses and configurations listed above are reference options rather than universal structural recommendations. Final glass composition should be determined according to the project design, loading conditions, support system and applicable engineering requirements.

Glass Structure Options

PVB Laminated Walkable Glass

PVB is a widely used interlayer for laminated architectural glass. It provides effective glass-fragment retention and can be supplied in different colors to meet architectural design requirements.

PVB laminated walkable glass can be considered for a wide range of indoor and outdoor architectural applications, subject to appropriate structural design and environmental conditions.

SGP Laminated Walkable Glass

SGP interlayers are often considered for larger or more demanding laminated glass applications where increased stiffness and improved structural performance are required.

SGP can be particularly useful when projects involve larger panels, greater spans or stricter deflection requirements. The final configuration should still be verified against the actual project loads and support conditions.

Customized Multi-Layer Glass

VATTI can manufacture customized multi-layer laminated glass based on approved project drawings and specifications.

Depending on the application, customers can specify glass type, glass thickness, number of glass plies, interlayer type, interlayer thickness, interlayer color, panel dimensions, panel shape, edge processing, drilled holes, and surface treatment.

Surface & Slip Resistance Options

For walkable applications, surface performance is as important as structural performance.

VATTI can provide customized anti-slip surface treatments for projects where additional traction is required. Surface options can be developed according to the intended application, visual requirements and environmental conditions.

Available Surface Considerations

· Clear walking surfaces

· Anti-slip patterns

· Customized surface effects

· Designated walking areas

· Customized textures and finishes

For outdoor walkways, stairs or other areas exposed to water, the slip-resistance requirement should be evaluated under the actual operating conditions.

The final surface treatment should balance:

Slip resistance + transparency + appearance + cleanability + durability

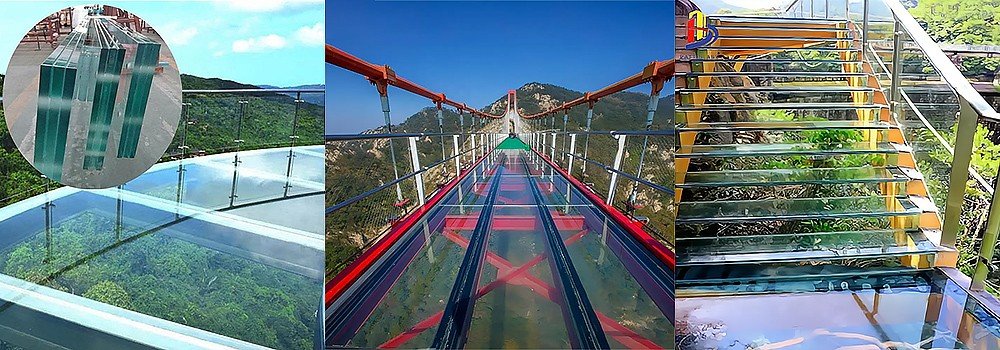

Where Can Walkable Glass Panels Be Used?

Walkable glass combines structural functionality with architectural transparency, making it suitable for applications where designers want to introduce daylight, visibility or a distinctive visual effect into a walking surface.

Glass Floors

Used in residential, commercial and hospitality projects to create transparent or partially transparent floor sections.

Glass Staircases

Can be used for stair treads and architectural staircase designs where transparency is an important design element.

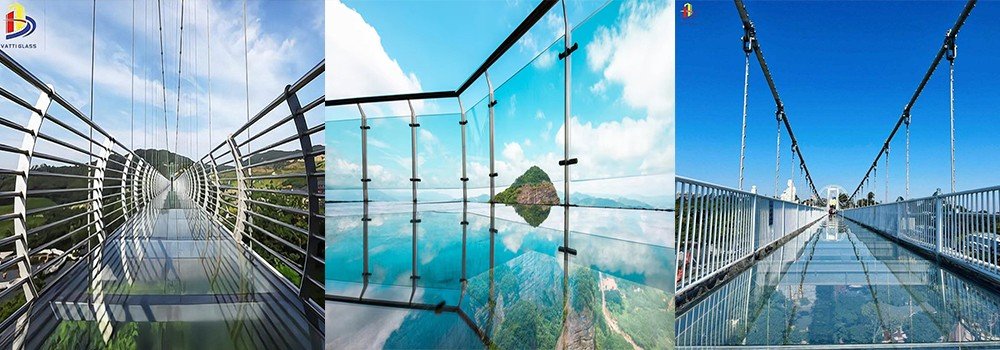

Glass Skywalks

Suitable for elevated walkways, bridges and observation areas where a transparent walking surface can enhance the visitor experience.

Observation Platforms

Walkable laminated glass can create transparent viewing areas while maintaining a visually open architectural design.

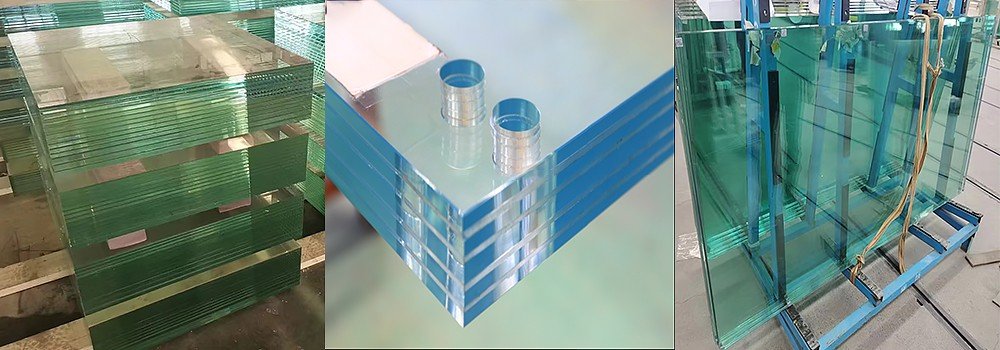

Glass Processing & Quality Control

Walkable glass requires accurate fabrication because dimensional errors, edge damage, drilling deviations or incorrect processing can affect installation and overall system performance. Therefore, every stage of production must be carefully controlled to ensure the final product meets the required safety and performance standards.

Our processing capabilities include precision glass cutting, edge grinding and polishing, customized shapes, CNC processing, water-jet cutting, precision drilling, customized surface treatment, and laminated glass processing. Each process is carried out according to strict production standards to ensure consistency and accuracy.

In addition, our production equipment is fully equipped with cutting machines, edging machines, tempering furnaces, autoclaves, CNC equipment, water-jet equipment, and drilling machines. This complete production system supports stable manufacturing quality and efficient project execution.

Quality inspection is carried out throughout the production process and can include checks on glass dimensions, thickness, edge condition, hole position and size, surface appearance, lamination quality, customized processing requirements, and packaging condition before shipment. Each inspection step is designed to ensure that the finished glass meets both design expectations and project requirements.

Finally, production tolerances and inspection requirements can be controlled according to the agreed project specification and applicable international standards, ensuring that each walkable glass panel is delivered with reliable quality and consistent performance.

Packaging & Delivery for Large Glass Panels

Large walkable glass panels require reliable packaging because their size, weight and finished edges can make them more sensitive to impact during handling and transportation.

VATTI uses specially designed wooden cases and protective packing to help reduce transportation-related damage.

Our Packaging Approach

· Reinforced wooden cases

· Edge protection

· Internal positioning and separation

· Protection against movement during transportation

· Packaging adapted to panel size and weight

· Container loading planning

· Export-oriented shipping support

With convenient access to major container shipping routes in the Qingdao area, VATTI can coordinate international shipment according to order quantity, destination and delivery requirements.

FAQ

What load can a walkable glass panel actually support?

The load capacity of walkable glass is not a fixed value and cannot be determined by thickness alone. It depends on the full system design, including panel size, support conditions, interlayer type, glass configuration, and how the load is distributed. For safety-critical applications, the final load rating must be calculated and confirmed by a structural engineer based on project-specific conditions.

Will a walkable glass panel feel flexible or “bouncy” when stepped on?

Slight deflection can occur depending on span length, support structure, and glass build-up. A properly designed system should feel stable under normal pedestrian use. Excessive flexing usually indicates that the panel or support system is not correctly engineered for the intended load.

Can walkable glass be installed in high-traffic public areas?

Yes, but only when the system is specifically engineered for public use. High-traffic applications require stricter design considerations, including higher load ratings, appropriate anti-slip treatment, and compliance with local safety regulations.

What happens if one layer of the laminated glass is damaged?

If one glass ply is damaged, the interlayer helps hold the structure together temporarily. However, the panel’s structural performance is compromised, and it should be replaced as soon as possible. It should not remain in service without inspection and approval from the responsible engineer.

Can walkable glass be repaired if it gets scratched or chipped?

Minor surface scratches may sometimes be polished depending on severity, but chips or structural edge damage generally cannot be repaired safely. In most cases, replacement is recommended to maintain structural integrity and safety.

Can walkable glass be used in extreme weather conditions?

It can be used in a wide range of climates, but performance depends on correct system design. Temperature changes, UV exposure, moisture, and freeze-thaw cycles must all be considered when selecting the glass configuration and interlayer.
