The tempered glass process is a controlled heat-treatment method used to improve the strength, thermal resistance, and safety performance of glass. Unlike ordinary annealed glass, tempered glass is heated to a controlled temperature and then rapidly cooled to create a specific internal stress pattern.
But how is glass tempered, and what happens before and after the heating stage?
From cutting and edge finishing to furnace heating, air quenching, inspection, and final handling, every stage of the tempered glass manufacturing process affects the quality of the finished panel. This guide explains the complete glass tempering process step by step and highlights the key factors manufacturers, buyers, and project specifiers should understand.

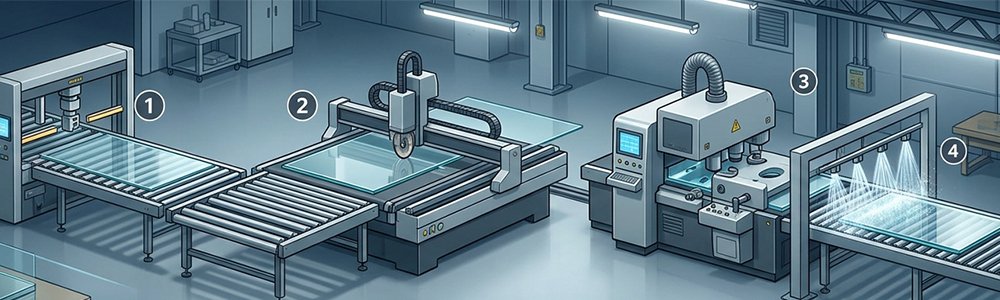

The glass tempering process can be divided into several key stages:
Confirm the glass type and final application
Cut the glass to its final dimensions
Finish edges, holes, and cutouts
Wash and inspect the fabricated glass

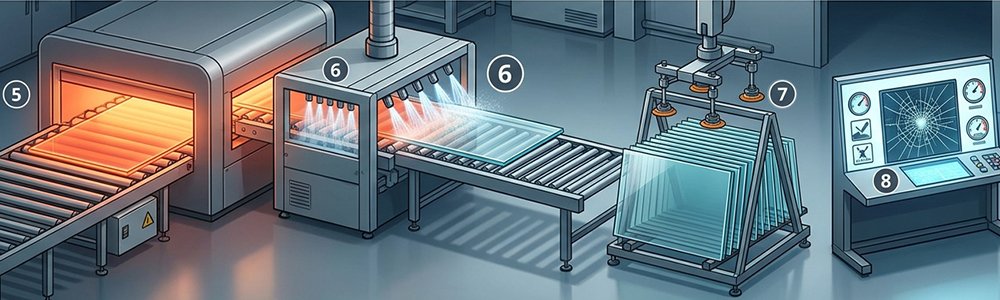

Heat the glass evenly in a tempering furnace
Quench the heated glass rapidly and uniformly
Cool, handle, and store the finished panels
Inspect and test the tempered glass
The quality of the final product depends on how well these stages work together. A problem that begins during cutting or edge processing can become much more serious during heating and quenching.
The tempered glass process changes the internal stress pattern of a finished glass piece. The pane is heated evenly, then quenched with air jets so the outer surfaces cool and contract faster than the center. This creates surface compression, which helps the glass resist impact, bending, and thermal stress better than untreated glass.
The process does not make glass unbreakable. Instead, it changes both strength and breakage behavior. When properly tempered glass fails, it usually fractures into small granular pieces rather than long, sharp shards, which is why it is widely used where safety matters.
Start by identifying the glass specification, thickness, shape, and intended use. Doors, partitions, shower screens, furniture tops, appliance panels, and architectural glazing may all need different tolerances or performance expectations. The application also affects whether the glass should be fully tempered, heat-strengthened, laminated, coated, or combined with another safety glass solution.
This step matters because not every pane should be tempered in the same way. Thickness influences heating time and quench intensity. Coatings, tints, ceramic frits, or special shapes may require adjusted furnace settings to avoid uneven heating, haze, roller marks, or warping.
Document all required holes, cutouts, corners, labels, and edge details before production begins. Once the glass enters the furnace, the design is effectively locked in. A missed cutout or wrong dimension usually means starting over with a new piece rather than correcting the tempered panel.
Cut the raw glass sheet to the exact required dimensions before any heat treatment. Precision at this stage helps reduce waste and prevents installation problems later. Operators typically score and break the glass using equipment suited to the thickness, size, and production volume.
The cut must be clean and controlled. Small chips, deep score marks, or rough break lines can become stress concentration points during heating and quenching. If those flaws remain, the pane may break in the furnace, fail during handling, or perform poorly in service.
For shaped panels, templates or digital cutting programs help maintain repeatability. Curves, notches, and interior cutouts need special attention because tight inside corners are more vulnerable to stress. When possible, use generous radii rather than sharp internal corners to improve durability.
Grind, polish, arris, bevel, or otherwise finish the edges according to the product requirement. Edging removes sharpness and reduces the tiny defects left by cutting. It also improves handling safety and supports the long-term strength of the finished tempered glass.
Drill holes and create notches before tempering. Holes should be placed with enough distance from edges and corners to reduce breakage risk, and their edges should be smooth. Hardware holes for hinges, handles, brackets, or fasteners need accurate placement because they cannot be moved later.
This is one of the most important practical rules in tempered glass manufacturing: all fabrication must happen before heat treatment. If a panel needs machining after tempering, the original production sequence was not planned correctly. Avoid forcing modifications after the fact, because the stored stress in tempered glass can be released suddenly.
Clean the glass before it enters the furnace. Dust, cutting oil, fingerprints, abrasive residue, and glass particles can bake onto the surface or create visible defects. A washer with clean water, suitable brushes, and effective drying helps keep the panel clear and ready for heat treatment.
Inspection should happen before and after washing. Look for chips, scratches, cracks, inclusions, coating defects, poor edgework, inaccurate dimensions, and contamination. Rejecting a flawed panel at this stage is usually less costly than losing it inside the furnace or discovering the defect after tempering.
A good pre-furnace checklist includes:
Dimensions match the production drawing
All holes and cutouts are complete
Edges are smooth and consistent
Surfaces are clean and dry
Coatings or printed areas face the correct direction
No visible cracks, deep scratches, or serious chips are present
Glass thickness and type match the furnace recipe
Move the prepared glass into the tempering furnace and heat it evenly until it reaches the temperature range needed for tempering. The exact setting depends on thickness, composition, coating, color, and equipment. The goal is to make the glass hot enough for stress formation during quenching without overheating, distorting, or marking the surface.
Uniform heat is essential. If one area heats faster than another, the pane can bow, ripple, break, or come out with optical distortion. Furnace rollers, convection systems, heating zones, and loading patterns all affect the result, so operators adjust recipes based on the product and previous quality feedback.
This is where modern glass manufacturing methods rely heavily on process control. Consistent furnace conditions help produce consistent strength, flatness, and appearance. Rushing the heating stage may increase output for a moment, but it can also increase defects, rejects, and safety risks.
Transfer the hot glass from the furnace into the quench section and cool it rapidly with controlled air jets. The outer surfaces cool first and lock into compression. The center cools more slowly, creating the internal tension that balances the compressed surfaces.
Air pressure, nozzle spacing, glass thickness, and cooling time must work together. If the quench is too weak, the glass may not reach the desired temper level. If it is uneven, the finished panel may warp, show stress imbalance, or fail quality checks.
The quench stage is the heart of the tempered glass process. It is also one of the most sensitive stages because the stress profile is created in a short period. Operators should monitor equipment condition, airflow consistency, and recipe settings instead of treating quenching as a simple blast of air.
After quenching, allow the glass to cool to a safe handling temperature. Even after the main air cooling is complete, panels should be moved carefully to avoid edge impacts. Tempered glass is stronger across its face, but its edges remain vulnerable to hard knocks and poor handling.
Store panels vertically on suitable racks with protective separation between pieces. Avoid direct contact between exposed edges, metal surfaces, and abrasive materials. Good storage prevents scratches, chips, and pressure points that could compromise the product before installation.
Labeling and traceability can also be useful, especially in larger production environments. Clear identification helps match panels to projects, openings, hardware sets, or inspection records. This reduces mix-ups and supports a smoother installation process.
Inspect the finished glass for both appearance and performance indicators. Visual checks may include surface marks, roller wave, bow, haze, scratches, chips, and dimensional accuracy. Quality teams may also check stress patterns or conduct destructive break tests on sample pieces when required by the applicable specification.
A break test, when used, confirms that the glass breaks into the expected small fragments rather than large sharp pieces. Other checks may focus on flatness, edge quality, hole accuracy, and whether the panel matches the order requirements. The right testing approach depends on the product, market, and standard being followed.
Do not rely only on the fact that the pane passed through a furnace. True quality comes from a controlled process, suitable glass, proper fabrication, and documented inspection. When these elements work together, the main tempered glass benefits become more reliable in real-world use.
Tempering defects often trace back to preparation, furnace control, or quench uniformity. The best prevention is a steady workflow where each stage checks the previous one instead of pushing flaws forward. When defects appear, review the full process rather than adjusting only the final stage.
Watch for these common issues:
Spontaneous breakage during production: Check edge chips, inclusions, deep scratches, incorrect heating, and unsuitable glass.
Excessive bow or waviness: Review furnace temperature balance, roller condition, heating time, and glass loading.
Poor break pattern: Confirm quench pressure, cooling uniformity, thickness settings, and equipment calibration.
Surface marks or stains: Improve washing, drying, handling, and furnace cleanliness.
Hole or notch failures: Review fabrication quality, placement, edge smoothing, and design geometry.
Troubleshooting works best when operators record settings, defects, glass types, and corrective actions. Over time, those records make it easier to identify patterns and refine production recipes.
The tempered glass process is a carefully controlled sequence rather than a single heating operation. Accurate cutting, proper edge finishing, precise drilling, thorough cleaning, uniform furnace heating, rapid quenching, careful handling, and final inspection all contribute to the quality of the finished glass.
For manufacturers, understanding every stage of the tempered glass manufacturing process helps reduce defects and improve production consistency. For buyers and project specifiers, understanding how glass is tempered makes it easier to evaluate manufacturing quality and select the right glass for a specific application.
The key principle is simple: high-quality tempered glass starts before the furnace and continues through final inspection and handling.
