Product Overview

Fireplace Insert Glass Panel brings together clear flame visibility, dependable heat resistance, and long-term stability for fireplaces, wood stoves, and heating appliances. Made from advanced glass-ceramic material, it is engineered to perform in high-temperature environments where ordinary glass would fail, while still delivering a clean and attractive viewing surface for modern fireplace systems.

Designed for repeated heating and cooling cycles, this ceramic fireplace glass maintains its shape, clarity, and structural integrity under demanding operating conditions. With a maximum application temperature of up to 760°C (1400°F), it offers a safer and more durable solution for fireplace doors, stove windows, and replacement glass applications.

Our transparent ceramic fireplace glass is available in customized sizes, shapes, thicknesses, and edge processing options to meet the requirements of fireplace manufacturers, distributors, and replacement glass suppliers worldwide.

Why Fireplace Insert Glass Matters in Modern Fireplace Design

Modern fireplaces are no longer only heating devices; they have become important architectural and interior design elements. The viewing glass plays a critical role in balancing safety, performance, and visual experience.

A high-quality fireplace insert glass panel allows users to enjoy a realistic flame view while preventing direct contact with high-temperature combustion areas. During operation, fireplace glass must withstand continuous exposure to intense heat, rapid temperature fluctuations, and repeated thermal cycles.

Using unsuitable glass materials may lead to:

· Sudden cracking caused by thermal stress

· Reduced flame visibility due to surface damage

· Shorter service life under continuous heating conditions

· Increased maintenance and replacement costs

Ceramic glass for European fireplaces is specifically engineered for these demanding environments. Its extremely low thermal expansion prevents internal stress accumulation, ensuring stable performance even during frequent fireplace use.

Inside the Material: How Ceramic Glass Protects Fireplace

Fireplace insert glass panels are manufactured from transparent microcrystalline glass, a special glass-ceramic material produced through controlled crystallization of base glass.

During the manufacturing process, microscopic crystal structures are uniformly formed inside the glass matrix. This unique structure provides properties that conventional glass cannot achieve.

Material Advantages

Near-Zero Thermal Expansion

The thermal expansion coefficient of fireplace glass ceramic is:

a(20-700°C) = (0 ± 0.5) × 10⁻⁶/K

This means the material experiences minimal dimensional changes when exposed to extreme temperature variations, reducing the risk of thermal stress cracks.

High Mechanical Strength

The glass-ceramic structure provides:

· Density: 2.6 g/cm³

· Elastic Modulus: 93 × 10³ MPa

· Bending Strength: 35 MPa

These mechanical properties ensure reliable performance during installation, transportation, and daily fireplace operation.

Chemical Durability

The material provides excellent resistance against environmental conditions:

· Acid Resistance: DIN 12116 HGB1

· Alkali Resistance: DIN ISO719 HGB2

This makes it suitable for long-term exposure to heat, smoke, and cleaning environments.

Performance During Real Fireplace Operation

A fireplace glass panel must maintain structural stability during repeated heating and cooling cycles. Our ceramic fireplace glass is designed for continuous high-temperature applications.

Temperature Resistance & Service Life

Thermal Shock Resistance

The material can withstand:

· Identical temperature difference: RTD ≤760°C

· Maximum thermal shock resistance: Tes Max ≤760°C

The fireplace glass ceramic maintains integrity without breaking under rapid temperature changes, making it suitable for wood-burning fireplaces, gas fireplaces, and high-temperature heating equipment.

Fireplace Insert Glass Selection Guide: Avoid Wrong Replacement Choices

Choosing the correct fireplace glass is essential for safety, performance, and long-term reliability. A fireplace insert may look simple from the outside, but the glass panel must match the appliance in terms of temperature resistance, size, thickness, edge design, and installation method. Selecting the wrong replacement glass can lead to poor sealing, uneven stress, reduced visibility, or even dangerous cracking during operation.

Not all heat-resistant glass materials are suitable for fireplace applications. Some products may look similar but perform very differently once exposed to direct flame, radiant heat, and repeated thermal cycling. For this reason, replacement glass should never be chosen based on appearance alone.

Why the Right Glass Selection Matters

A properly selected fireplace glass panel helps ensure:

· Safe operation under high temperatures

· Stable performance during repeated heating and cooling

· Clear flame visibility over long-term use

· Proper fit within the fireplace door or frame

· Reduced risk of premature replacement

If the wrong material is installed, the fireplace may still appear functional at first, but hidden stress can build up quickly. Over time, this may cause edge chipping, surface damage, distortion, or sudden breakage.

Ceramic Glass vs Ordinary Tempered Glass

Ceramic fireplace glass is specifically designed for direct exposure to high heat and rapid temperature changes. Tempered glass, by contrast, is better suited for general safety applications and cannot reliably handle the same thermal conditions inside a fireplace insert.

Common Mistakes When Replacing Fireplace Glass

Many replacement problems happen because the wrong assumptions are made during purchase. Common mistakes include:

· Choosing glass only by thickness without checking temperature rating

· Measuring the frame opening instead of the original glass panel

· Using tempered glass because it is cheaper or easier to source

· Ignoring corner radius, hole position, or edge finish

· Replacing a ceramic panel with ordinary heat-resistant glass

· Assuming all fireplace glass products are interchangeable

Even small differences in size or processing can affect installation quality. A panel that is slightly too large may not fit properly, while one that is too small may leave gaps that affect sealing and stability.

Key Factors to Consider Before Purchase

When selecting replacement fireplace glass, consider the following points carefully:

1. Operating Temperature

Confirm the fireplace working temperature to ensure the glass can withstand continuous heat exposure.

Different fireplace models operate at different temperature levels. A wood-burning fireplace may generate stronger localized heat than a decorative gas unit, while some stoves maintain high temperatures for long periods. The replacement glass must be rated for the actual working environment, not just the maximum temperature printed on the appliance.

2. Glass Thickness

Thickness selection depends on:

· Fireplace structure

· Door frame design

· Heat exposure level

· Manufacturer requirements

Thicker glass may provide greater rigidity, but it is not always the correct choice. The panel must fit the frame accurately and work with the original mounting system. If the thickness is incorrect, the glass may not seat properly or may experience uneven pressure during installation.

3. Size Accuracy

Incorrect dimensions may cause installation problems or uneven stress distribution.

For replacement orders, the width, height, and thickness should be measured precisely. In many cases, the original glass panel should be measured directly rather than relying only on the fireplace model number. If the panel has rounded corners, cutouts, or holes, these details must also be confirmed.

4. Edge Processing

Available processing includes:

· Cutting

· Grinding

· Polishing

· Drilling

· Custom shaping

Edge quality is especially important for fireplace glass because the edges are often the most vulnerable area during installation and thermal cycling. Smooth, well-finished edges help reduce stress concentration and improve durability.

5. Shape and Corner Design

Fireplace glass panels are not always simple rectangles. Some models require:

· Square panels

· Round panels

· R-corner panels

· Irregular custom shapes

If the shape does not match the original design, the panel may not fit into the door frame or may interfere with sealing components.

6. Visibility Requirements

Some users prioritize maximum transparency, while others prefer a darker appearance for a more refined visual effect. Depending on the fireplace design, transparent ceramic glass or dark brown ceramic glass may be more suitable.

7. Installation Method

Different fireplaces use different mounting systems, such as:

· Clamping frames

· Gasket sealing

· Screw-fixed doors

· Recessed panel structures

The replacement glass must be compatible with the installation method to avoid pressure points or loose fitting.

Signs That the Wrong Glass Has Been Selected

If the replacement glass is not suitable, the following issues may appear:

· Difficulty during installation

· Gaps between the glass and frame

· Uneven pressure on the panel

· Visible distortion under heat

· Surface discoloration after use

· Cracks starting from the edges

· Reduced flame visibility

· Repeated replacement failures

These signs usually indicate that the material, size, or processing specification does not match the fireplace requirements.

Recommended Selection Checklist

Before placing an order, confirm:

· Material type: ceramic fireplace glass

· Maximum temperature rating

· Exact width and height

· Thickness

· Corner style

· Hole or cutout requirements

· Edge finish

· Color preference

· Fireplace model compatibility

A complete checklist helps reduce errors and ensures the replacement panel performs as expected from the first installation.

Optical Quality Control for Clear Flame Viewing

A fireplace is not only a heating system but also a visual centerpiece. Clear flame visibility depends on the optical quality of the glass panel.

Our transparent ceramic fireplace glass provides:

· High light transmission

· Stable transparency under high temperatures

· Low optical distortion

· Smooth surface finish

Each panel is inspected during production to ensure:

· Surface quality

· Dimensional accuracy

· Edge condition

· Appearance consistency

The result is a clean and unobstructed flame viewing experience for residential and commercial fireplace applications.

Technical Specifications

Fireplace Insert Glass Panel Specifications

Applications

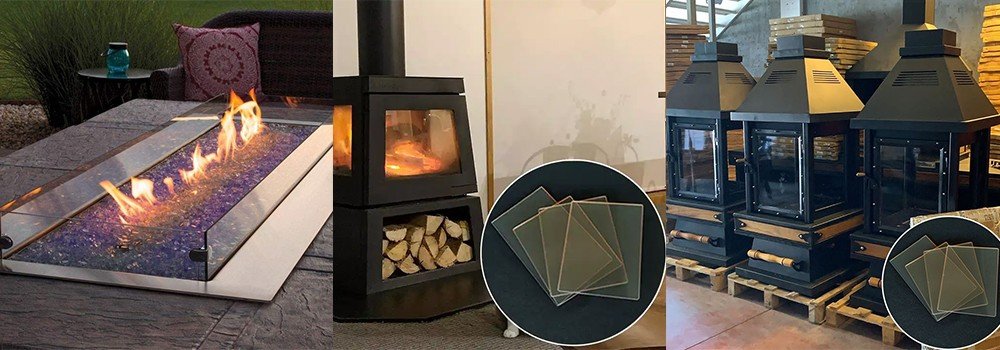

Fireplace insert glass panels are widely used in various heating and high-temperature equipment.

Residential Fireplaces

· Wood-burning fireplaces

· Gas fireplaces

· Electric fireplace viewing panels

· Fireplace doors

Heating Equipment

· Stove glass replacement

· Pellet stove windows

· Heating appliance inspection windows

Industrial Applications

Due to excellent thermal stability, ceramic glass is also used in:

· Microwave ovens

· Convection ovens

· Electric radiators

· Wave soldering equipment

· Infrared dryers

· Photovoltaic equipment protection

Customization Options

We provide flexible OEM and custom processing services for fireplace glass manufacturers and distributors.

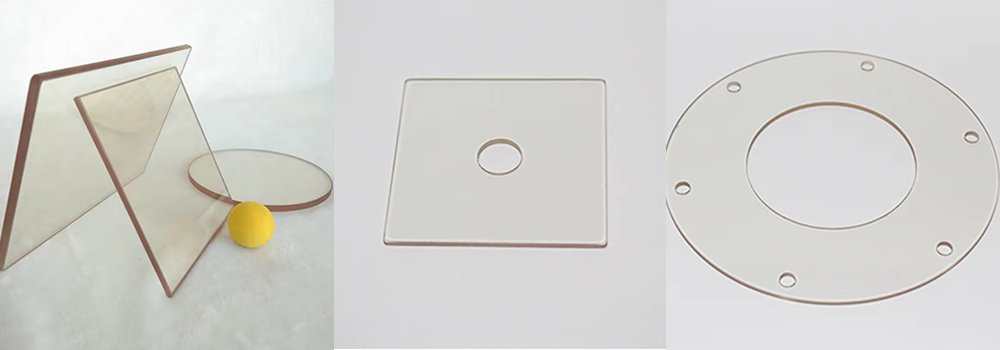

Size & Shape

Supported designs include:

· Rectangle

· Square

· Circular

· R-corner

· Complex irregular shapes

Surface Processing

Options include:

· Precision cutting

· Edge grinding

· Edge polishing

· Hole drilling

· Special machining

Appearance Options

Available glass varieties:

· Transparent ceramic glass

· Dark brown ceramic glass with ball-point pattern

Our engineering team can assist customers with material selection, drawing confirmation, and production solutions.

Why Choose Our Fireplace Insert Glass Panel

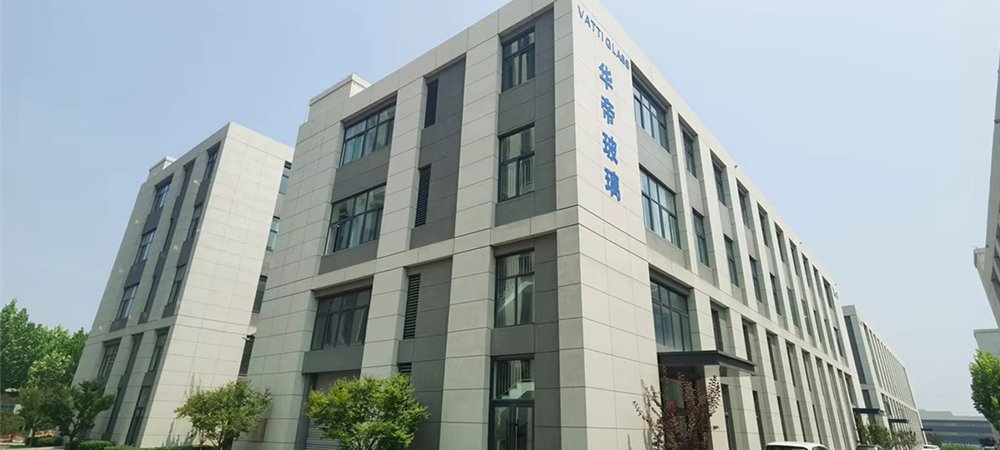

As a professional ceramic glass manufacturer, we provide reliable glass solutions for fireplace brands, distributors, and industrial customers worldwide.

Professional Manufacturing Capability

We specialize in:

· Ceramic glass

· Fireplace glass ceramic

· Fireproof glass products

· Customized glass processing

Quality Control

Our production process follows strict inspection procedures to ensure:

· Stable material performance

· Accurate dimensions

· Reliable heat resistance

· Consistent product quality

Global Supply Support

We provide international trade services including:

· FOB

· CFR

· CIF

· EXW

· FCA

· CPT

· DDP

· DDU

· Express delivery

Supported payment methods:

· T/T

· L/C

· PayPal

· Western Union

With independent import and export capability, our fireplace glass products are supplied to customers in Europe, America, Asia, Africa, and other global markets.

FAQ

What is fireplace insert glass made of?

Fireplace insert glass is made from transparent ceramic glass, also known as glass-ceramic material. It combines high temperature resistance, thermal stability, and optical clarity.

Can tempered glass be used for fireplaces?

No. Tempered glass is not recommended for fireplace applications because it cannot withstand the same extreme thermal conditions and rapid temperature changes as ceramic fireplace glass.

What temperature can fireplace ceramic glass withstand?

High-quality ceramic fireplace glass can withstand temperatures up to 760°C (1400°F) depending on operating conditions.

Is fireplace glass resistant to thermal shock?

Yes. Fireplace glass ceramic has near-zero thermal expansion and excellent thermal shock resistance, allowing it to handle rapid temperature changes without cracking.

Can you customize fireplace glass panels?

Yes. We provide OEM customization including size, shape, thickness, edge processing, and special designs according to customer drawings.

How long does fireplace glass last?

Service life depends on operating temperature. Under moderate temperatures such as 560°C, the glass can operate continuously for approximately 20,000 hours.

Request a Quote

Looking for reliable fireplace ceramic glass, transparent ceramic fireplace glass, or heat-resistant fireplace glass?

Contact our technical team for customized solutions, product specifications, and professional support.
