Tempered and laminated glass may look similar, but they are designed to provide different types of safety. Tempered glass is heat-treated for greater strength and usually breaks into small pieces. Laminated glass contains a plastic interlayer that helps hold broken fragments together. You can often identify the type by checking its markings, edge, stress patterns, application, and existing break pattern without damaging it.
Check several clues together:

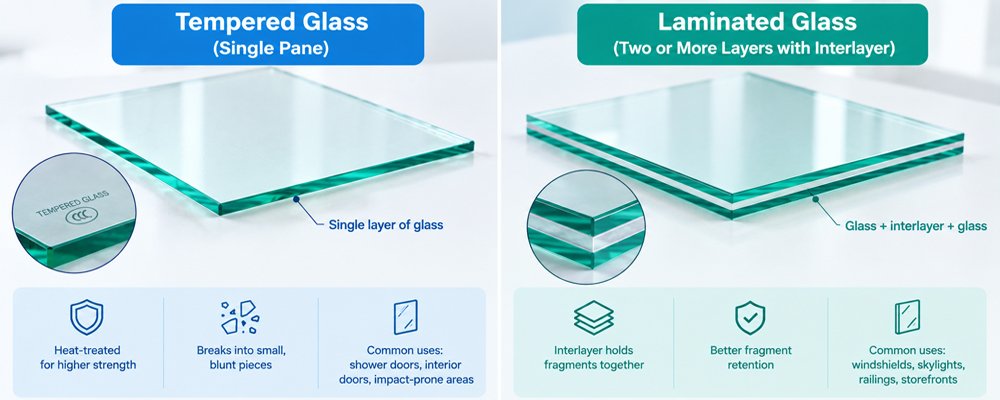

· Tempered glass: Usually a single heat-treated pane that breaks into many small pieces.
· Laminated glass: Two or more glass layers bonded with an interlayer that holds fragments together.
· Tempered laminated glass: Laminated glass made with tempered glass layers, combining both properties.
A corner safety mark or stress pattern seen through polarized lenses may indicate tempered glass. A visible glass → interlayer → glass edge or cracked glass that remains attached suggests laminated glass.
Installed glass may have hidden edges, faint markings, tint, coatings, or dirt, so no single clue is always conclusive.
Tempered glass often has a small etched, sandblasted, ceramic, or printed mark near one corner. It may include terms such as “tempered,” “safety glass,” a manufacturer name, or a standards reference. Inspect all accessible corners from both sides, using a flashlight at an angle if necessary.
Laminated glass may also have a safety glazing mark, especially in doors, storefronts, railings, skylights, and other regulated applications. Therefore, a missing mark does not prove that the glass is neither tempered nor laminated. Frames, gaskets, tint, coatings, and dirt can also hide markings.
The edge is one of the best ways to identify laminated glass. If it is safely visible, look for a layered structure:
glass → interlayer → glass
The interlayer may appear clear, milky, greenish, or slightly reflective.
Tempered glass usually appears as one solid sheet at the edge, although its edge may be polished, seamed, or ground. If the edge is enclosed in a frame, do not remove gaskets or stops just to inspect it unless you are qualified to handle the glass safely.
Tempered glass may show dark bands, spots, waves, or checker-like patterns when viewed through polarized lenses. Try looking at the glass through polarized sunglasses while slightly changing your viewing angle. Reflections from a phone or laptop screen can also help reveal these patterns.
This is only a supporting test. Some tempered glass shows very subtle patterns, and coatings or reflections can create similar effects. Laminated glass may also show stress patterns if one or more of its layers are tempered, so this method cannot distinguish ordinary tempered glass from tempered laminated glass.
The location of the glass can provide context, but it cannot confirm the construction by itself.
· Shower doors and many interior doors: Tempered glass is common because it is impact-resistant and breaks into small pieces.
· Windshields: Laminated glass is used because the interlayer helps retain fragments.
· Skylights and overhead glazing: Laminated glass may help reduce falling fragments and maintain a barrier after cracking.
· Railings and storefronts: Laminated glass may be selected for fragment retention and barrier performance.
· Security glazing: Laminated constructions can provide better retention and resistance to penetration.
· Applications requiring both strength and retention: Tempered laminated glass may be specified.
The correct glass type also depends on the opening, framing, panel size, structural requirements, local codes, and required safety performance.
Never break glass intentionally to identify it.

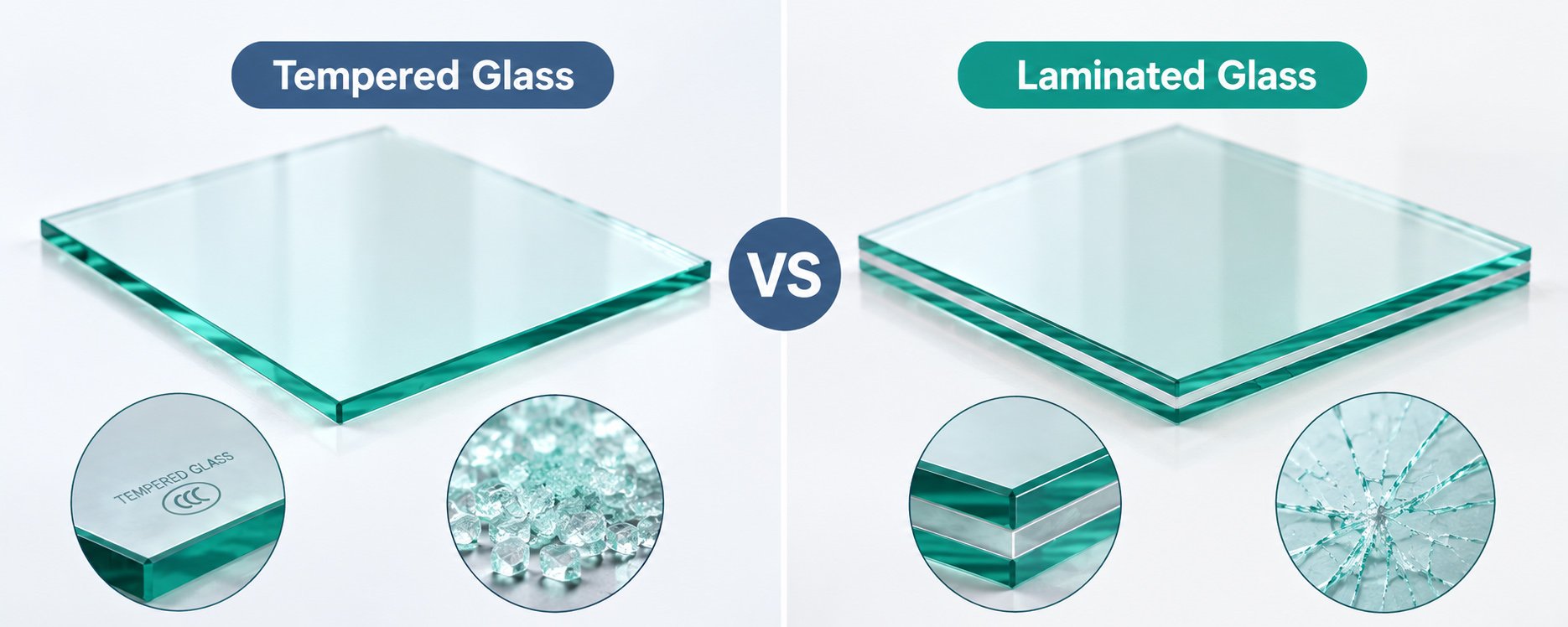

When tempered glass fails, it usually breaks into many small granular pieces rather than long sharp shards. Laminated glass generally cracks while the interlayer keeps many fragments attached to the pane.
This distinction is useful, but it does not always identify the complete construction. Tempered laminated glass can produce small fragments from the tempered layers while the interlayer holds them together.
Feature | Tempered Glass | Laminated Glass |
Construction | Usually a single heat-treated pane | Two or more glass layers bonded to an interlayer |
Exposed edge | Usually appears as one solid pane | May show a layered structure |
Break pattern | Breaks into many small pieces | Cracks while fragments often remain attached |
Fragment retention | Limited after breakage | Better fragment retention |
Post-breakage barrier | Usually reduced after breakage | May remain partially intact |
Modification after processing | Cannot normally be cut or drilled after tempering | Requires specialized processing |
Common applications | Shower doors, interior doors, impact-prone glazing | Windshields, skylights, railings, storefronts, security glazing |
Main safety advantage | Reduces the risk of large sharp shards | Helps keep fragments from falling away |
Neither type is automatically safer in every situation. Tempered glass is mainly used for strength and safer breakage, while laminated glass is used for fragment retention and continued barrier performance.
Tempered laminated glass consists of tempered glass layers bonded with an interlayer. It combines the small-piece break pattern of tempered glass with the fragment retention of laminated glass.
It may be identified by a combination of clues: a tempering mark or polarized stress pattern, together with a layered edge or fragments held by an interlayer. Because these features may not all be visible, do not treat “tempered,” “laminated,” and “tempered laminated” as interchangeable when ordering replacement glass.
Misidentifying tempered or laminated glass is not only a labeling problem. It can affect safety, installation, cost, and the way the opening behaves after damage.
Tempered glass and laminated glass manage breakage differently. Installing the wrong type may leave a door, railing, skylight, or overhead panel without the fragment-retention or break-pattern performance required for that location.
Glass thickness, edge construction, weight, and processing requirements can differ. A replacement pane may not fit the frame, gasket, channel, hardware, or insulated glass assembly correctly even if its visible dimensions appear similar.
Tempered glass generally must be cut, drilled, and edge-finished before tempering. If holes, notches, or other processing details are missing from the order, the pane may need to be remade rather than modified on site.
A cracked pane, a stressed tempered pane, or a laminated pane with damaged edges can behave unpredictably during handling. Removing stops, cutting gaskets, or applying pressure without the right equipment can cause sudden breakage or release sharp fragments.
Safety glazing markings, product documentation, and installation details may be required for certain applications. An unverified substitute can create problems during inspection, insurance claims, property transfer, or warranty service.
For these reasons, identification should focus not only on what the glass looks like, but also on what the opening is required to do. When the pane is safety-critical or already damaged, provide the recorded measurements, photographs, markings, and installation details to a qualified glass professional before ordering or removing it.
Treat unknown glass as hazardous until its construction and condition are confirmed. Do not strike, bend, drill, grind, score, or cut it to identify the type. Tempered glass can fail suddenly, while laminated glass may contain sharp fragments or hidden cracks.
If the glass is cracked or broken:
· Wear eye protection and protective gloves when working nearby.
· Keep children, pets, and unnecessary foot traffic away.
· Do not pull or manipulate fragments.
· Do not lean tools, ladders, or your body against the pane.
· Use extra caution with glass near stairs, in doors, above shoulder height, or exposed to wind.
Temporary measures may control loose fragments, but they are not a structural repair.
Yes, laminated glass can reduce some outside noise because its interlayer helps dampen vibration. The actual improvement depends on the interlayer type, glass thickness, air gaps, window frame, and installation quality. Standard laminated glass is not automatically soundproof, so acoustic-rated products may be needed for busy roads, airports, or commercial spaces.
Many laminated glass products block a significant amount of ultraviolet radiation because the interlayer filters UV wavelengths. This can help reduce fading of flooring, furniture, artwork, and merchandise near windows. The exact level of protection depends on the interlayer and any additional glass coatings.
Tempered glass generally cannot be cut, drilled, or reshaped after the tempering process. Any modification made after tempering can release the internal stress and cause the entire pane to shatter suddenly. Cutting, edgework, holes, and notches must be completed before the glass is tempered. If the size or shape needs to be changed, the glass usually has to be replaced with a new piece that is processed to the required specifications.
The interlayer can discolor, become cloudy, or develop bubbles when it is exposed to moisture, heat, ultraviolet radiation, manufacturing defects, or seal failure. This is more common in older or damaged laminated glass. If visibility, weather resistance, or structural performance is affected, the panel may need replacement.
Not automatically. Laminated glass may be a suitable upgrade in some situations, but it can differ in weight, thickness, edge requirements, appearance, and structural performance. The replacement must also meet the requirements of the frame, hardware, building code, and intended use. A glazier should confirm the correct specification before ordering.
A corner tempering mark or polarized stress pattern may indicate tempered glass. A layered edge or cracked glass that remains attached suggests laminated glass. Evidence of both may indicate tempered laminated glass.
For a basic identification, check the safety mark, exposed edge, polarized-light pattern, application, and existing break behavior. Never intentionally damage the glass to test it.
For large, elevated, cracked, or safety-critical glass, rely on professional confirmation to ensure that any replacement matches the original construction and installation requirements.
