Patterned Laminated Glass brings together the decorative texture and light-diffusing effect of embossed glass with the safety benefits of laminated glazing. It is produced by bonding patterned glass with another glass pane using an interlayer such as PVB, EVA, or SGP, creating a glazing solution that balances decorative appeal, visual privacy, light transmission, and safety.
Patterned Laminated Glass is a type of decorative laminated glass made by incorporating patterned or embossed glass into a laminated glass construction. Patterned glass has a textured surface formed during glass manufacturing, creating a relief pattern that changes the way light and images pass through the glass.
When patterned glass is laminated with an interlayer and another glass pane, the resulting product combines the optical characteristics of textured glass with the fragment-retention properties of laminated glazing. If the glass is damaged, the interlayer helps keep broken pieces bonded together rather than allowing them to fall freely.
The pattern also affects visibility. Depending on its depth, geometry, and density, it can distort or obscure objects behind the glass while still allowing natural or artificial light to pass through. This makes patterned laminated glass particularly useful when a project requires a combination of decoration, controlled visibility, and laminated safety performance.

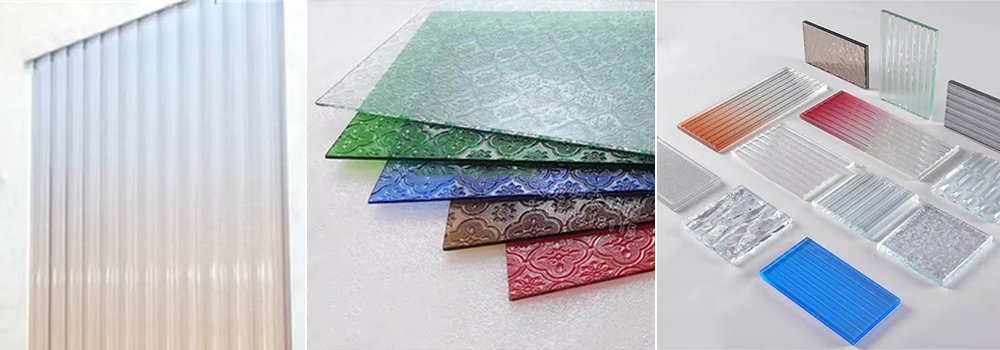

Available glass options may include clear glass, ultra-clear glass, tinted glass, and other compatible combinations. Interlayer selection can include PVB, EVA, or SGP, depending on the required construction and application.
The pattern is one of the defining characteristics of patterned laminated glass. Unlike plain clear glass, a textured surface changes both the visual appearance of the panel and the way light travels through it.
Embossed patterns add depth and surface character to glazing. Depending on the pattern, the glass can create a subtle texture or become a more prominent architectural feature.
Patterned surfaces can scatter and diffuse transmitted light, creating a softer visual effect than completely clear glazing. The actual light-transmission characteristics depend on the specific pattern, glass composition, thickness, and lighting conditions.
The pattern can interrupt a direct line of sight and make objects or people behind the glass less distinct. Finer patterns may provide moderate visual screening, while denser or deeper patterns can create a stronger privacy effect.
Different pattern geometries can complement different design styles. Linear textures can create a contemporary appearance, geometric patterns can emphasize structure, while organic patterns can introduce a softer decorative element.
The interlayer provides an additional safety function by bonding the glass plies together. When breakage occurs, the interlayer helps retain fragments within the laminated construction.
It is important to note that properties such as acoustic performance, UV reduction, and solar or thermal performance depend largely on the complete glass and interlayer configuration rather than the pattern alone.
Pattern selection should be based not only on appearance but also on the desired level of visual privacy, light diffusion, and architectural expression. Different textures can produce significantly different effects in the same space.

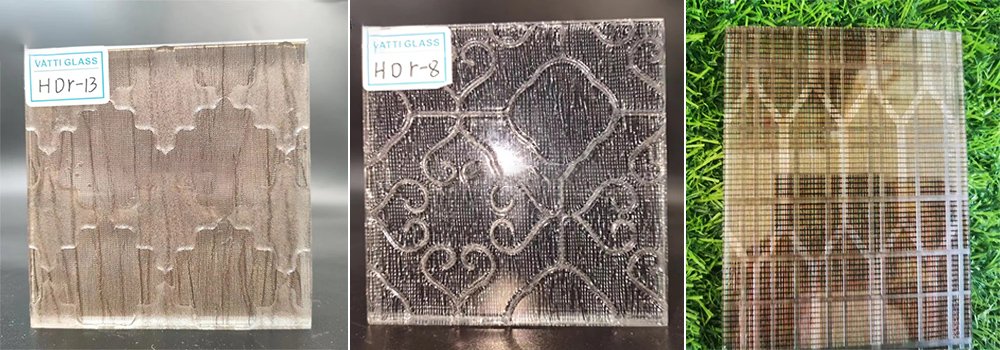

Vertical or horizontal textures create a clean visual rhythm and work well with contemporary architectural interiors. They can be used for office partitions, doors, decorative screens, and other applications where a structured visual effect is preferred.
Repeating geometric textures provide a stronger decorative identity. They are suitable for modern commercial interiors, retail environments, hospitality spaces, and feature glazing.

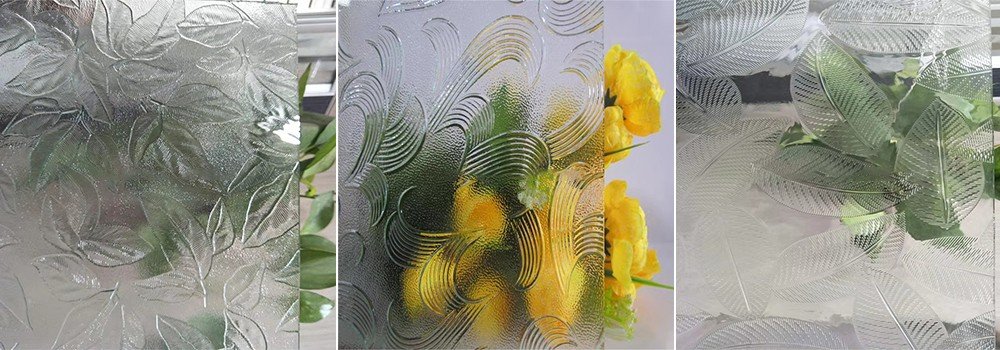

Floral, leaf, wave, and other organic textures can create a softer visual atmosphere. These patterns are often considered for hotels, residential interiors, decorative partitions, and feature walls.
Fine patterns provide a more subtle appearance while disrupting direct visibility. They can be useful for meeting rooms, office partitions, interior screens, and areas where privacy is required without creating a completely opaque surface.
For projects requiring a specific visual effect, pattern selection can be coordinated with glass type, interlayer, panel size, shape, and fabrication requirements. Custom requirements should be reviewed against the available manufacturing process and project specifications before production.
Patterned Laminated Glass is commonly used in offices, hotels, homes, bathrooms, retail spaces, and other interior areas. It is suitable for partitions, doors, screens, feature walls, and decorative glazing where texture, light diffusion, and visual privacy are desired.
For applications such as balustrades, overhead glazing, or structural glazing, the glass construction should be selected according to the project requirements and applicable safety standards.
One of the key reasons to choose Patterned Laminated Glass is the ability to balance visual privacy with light transmission.
Traditional opaque materials can provide a high degree of privacy but may significantly reduce daylight. Clear glass provides excellent transparency but offers little visual screening. Patterned glass provides another option by using surface texture to distort views while continuing to transmit light.
The level of privacy depends on several factors, including:
· Pattern geometry and depth
· Pattern density
· Pattern coverage
· Glass color and transparency
· Interlayer characteristics
· Viewing distance
· Viewing angle
· Lighting conditions on both sides of the glass
A relatively open pattern may allow more direct visibility, while a denser pattern can create stronger visual distortion.
Light transmission should also be evaluated based on the actual glass construction rather than the pattern name alone. For projects with specific requirements for daylight, privacy, or optical appearance, we recommend reviewing a physical sample or project-specific technical data before confirming bulk production.
The production of patterned laminated glass requires careful control of both glass fabrication and lamination. A typical manufacturing process includes the following stages:
The glass dimensions, pattern, thickness, shape, interlayer, edge treatment, drilling requirements, and intended application are reviewed before production.
The glass is cut according to the approved dimensions and drawings. Dimensional tolerances are controlled according to the agreed project requirements.
Edges can be ground or polished depending on the application, handling requirements, and final installation method.
Where required, holes, cut-outs, irregular shapes, and other precision processing can be completed according to approved drawings and manufacturing feasibility.
The glass surfaces are carefully cleaned and inspected before the lamination process to minimize contamination and visible defects.
The selected PVB, EVA, or SGP interlayer is positioned between compatible glass plies according to the specified glass make-up.
The assembled glass is processed using the appropriate lamination and bonding conditions for the selected interlayer system.
Finished panels are checked for dimensions, appearance, edges, lamination quality, and other agreed specifications.
The completed glass panels are separated and protected before shipment to reduce the risk of edge damage, surface scratching, or panel-to-panel contact during transportation.
The exact production parameters depend on the glass construction, interlayer, dimensions, and equipment. Final production should follow the applicable laminated-glass requirements and the technical specifications of the selected interlayer system.
Architectural projects rarely use a single standard glass size. Patterned Laminated Glass can therefore be configured according to project drawings and specific fabrication requirements, subject to technical feasibility.
Customers can specify:
· Glass type
· Glass thickness
· Interlayer type
· Pattern selection
· Pattern density
· Pattern coverage
· Glass dimensions
· Glass shape
· Edge treatment
· Drilled holes
· Cut-outs
· Other secondary processing requirements
Reference constructions include 3+0.38+3 mm, 4+0.38+4 mm, and 5+0.76+5 mm, while customized thickness combinations can be evaluated according to the project.
Reference sizes include 300×300 mm, 500×500 mm, 500×1000 mm, and 1000×1000 mm, with customized dimensions available according to requirements.
Grinding and polishing are available for edge finishing, while drilling and irregular shapes can also be processed when specified in the approved drawings.
For project orders, customers are encouraged to provide the intended application, panel dimensions, pattern requirements, installation conditions, and any relevant performance requirements. This allows the glass construction to be reviewed before production.

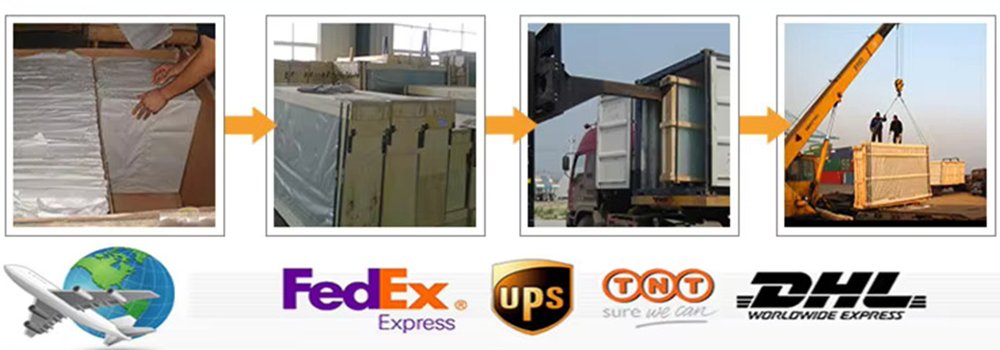

Proper packaging is important for protecting patterned laminated glass during handling, loading, and international transportation. Packaging methods are selected according to panel size, order quantity, transportation method, and destination.
For suitable small orders, express transportation such as DHL or FedEx can be considered. This option is generally appropriate when the package dimensions and weight are within the carrier’s requirements.
For larger quantities and architectural projects, ocean transportation is generally a more economical option. Glass can be packed in reinforced wooden cases designed for international transportation.
Typical packaging solutions include:
· Protective separation between glass panels
· Edge protection
· Moisture-resistant protection where required
· Export wooden cases
· Cartons for suitable small shipments
· Secure internal fixation to minimize movement
· External identification for project shipments
For larger projects, packaging and loading can also be coordinated according to panel dimensions and unloading requirements.
Destination customs clearance and onward delivery to a warehouse, office, or project location may be available as an additional service, subject to destination and transportation arrangements.
This depends on the glass construction and which surface contains the pattern. The textured side may feel different from the smooth side, and the visual effect can change with lighting and viewing direction. A sample is recommended when the two-sided appearance is important.
The textured surface may require more attention than smooth glass because dust, water marks, or residue can collect in the relief pattern. Cleaning should be carried out with a soft cloth or suitable non-abrasive cleaner. Harsh chemicals, abrasive pads, and sharp tools may damage the surface or affect its appearance.
No. Cutting, drilling, notching, and edge processing normally need to be completed before lamination. Any holes or cut-outs should therefore be shown on the approved drawings before production begins.
Panels should be stored vertically on suitable supports in a dry, ventilated area. They should be protected from direct water exposure, excessive humidity, impact, and contact with incompatible materials. The glass should not be stored flat for extended periods unless the packaging and support system are specifically designed for that purpose.
It can be used for suitable interior or architectural doors, provided that the glass thickness, weight, hardware, edge treatment, and installation system are properly matched. Door applications should be reviewed before production because hinges, locks, handles, and cut-outs affect the final glass design.
A quotation normally requires the glass make-up, pattern, quantity, panel dimensions, shape, edge treatment, holes or cut-outs, intended application, delivery destination, and preferred shipping method. Drawings or reference images are helpful when the project includes special processing.
The packaging should be checked for visible damage before unloading. After opening the case, inspect the panels for cracks, edge damage, scratches, lamination defects, incorrect dimensions, and processing errors. Any issue should be photographed and reported promptly, together with the packaging condition and shipping documents.
Other laminated glass solutions may also be considered according to the project’s application, safety requirements, structural conditions, and design objectives. Options may include printed or decorative laminated glass, safety laminated glass, SGP interlayer laminated glass, impact-resistant laminated glass, walkable laminated glass, skywalk laminated safety glass, and fence laminated glass. The appropriate product should be selected based on factors such as glass dimensions, support conditions, required load capacity, impact resistance, interlayer type, and applicable standards.
